Engine Lubrication System

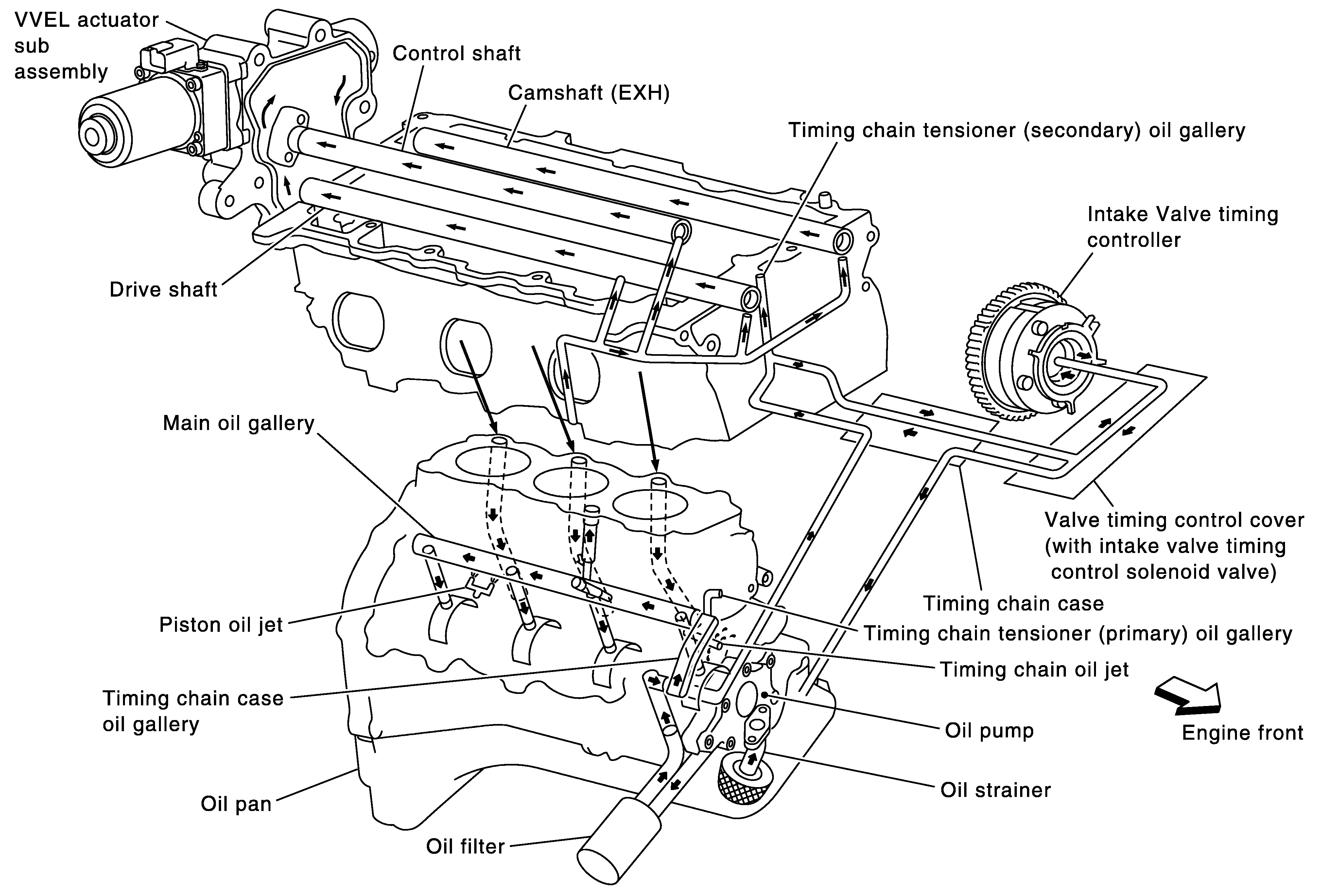

Fig 1: Identifying Engine Lubrication System Flow Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
