Component Function Check

1. Turn ignition switch OFF.
2. Disconnect ECT sensor harness connector.
3. Remove ECT sensor. Refer to "COMPONENT PARTS LOCATION ".
4. Check resistance between ECT sensor terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES: GO TO 2.

NO: Proceed to "DIAGNOSIS PROCEDURE ".

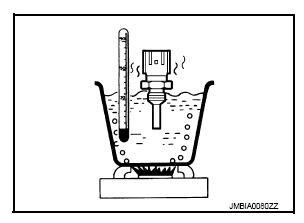

Fig 1: Checking Engine Coolant Temperature Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".

Is the inspection result normal?

YES: INSPECTION END

NO: Proceed to "DIAGNOSIS PROCEDURE ".
