Engine Control System: Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

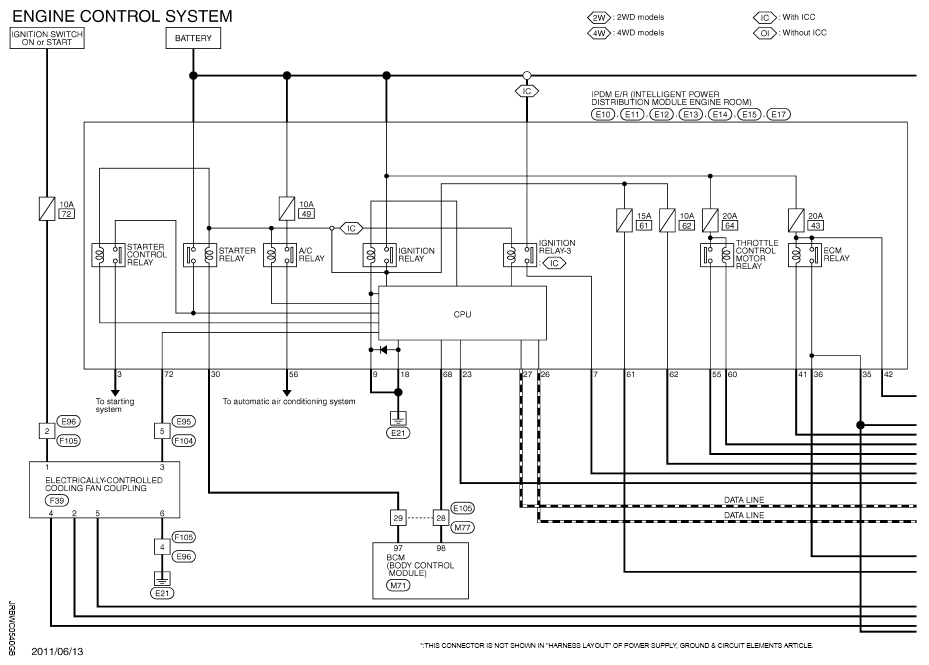

Fig 1: Engine Control System - Wiring Diagram (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

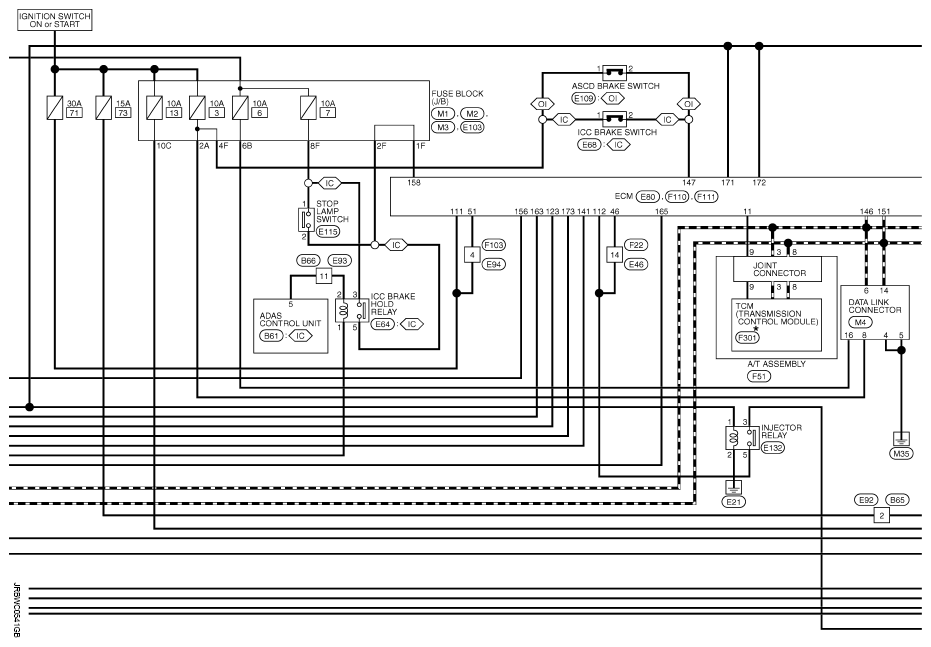

Fig 2: Engine Control System - Wiring Diagram (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

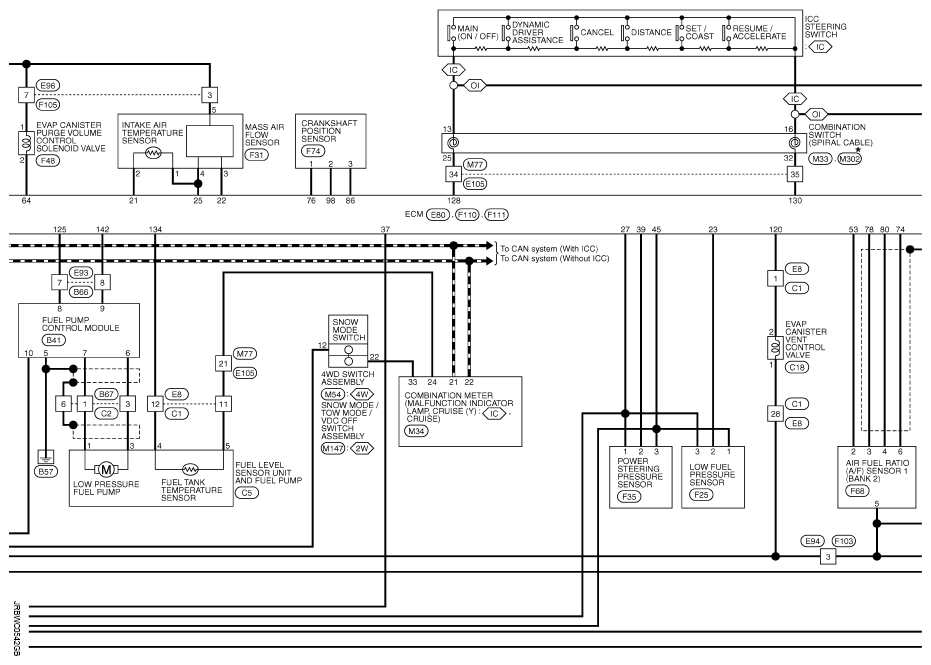

Fig 3: Engine Control System - Wiring Diagram (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

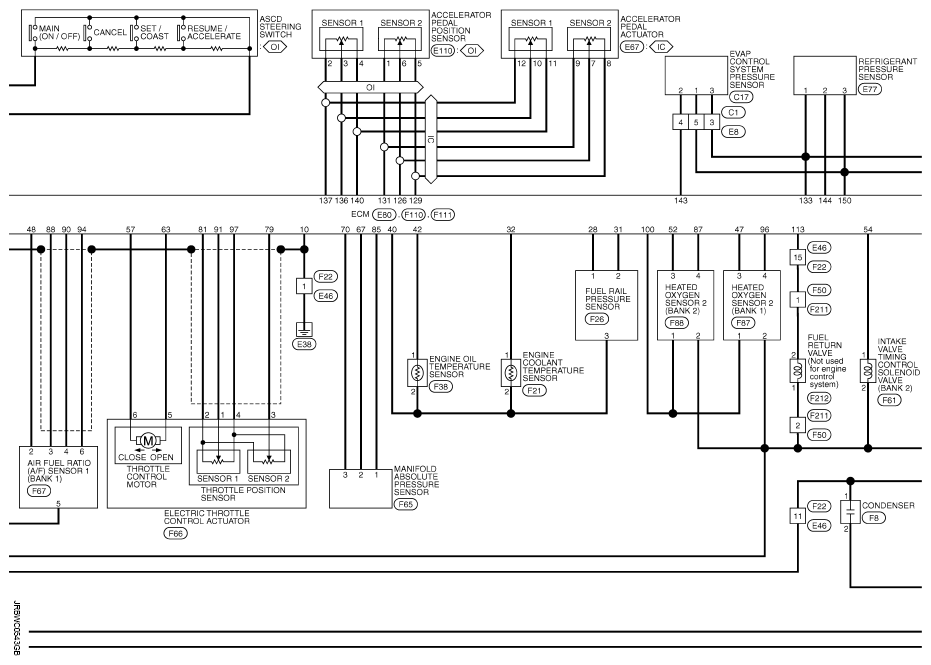

Fig 4: Engine Control System - Wiring Diagram (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

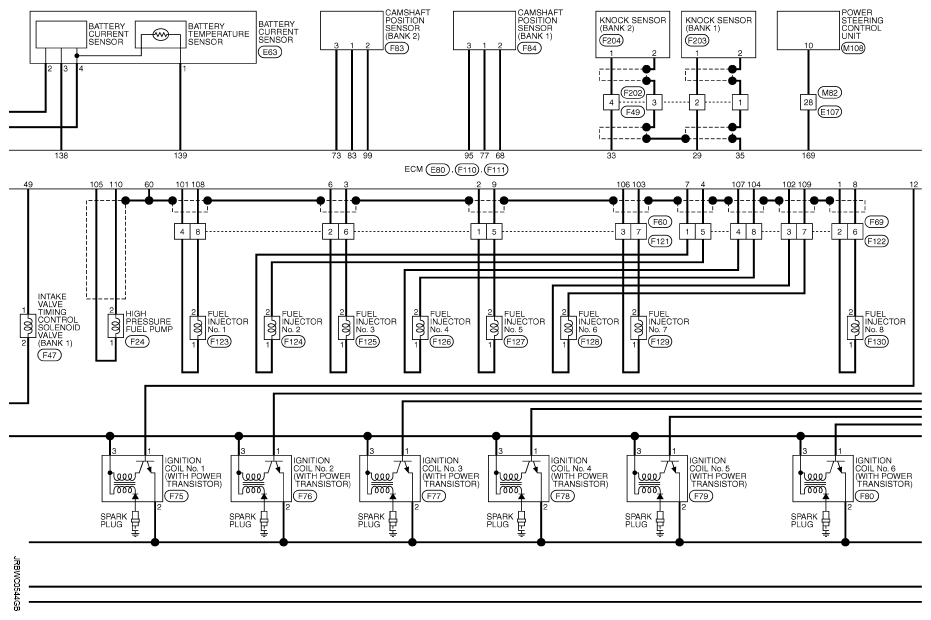

Fig 5: Engine Control System - Wiring Diagram (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

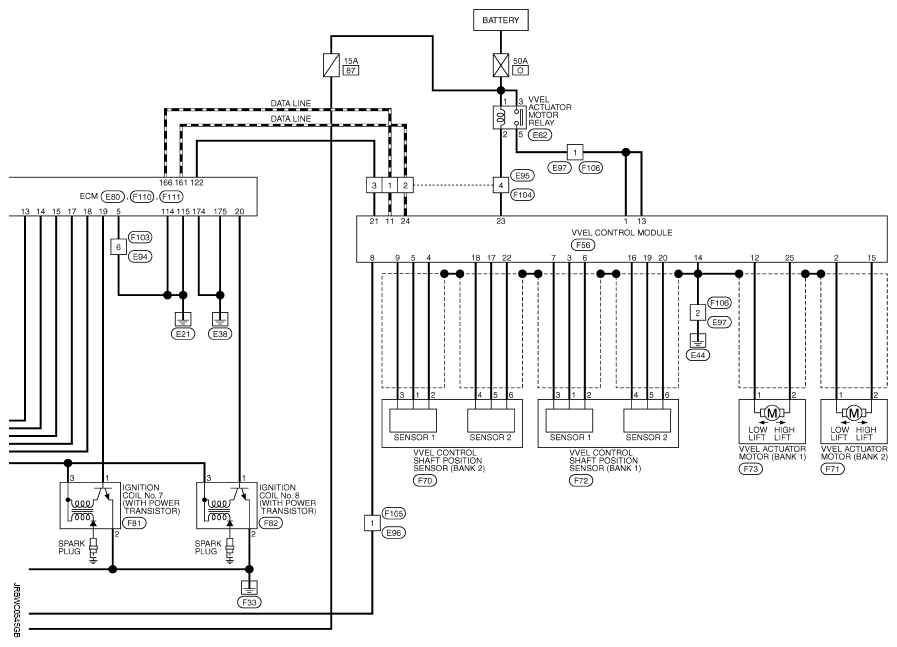

Fig 6: Engine Control System - Wiring Diagram (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
