Engine Compartment

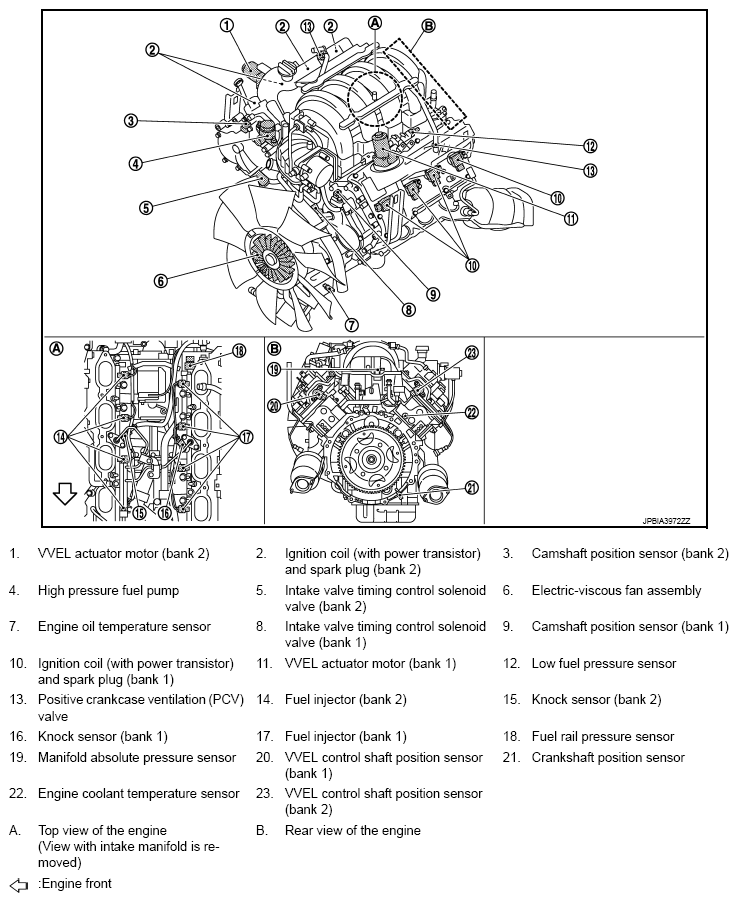

Fig 1: Engine Control System Component Parts Location (Engine Compartment)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
