Electrically-controlled cooling fan coupling

Electrically-controlled cooling fan coupling is integrated with a fan coupling, fan coupling driver, and fan speed sensor, mounted to the fan pulley, and actuated by the drive belt to rotate the cooling fan at a speed suitable for a driving condition.

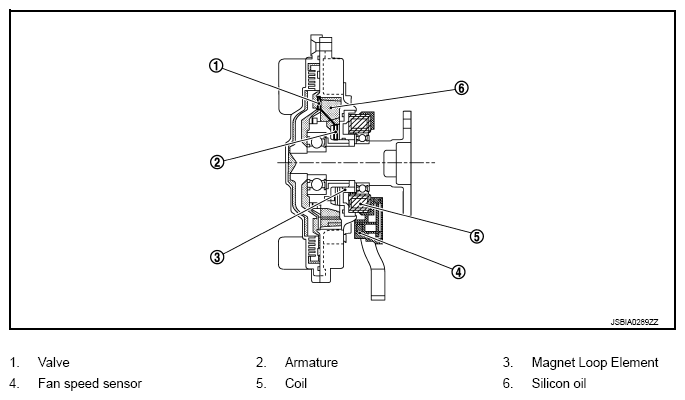

Fig 1: Identifying Electrically-Controlled Cooling Fan Coupling And Related Components
G08260033Courtesy of NISSAN NORTH AMERICA, INC.
