PERMANENT DTC STATUS Mode

How to display permanent DTC status

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Select "PERMANENT DTC STATUS" in "DTC&SRT CONFIRMATION" mode with CONSULT.
NOTE: Permanent DTCs stored in ECM memory are displayed on the CONSULT screen to show if a driving pattern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).

CAUTION: Since the "PERMANENT DTC STATUS" screen displays the previous trip information, repeat the following twice to update the information: "Ignition switch OFF", "Wait for more than 10 seconds" and "Ignition switch ON".

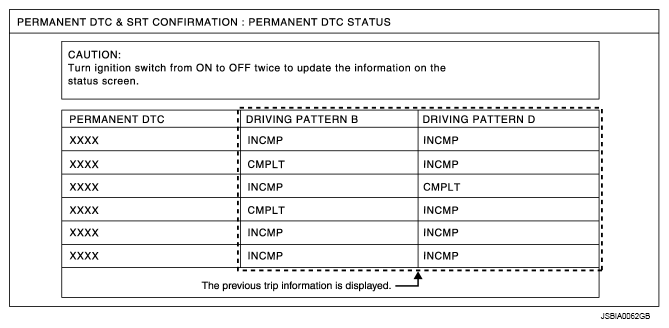

Fig 1: Permanent DTC Status Chart

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: This mode is not used in regions that permanent DTCs are not regulated by law.
