System - Basic Engine Control System

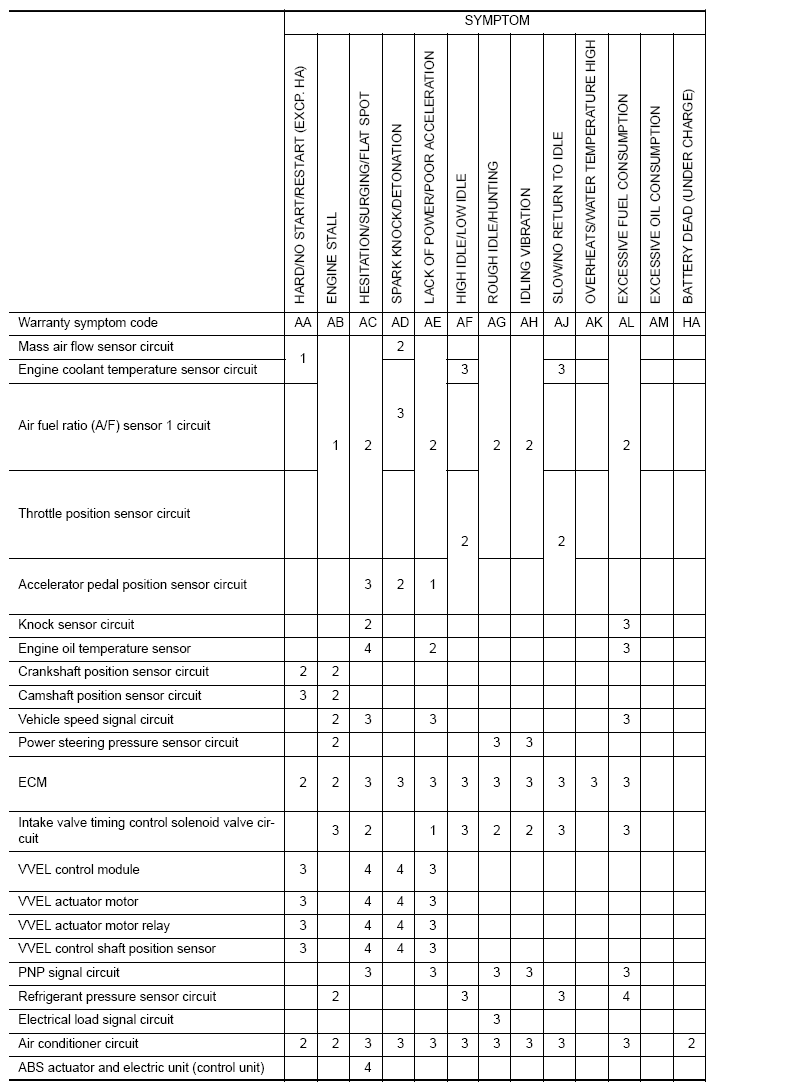

Fig 1: Engine Control System Symptoms Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

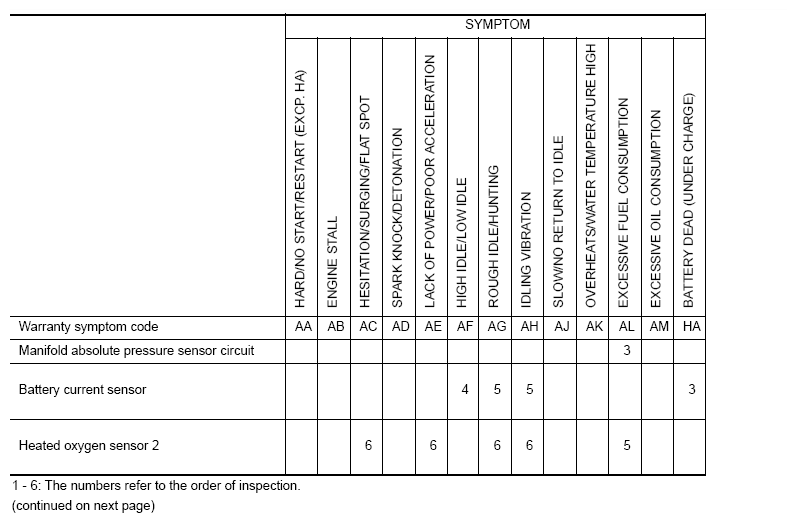

Fig 2: Engine Control System Symptoms Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

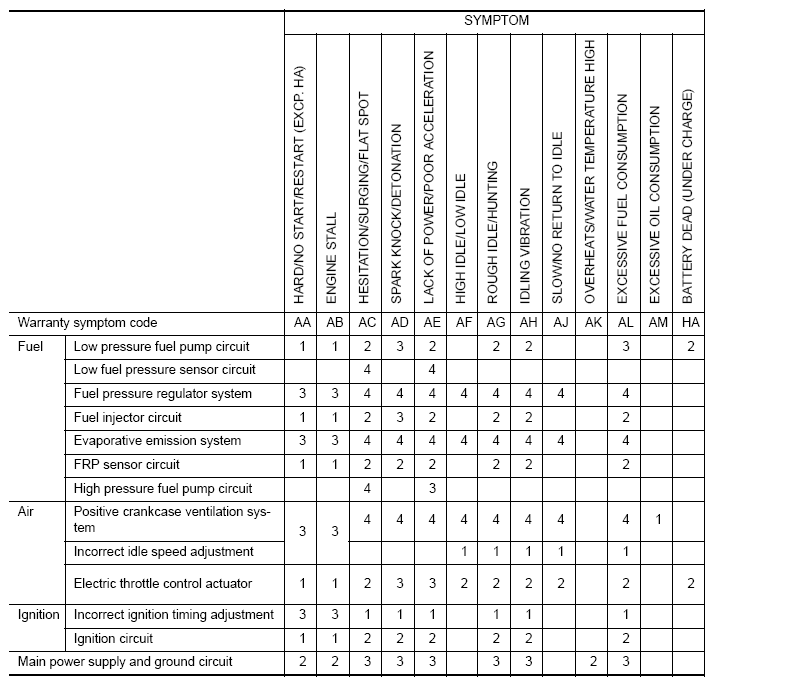

Fig 3: Engine Control System Symptoms Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
