Component Parts Location

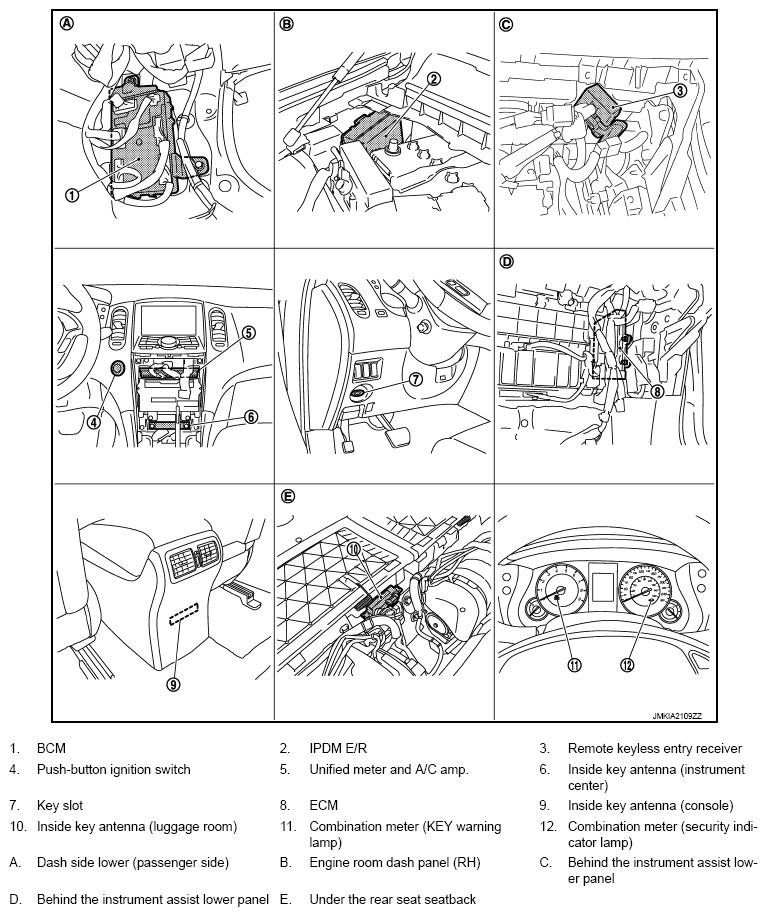

Fig 1: Intelligent Key System/Engine Start Function Component Parts Location (1 Of 2)
G08996383Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System/Engine Start Function Component Parts Location (2 Of 2)
G08996384Courtesy of NISSAN NORTH AMERICA, INC.
