Exploded View: Disassembly

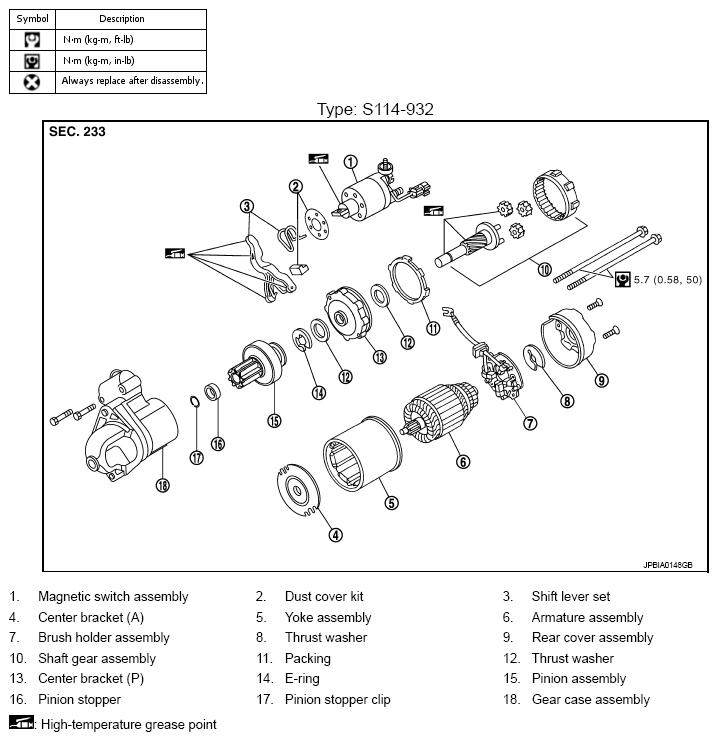

Fig 1: Disassembled View Of Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.

NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
