Component Parts Location

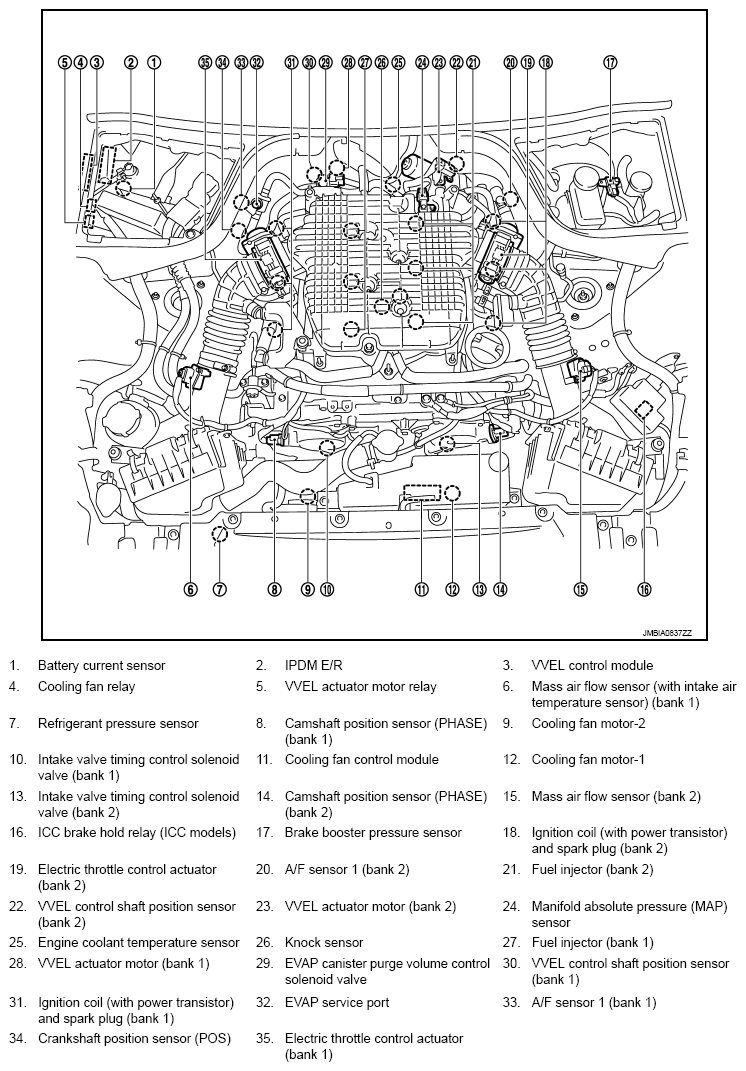

Fig 1: Evaporative Emission System Component Parts Location (1 Of 21)

G08985811

Courtesy of NISSAN NORTH AMERICA, INC.

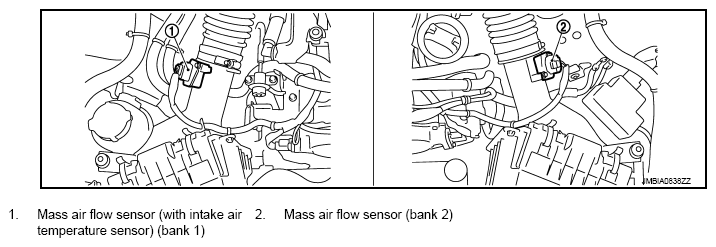

Fig 2: Evaporative Emission System Component Parts Location (2 Of 21)

G08985812

Courtesy of NISSAN NORTH AMERICA, INC.

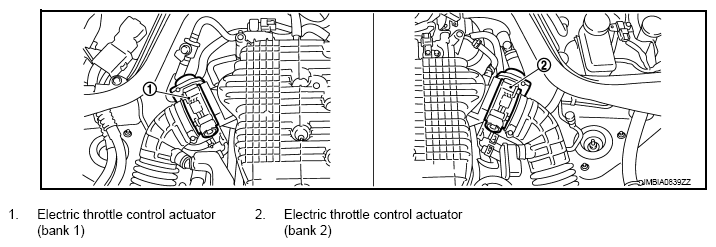

Fig 3: Evaporative Emission System Component Parts Location (3 Of 21)

G08985813

Courtesy of NISSAN NORTH AMERICA, INC.

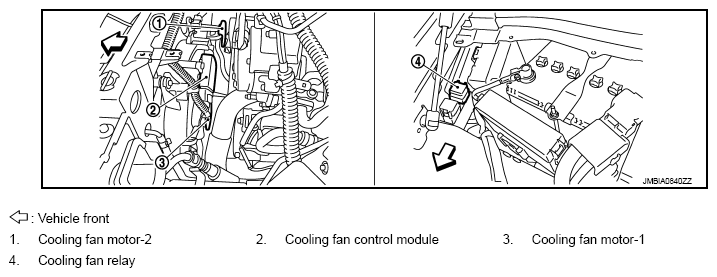

Fig 4: Evaporative Emission System Component Parts Location (4 Of 21)

G08985814

Courtesy of NISSAN NORTH AMERICA, INC.

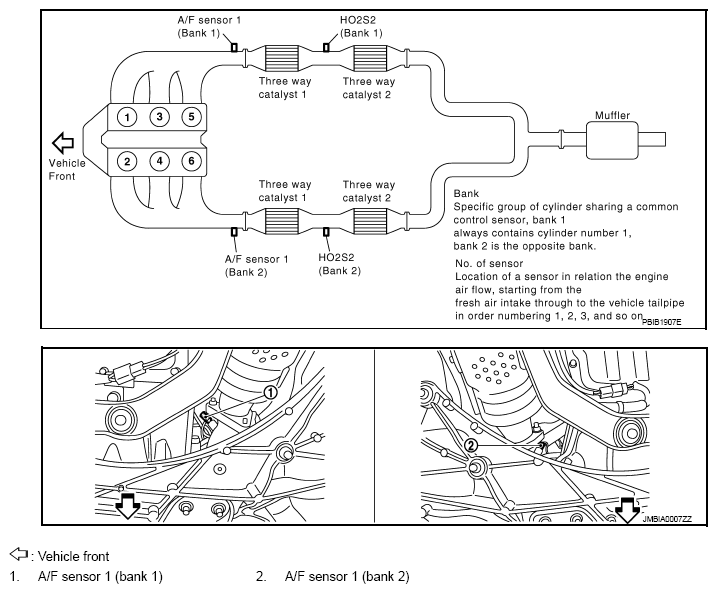

Fig 5: Evaporative Emission System Component Parts Location (5 Of 21)

G08985815

Courtesy of NISSAN NORTH AMERICA, INC.

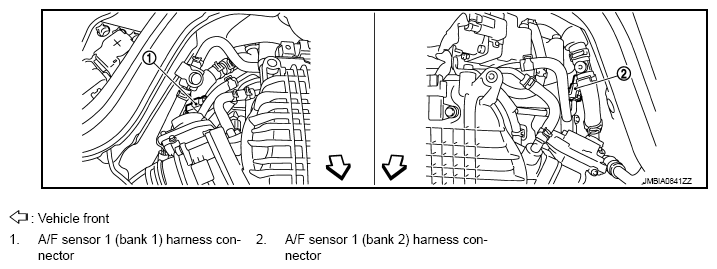

Fig 6: Evaporative Emission System Component Parts Location (6 Of 21)

G08985816

Courtesy of NISSAN NORTH AMERICA, INC.

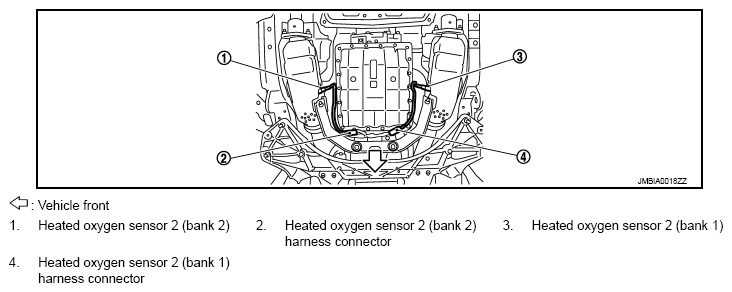

Fig 7: Evaporative Emission System Component Parts Location (7 Of 21)

G08985817

Courtesy of NISSAN NORTH AMERICA, INC.

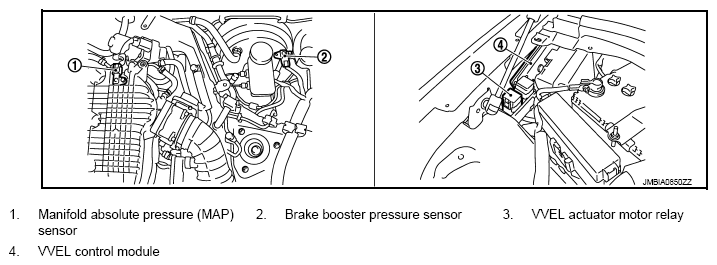

Fig 8: Evaporative Emission System Component Parts Location (8 Of 21)

G08985818

Courtesy of NISSAN NORTH AMERICA, INC.

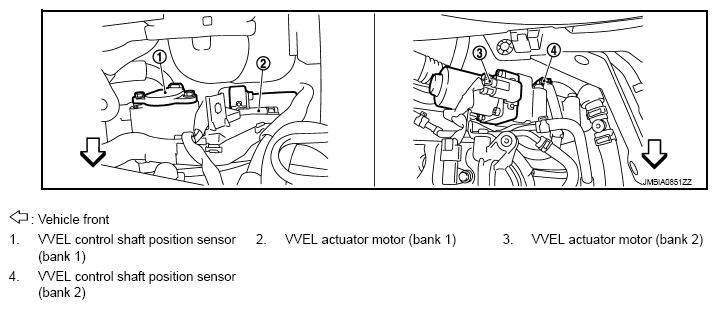

Fig 9: Evaporative Emission System Component Parts Location (9 Of 21)

G08985819

Courtesy of NISSAN NORTH AMERICA, INC.

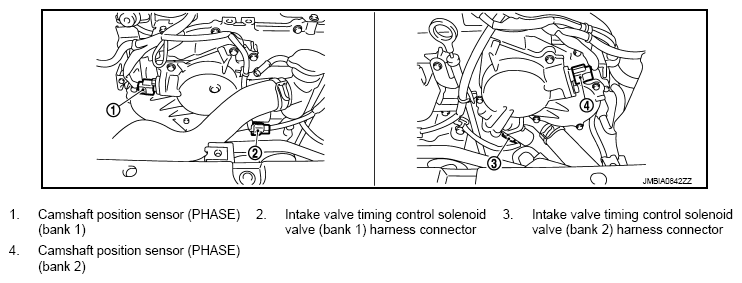

Fig 10: Evaporative Emission System Component Parts Location (10 Of 21)

G08985820

Courtesy of NISSAN NORTH AMERICA, INC.

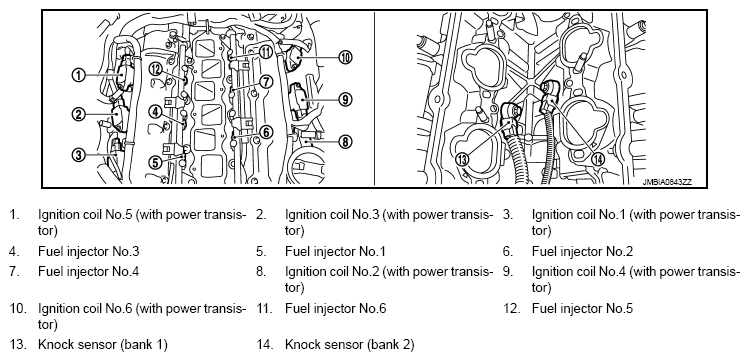

Fig 11: Evaporative Emission System Component Parts Location (11 Of 21)

G08985821

Courtesy of NISSAN NORTH AMERICA, INC.

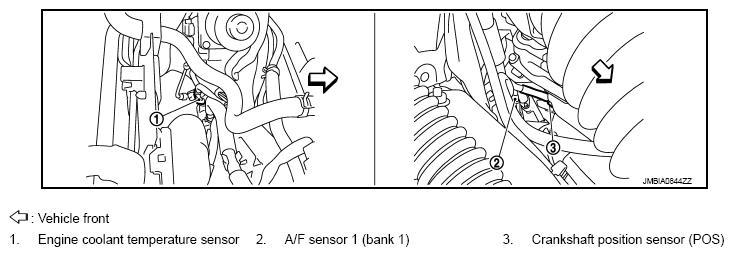

Fig 12: Evaporative Emission System Component Parts Location (12 Of 21)

G08985822

Courtesy of NISSAN NORTH AMERICA, INC.

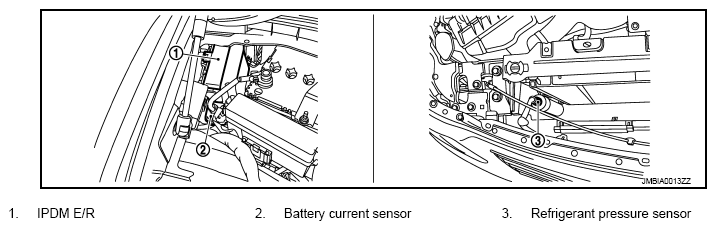

Fig 13: Evaporative Emission System Component Parts Location (13 Of 21)

G08985823

Courtesy of NISSAN NORTH AMERICA, INC.

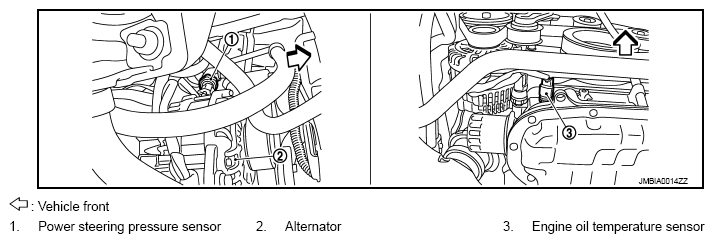

Fig 14: Evaporative Emission System Component Parts Location (14 Of 21)

G08985824

Courtesy of NISSAN NORTH AMERICA, INC.

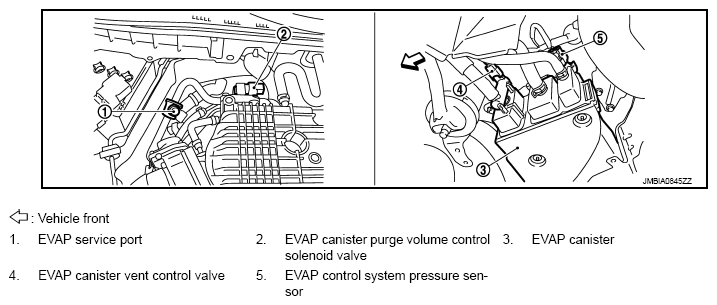

Fig 15: Evaporative Emission System Component Parts Location (15 Of 21)

G08985825

Courtesy of NISSAN NORTH AMERICA, INC.

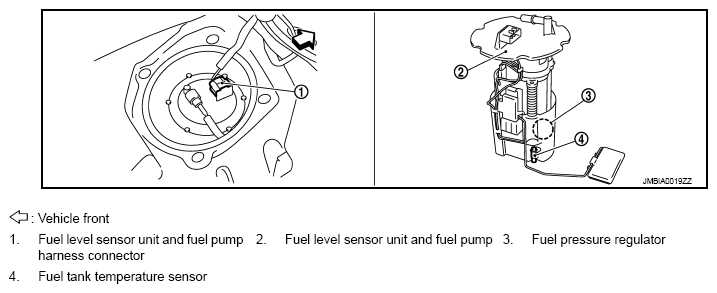

Fig 16: Evaporative Emission System Component Parts Location (16 Of 21)

G08985826

Courtesy of NISSAN NORTH AMERICA, INC.

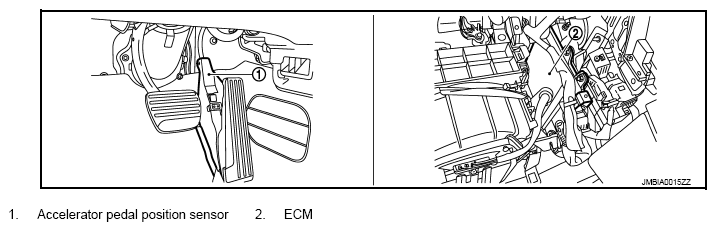

Fig 17: Evaporative Emission System Component Parts Location (17 Of 21)

G08985827

Courtesy of NISSAN NORTH AMERICA, INC.

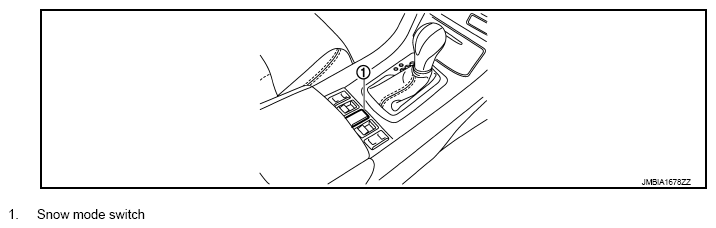

Fig 18: Evaporative Emission System Component Parts Location (18 Of 21)

G08985828

Courtesy of NISSAN NORTH AMERICA, INC.

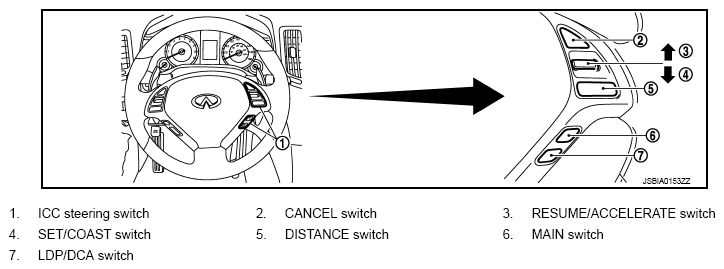

Fig 19: Evaporative Emission System Component Parts Location (19 Of 21)

G08985829

Courtesy of NISSAN NORTH AMERICA, INC.

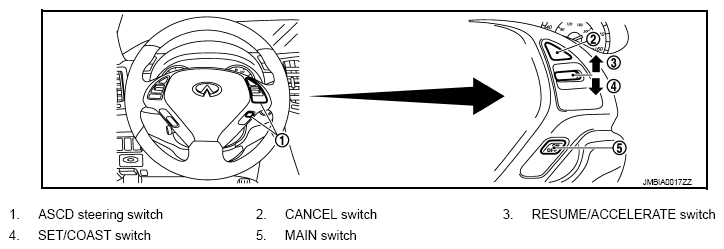

Fig 20: Evaporative Emission System Component Parts Location (20 Of 21)

G08985830

Courtesy of NISSAN NORTH AMERICA, INC.

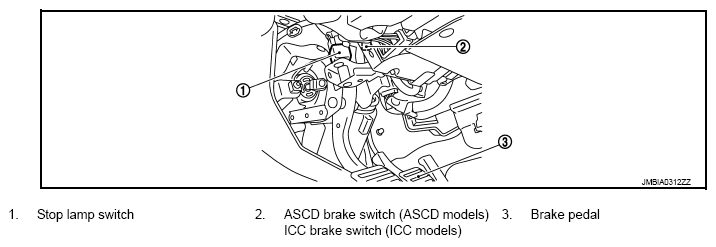

Fig 21: Evaporative Emission System Component Parts Location (21 Of 21)

G08985831

Courtesy of NISSAN NORTH AMERICA, INC.
