System - Basic Engine Control System

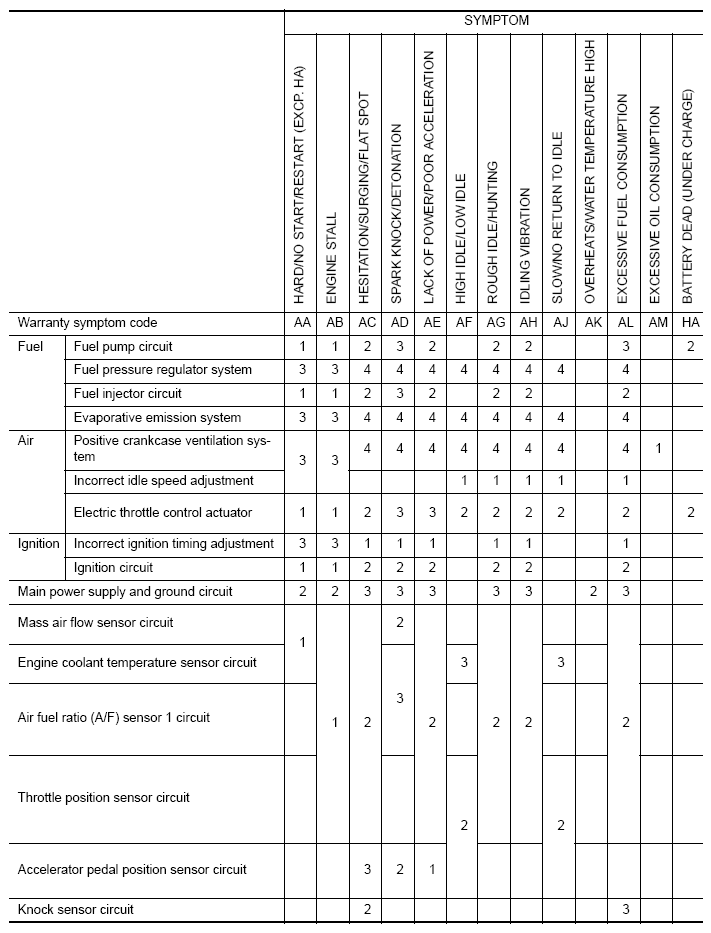

Fig 1: Engine Control System Symptoms Chart (Basic Engine; 1 Of 2)
G08986117Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Engine Control System Symptoms Chart (Basic Engine; 2 Of 2)
G08986118Courtesy of NISSAN NORTH AMERICA, INC.
