Component Function Check

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.
  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: "DIAGNOSIS PROCEDURE ".

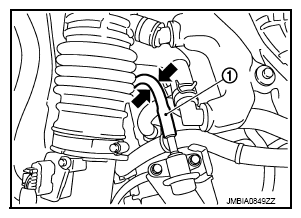

  Fig 1: Locating Fuel Feed Hose Pinch Position
  Courtesy of NISSAN NORTH AMERICA, INC.
