Component Parts Location

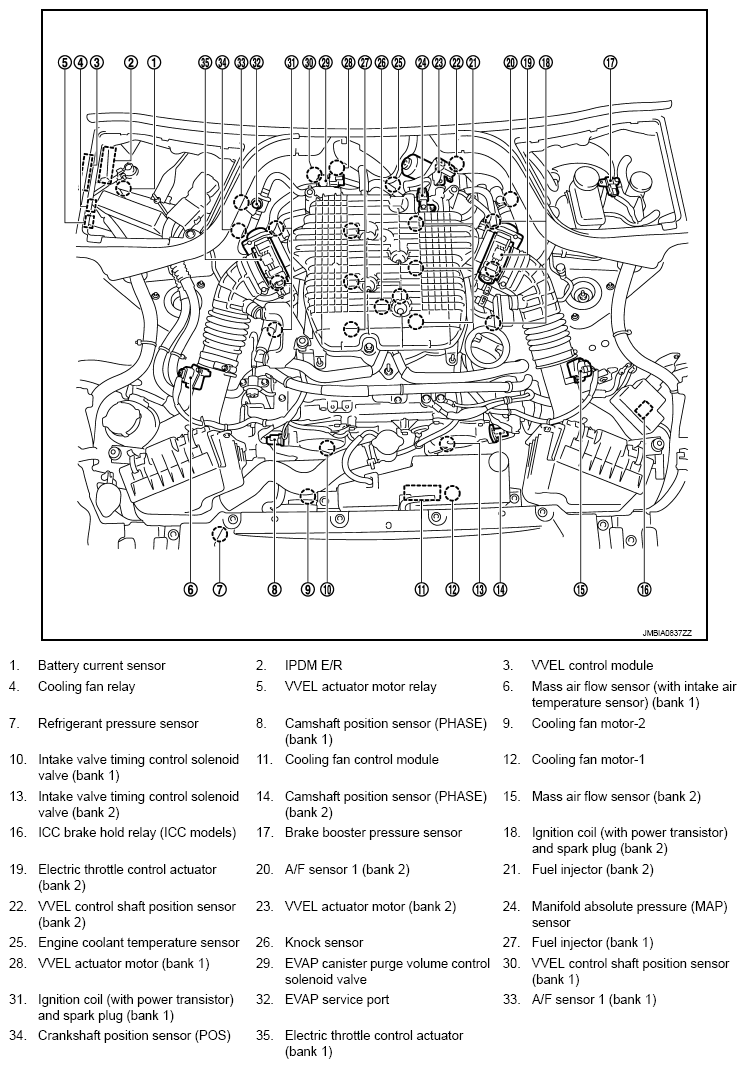

Fig 1: Automatic Speed Control Device (ASCD) System Component Parts Location (1 Of 21)

G08985764

Courtesy of NISSAN NORTH AMERICA, INC.

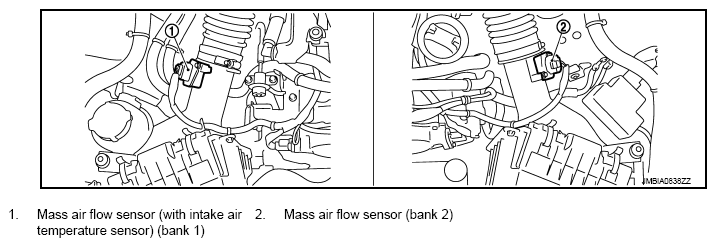

Fig 2: Automatic Speed Control Device (ASCD) System Component Parts Location (2 Of 21)

G08985765

Courtesy of NISSAN NORTH AMERICA, INC.

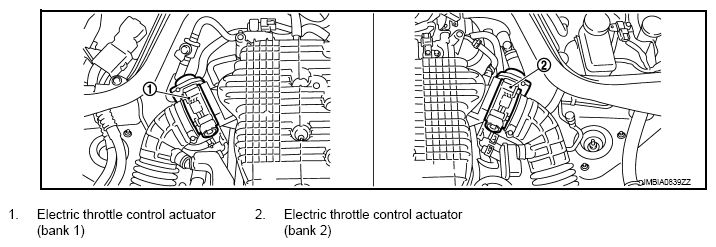

Fig 3: Automatic Speed Control Device (ASCD) System Component Parts Location (3 Of 21)

G08985766

Courtesy of NISSAN NORTH AMERICA, INC.

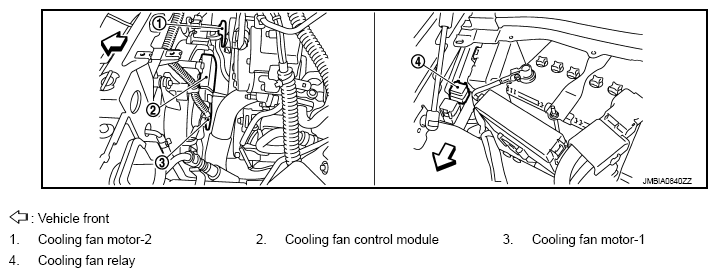

Fig 4: Automatic Speed Control Device (ASCD) System Component Parts Location (4 Of 21)

G08985767

Courtesy of NISSAN NORTH AMERICA, INC.

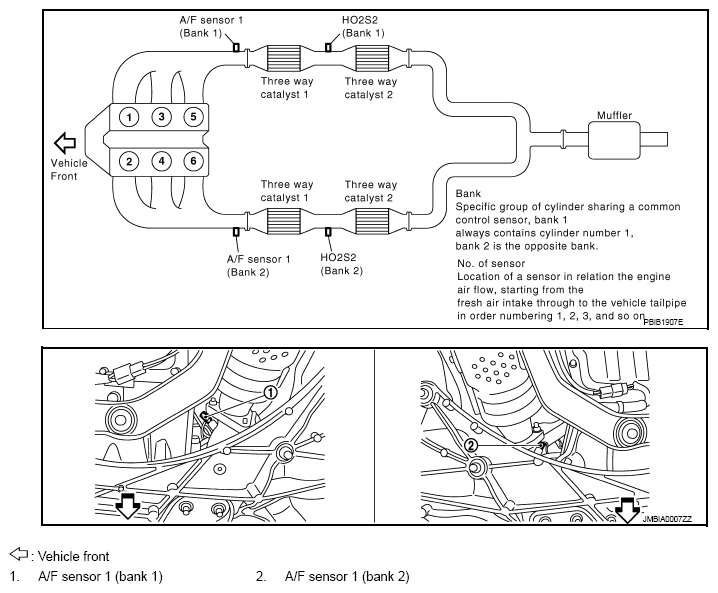

Fig 5: Automatic Speed Control Device (ASCD) System Component Parts Location (5 Of 21)

G08985768

Courtesy of NISSAN NORTH AMERICA, INC.

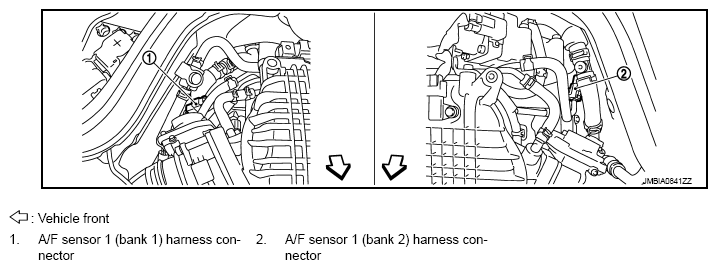

Fig 6: Automatic Speed Control Device (ASCD) System Component Parts Location (6 Of 21)

G08985769

Courtesy of NISSAN NORTH AMERICA, INC.

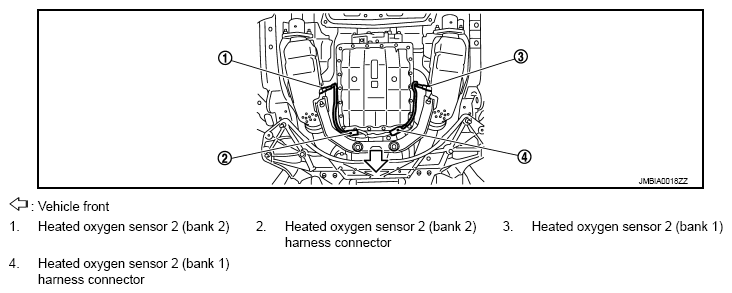

Fig 7: Automatic Speed Control Device (ASCD) System Component Parts Location (7 Of 21)

G08985770

Courtesy of NISSAN NORTH AMERICA, INC.

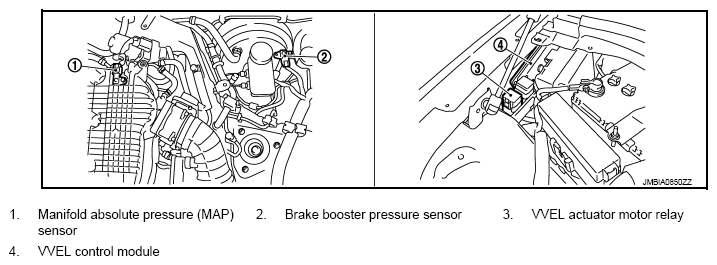

Fig 8: Automatic Speed Control Device (ASCD) System Component Parts Location (8 Of 21)

G08985771

Courtesy of NISSAN NORTH AMERICA, INC.

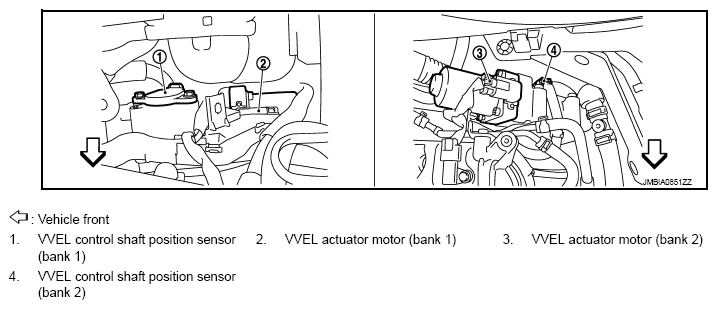

Fig 9: Automatic Speed Control Device (ASCD) System Component Parts Location (9 Of 21)

G08985772

Courtesy of NISSAN NORTH AMERICA, INC.

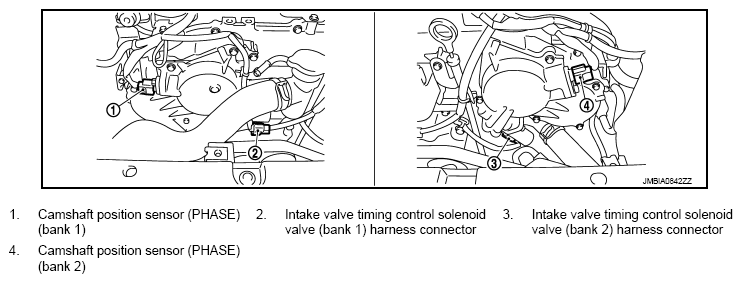

Fig 10: Automatic Speed Control Device (ASCD) System Component Parts Location (10 Of 21)

G08985773

Courtesy of NISSAN NORTH AMERICA, INC.

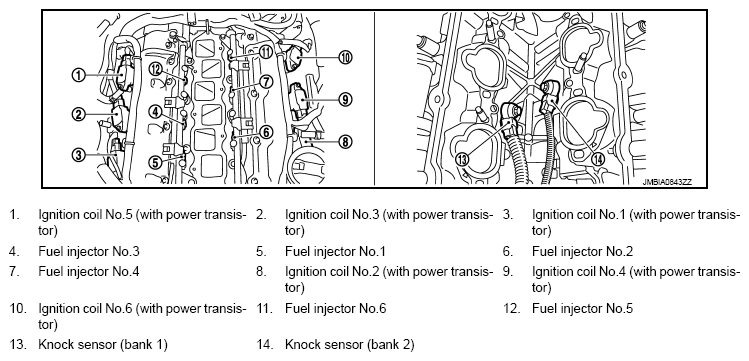

Fig 11: Automatic Speed Control Device (ASCD) System Component Parts Location (11 Of 21)

G08985774

Courtesy of NISSAN NORTH AMERICA, INC.

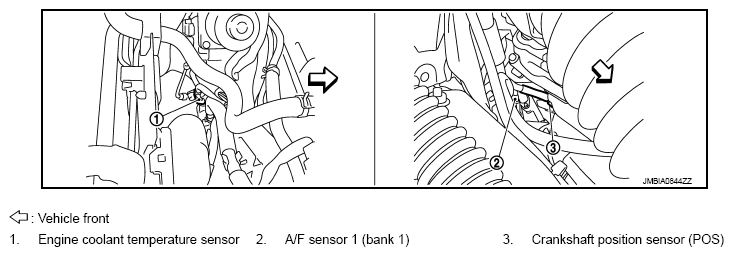

Fig 12: Automatic Speed Control Device (ASCD) System Component Parts Location (12 Of 21)

G08985775

Courtesy of NISSAN NORTH AMERICA, INC.

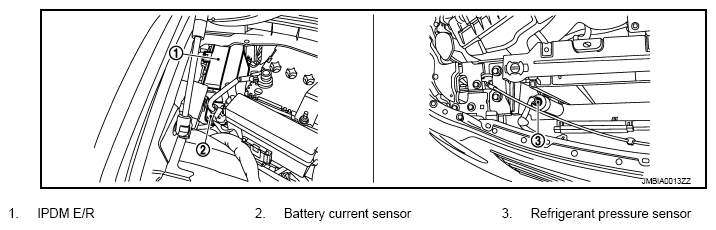

Fig 13: Automatic Speed Control Device (ASCD) System Component Parts Location (13 Of 21)

G08985776

Courtesy of NISSAN NORTH AMERICA, INC.

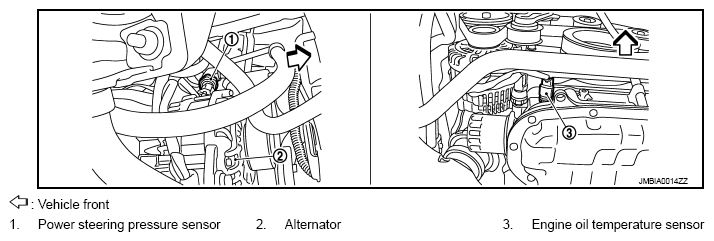

Fig 14: Automatic Speed Control Device (ASCD) System Component Parts Location (14 Of 21)

G08985777

Courtesy of NISSAN NORTH AMERICA, INC.

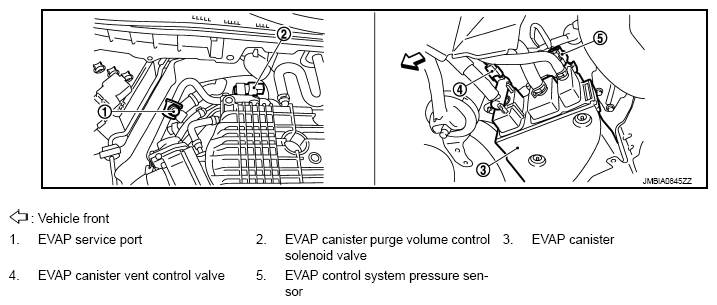

Fig 15: Automatic Speed Control Device (ASCD) System Component Parts Location (15 Of 21)

G08985778

Courtesy of NISSAN NORTH AMERICA, INC.

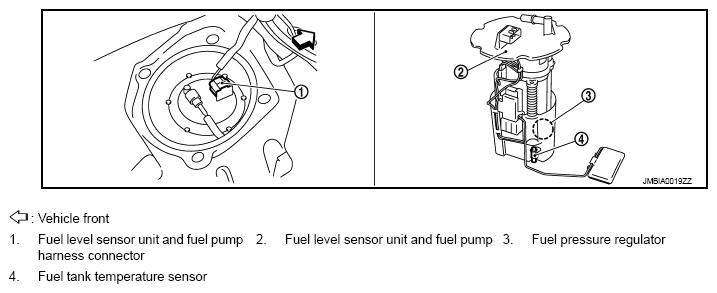

Fig 16: Automatic Speed Control Device (ASCD) System Component Parts Location (16 Of 21)

G08985779

Courtesy of NISSAN NORTH AMERICA, INC.

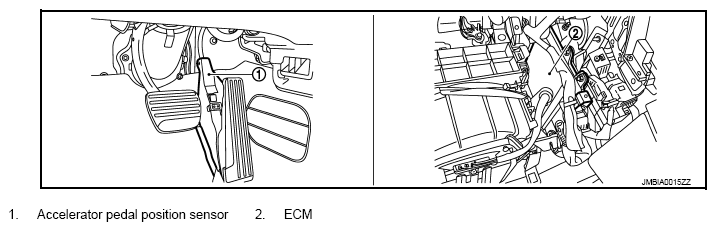

Fig 17: Automatic Speed Control Device (ASCD) System Component Parts Location (17 Of 21)

G08985780

Courtesy of NISSAN NORTH AMERICA, INC.

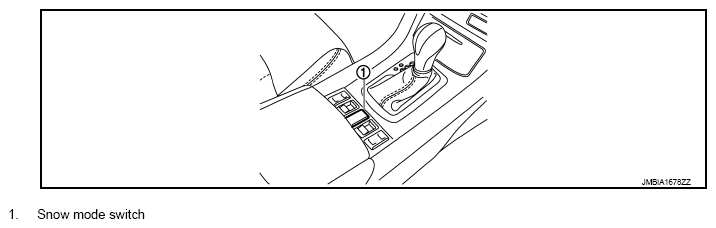

Fig 18: Automatic Speed Control Device (ASCD) System Component Parts Location (18 Of 21)

G08985781

Courtesy of NISSAN NORTH AMERICA, INC.

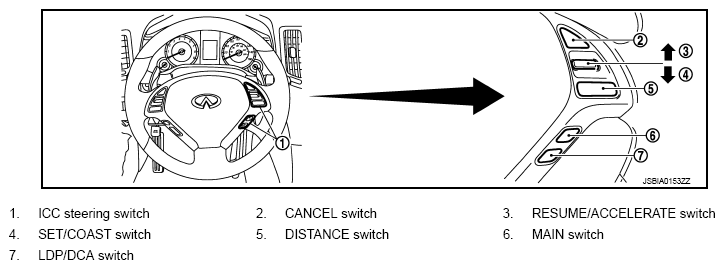

Fig 19: Automatic Speed Control Device (ASCD) System Component Parts Location (19 Of 21)

G08985782

Courtesy of NISSAN NORTH AMERICA, INC.

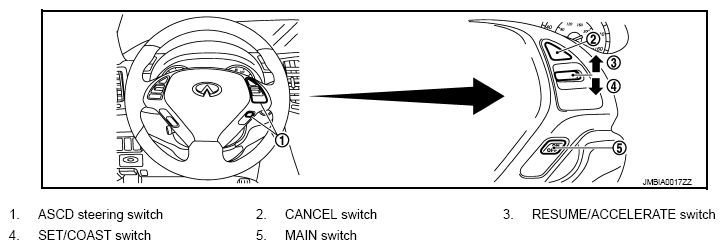

Fig 20: Automatic Speed Control Device (ASCD) System Component Parts Location (20 Of 21)

G08985783

Courtesy of NISSAN NORTH AMERICA, INC.

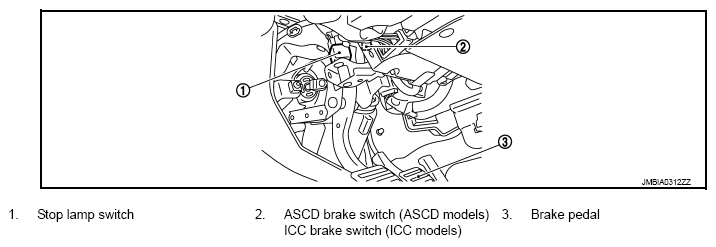

Fig 21: Automatic Speed Control Device (ASCD) System Component Parts Location (21 Of 21)

G08985784

Courtesy of NISSAN NORTH AMERICA, INC.
