Component Parts Location

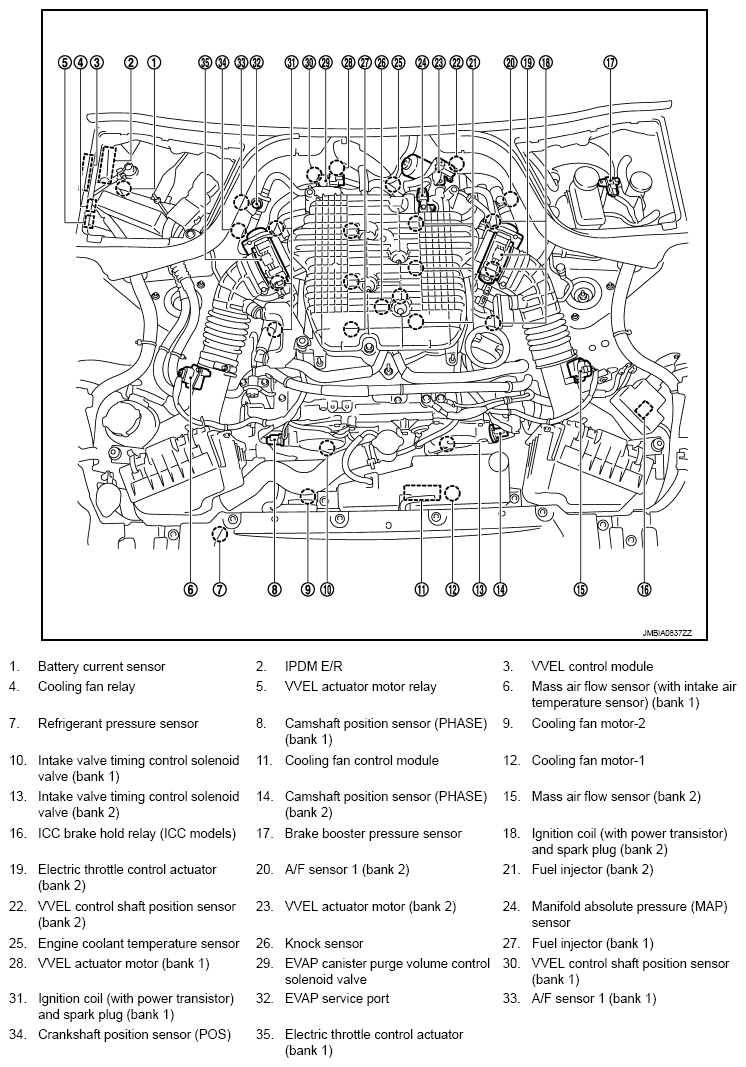

Fig 1: Electric Ignition System Component Parts Location (1 Of 21)

G08985720

Courtesy of NISSAN NORTH AMERICA, INC.

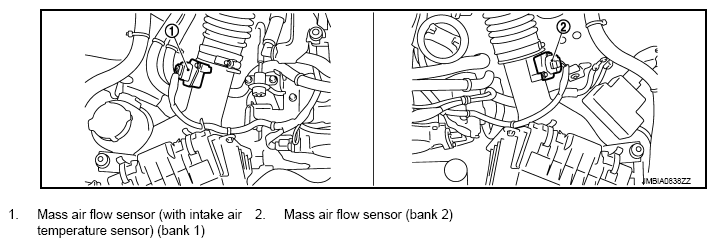

Fig 2: Electric Ignition System Component Parts Location (2 Of 21)

G08985721

Courtesy of NISSAN NORTH AMERICA, INC.

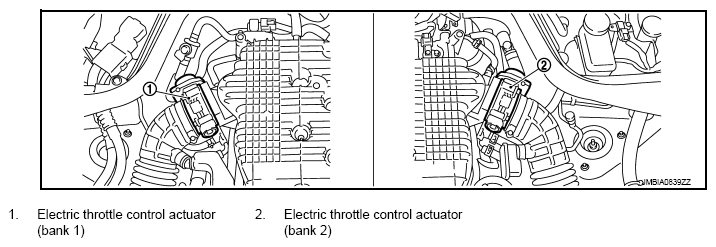

Fig 3: Electric Ignition System Component Parts Location (3 Of 21)

G08985722

Courtesy of NISSAN NORTH AMERICA, INC.

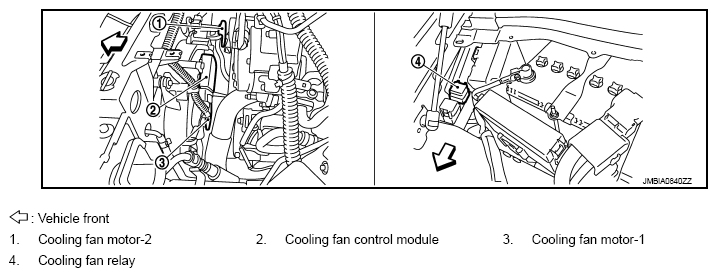

Fig 4: Electric Ignition System Component Parts Location (4 Of 21)

G08985723

Courtesy of NISSAN NORTH AMERICA, INC.

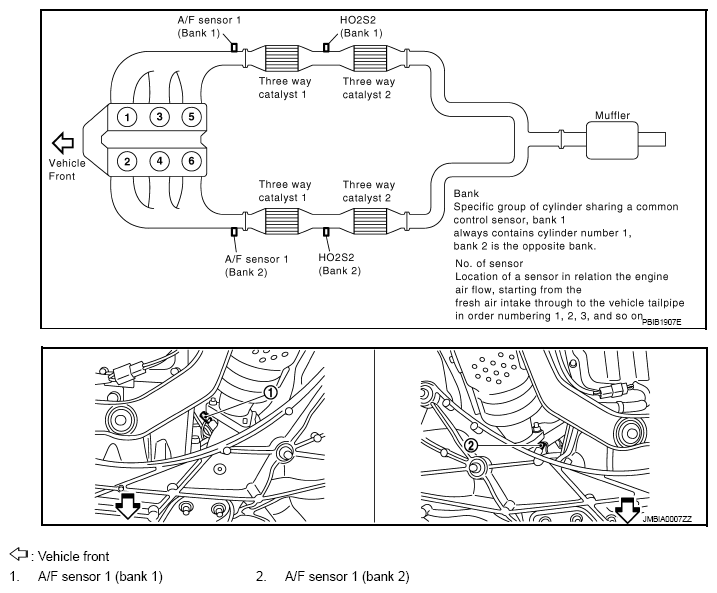

Fig 5: Electric Ignition System Component Parts Location (5 Of 21)

G08985724

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Electric Ignition System Component Parts Location (6 Of 21)

G08985725

Courtesy of NISSAN NORTH AMERICA, INC.

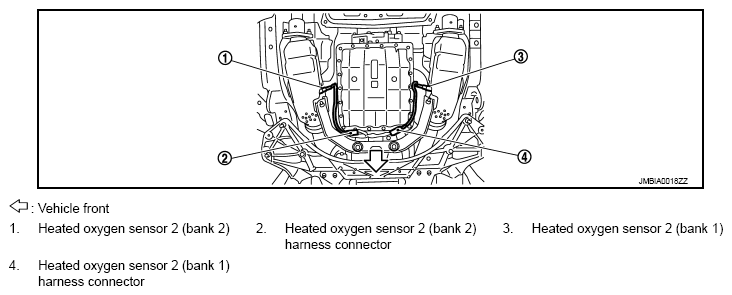

Fig 7: Electric Ignition System Component Parts Location (7 Of 21)

G08985726

Courtesy of NISSAN NORTH AMERICA, INC.

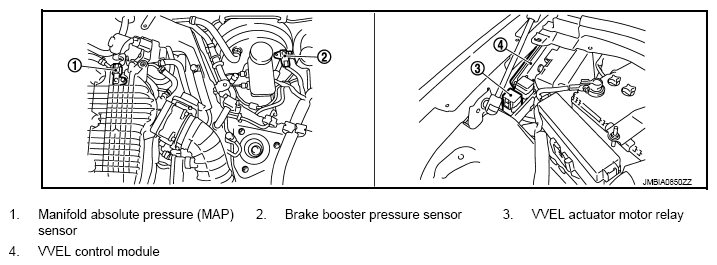

Fig 8: Electric Ignition System Component Parts Location (8 Of 21)

G08985727

Courtesy of NISSAN NORTH AMERICA, INC.

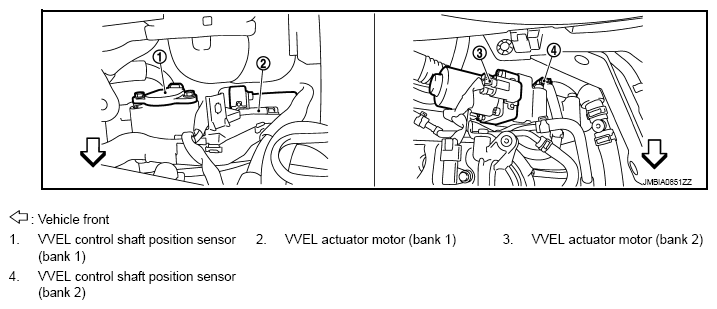

Fig 9: Electric Ignition System Component Parts Location (9 Of 21)

G08985728

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Electric Ignition System Component Parts Location (10 Of 21)

G08985729

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Electric Ignition System Component Parts Location (11 Of 21)

G08985730

Courtesy of NISSAN NORTH AMERICA, INC.

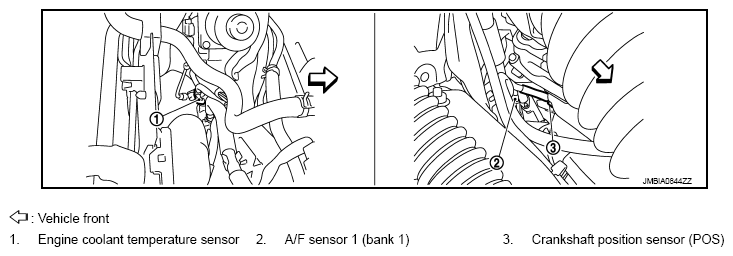

Fig 12: Electric Ignition System Component Parts Location (12 Of 21)

G08985731

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Electric Ignition System Component Parts Location (13 Of 21)

G08985732

Courtesy of NISSAN NORTH AMERICA, INC.

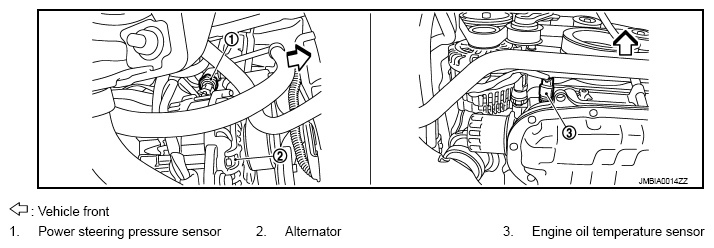

Fig 14: Electric Ignition System Component Parts Location (14 Of 21)

G08985733

Courtesy of NISSAN NORTH AMERICA, INC.

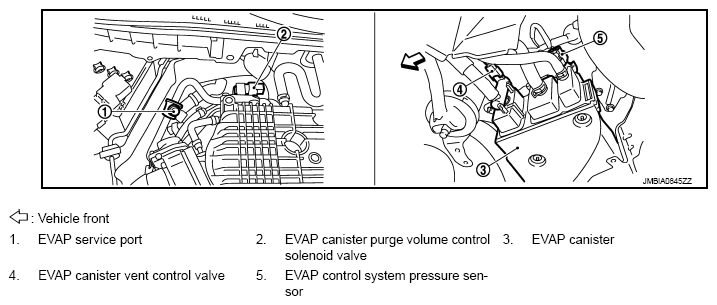

Fig 15: Electric Ignition System Component Parts Location (15 Of 21)

G08985734

Courtesy of NISSAN NORTH AMERICA, INC.

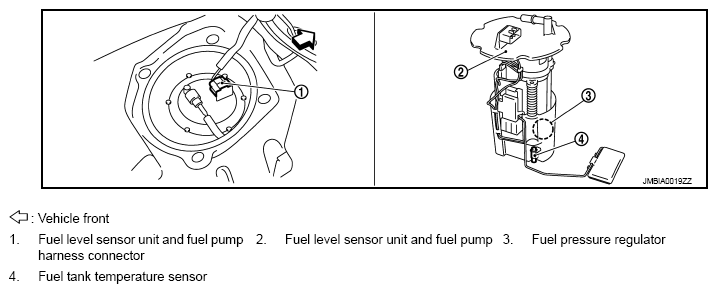

Fig 16: Electric Ignition System Component Parts Location (16 Of 21)

G08985735

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Electric Ignition System Component Parts Location (17 Of 21)

G08985736

Courtesy of NISSAN NORTH AMERICA, INC.

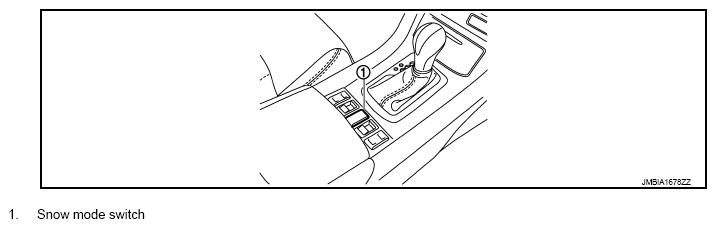

Fig 18: Electric Ignition System Component Parts Location (18 Of 21)

G08985737

Courtesy of NISSAN NORTH AMERICA, INC.

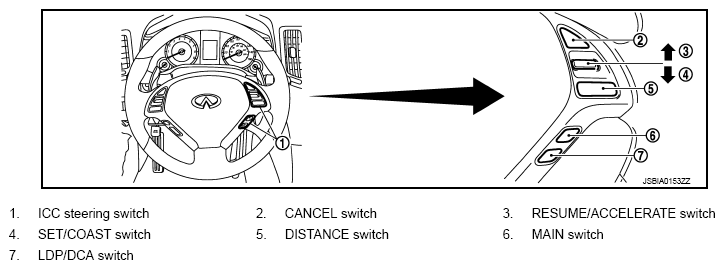

Fig 19: Electric Ignition System Component Parts Location (19 Of 21)

G08985738

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Electric Ignition System Component Parts Location (20 Of 21)

G08985739

Courtesy of NISSAN NORTH AMERICA, INC.

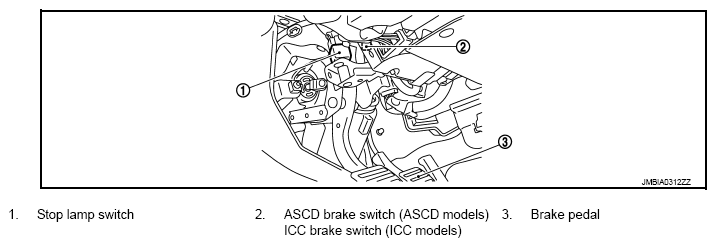

Fig 21: Electric Ignition System Component Parts Location (21 Of 21)

G08985740

Courtesy of NISSAN NORTH AMERICA, INC.
