Without Consult

  1. To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port.
  2. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP system.
  3. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to 2.76 kPa (0.014 to 0.028 kg/cm2 , 0.2 to 0.4 psi).
  4. Remove EVAP service port adapter and hose with pressure pump.

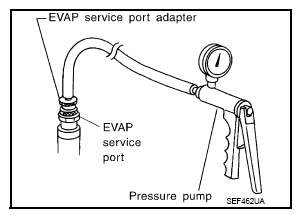

    Fig 1: Installing EVAP Service Port Adapter And Pressure Pump To EVAP Service Port
    G09001035Courtesy of NISSAN NORTH AMERICA, INC.
  5. Locate the leak using a leak detector. Refer to "SYSTEM DIAGRAM ".

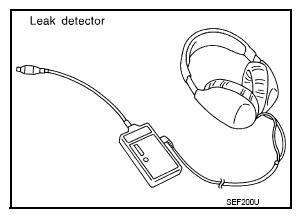

    Fig 2: Identifying EVAP Leak Detector
    G09001036Courtesy of NISSAN NORTH AMERICA, INC.
