Component Parts Location

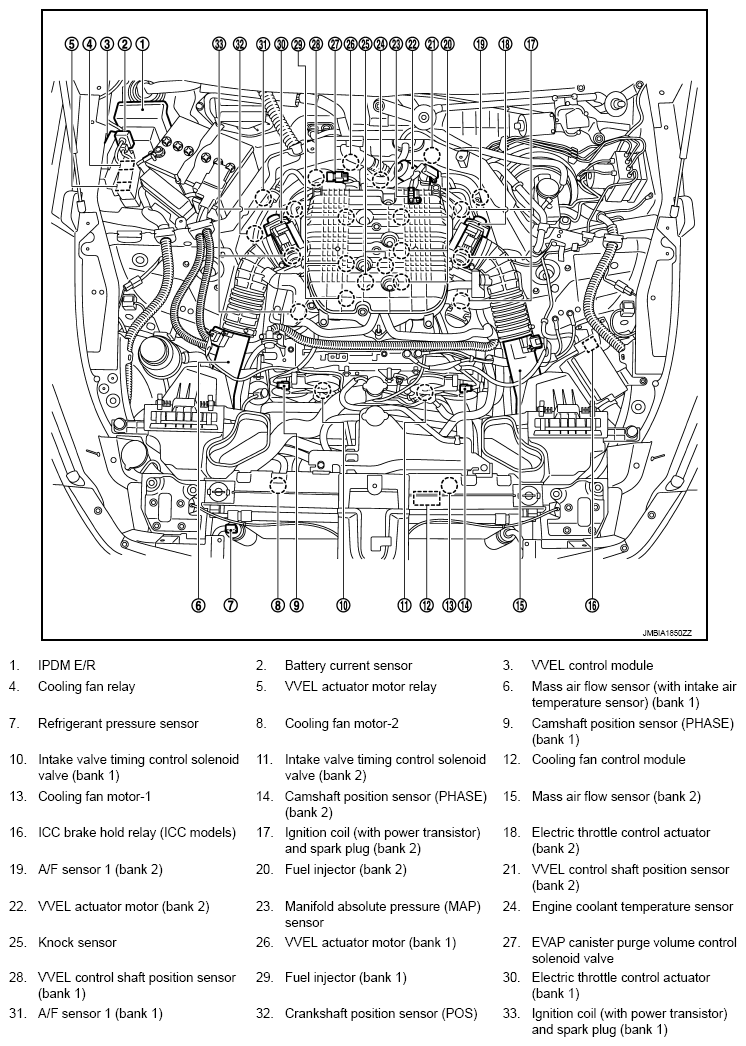

Fig 1: Automatic Speed Control Device (ASCD) System Components Location (1 Of 21)

G09000665

Courtesy of NISSAN NORTH AMERICA, INC.

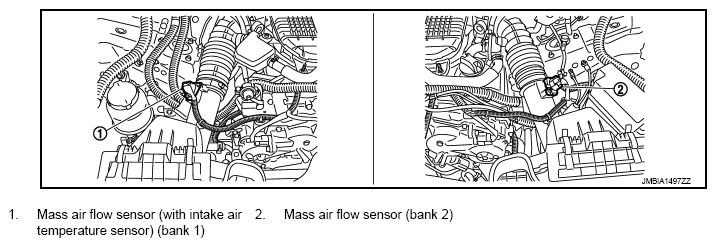

Fig 2: Automatic Speed Control Device (ASCD) System Components Location (2 Of 21)

G09000666

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Automatic Speed Control Device (ASCD) System Components Location (3 Of 21)

G09000667

Courtesy of NISSAN NORTH AMERICA, INC.

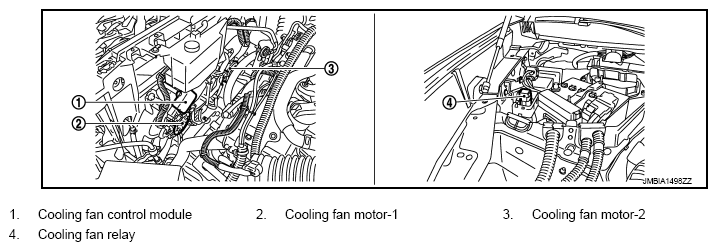

Fig 4: Automatic Speed Control Device (ASCD) System Components Location (4 Of 21)

G09000668

Courtesy of NISSAN NORTH AMERICA, INC.

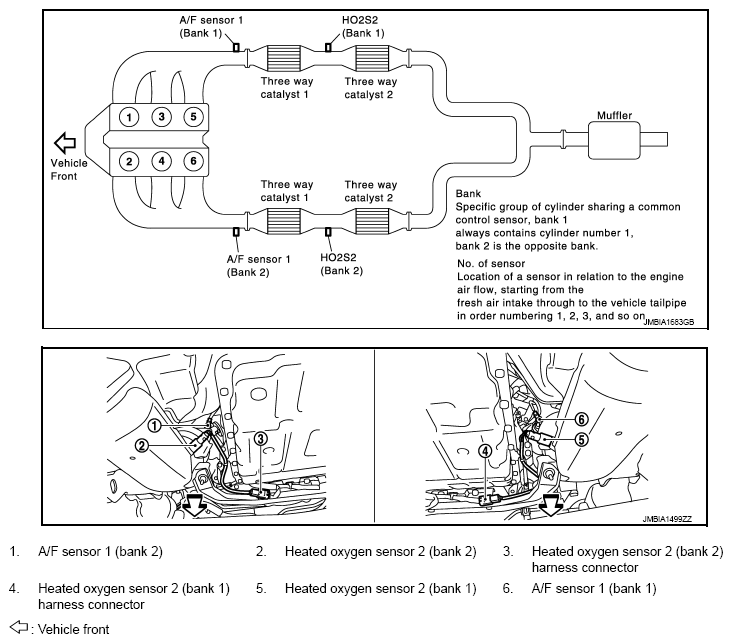

Fig 5: Automatic Speed Control Device (ASCD) System Components Location (5 Of 21)

G09000669

Courtesy of NISSAN NORTH AMERICA, INC.

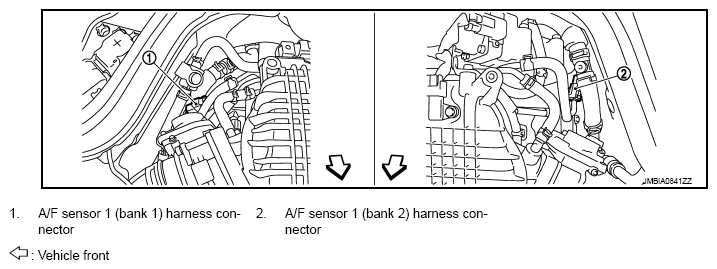

Fig 6: Automatic Speed Control Device (ASCD) System Components Location (6 Of 21)

G09000670

Courtesy of NISSAN NORTH AMERICA, INC.

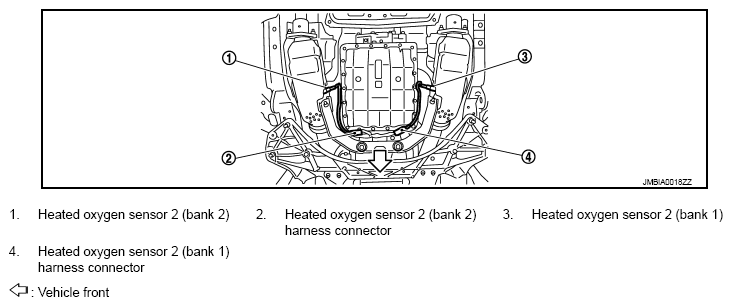

Fig 7: Automatic Speed Control Device (ASCD) System Components Location (7 Of 21)

G09000671

Courtesy of NISSAN NORTH AMERICA, INC.

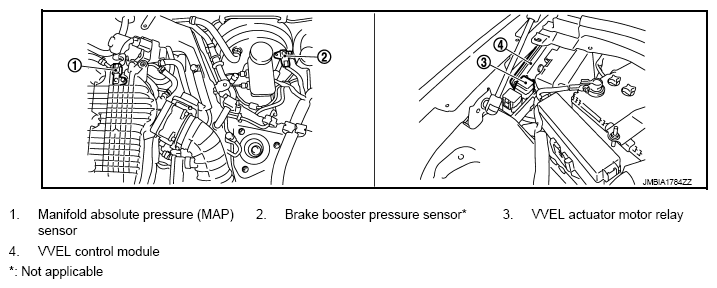

Fig 8: Automatic Speed Control Device (ASCD) System Components Location (8 Of 21)

G09000672

Courtesy of NISSAN NORTH AMERICA, INC.

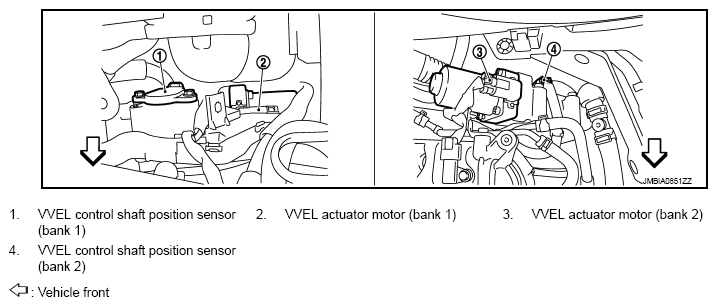

Fig 9: Automatic Speed Control Device (ASCD) System Components Location (9 Of 21)

G09000673

Courtesy of NISSAN NORTH AMERICA, INC.

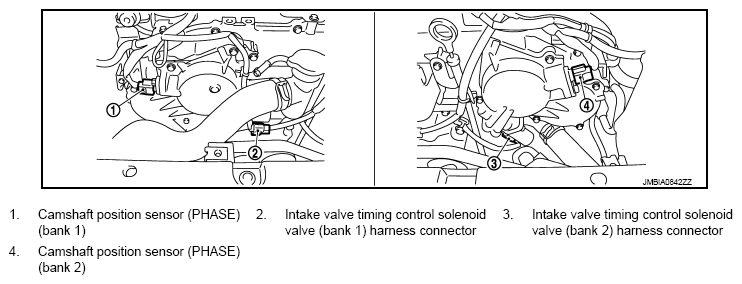

Fig 10: Automatic Speed Control Device (ASCD) System Components Location (10 Of 21)

G09000674

Courtesy of NISSAN NORTH AMERICA, INC.

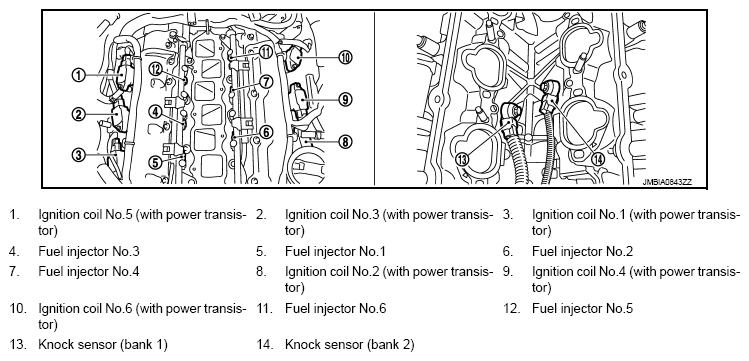

Fig 11: Automatic Speed Control Device (ASCD) System Components Location (11 Of 21)

G09000675

Courtesy of NISSAN NORTH AMERICA, INC.

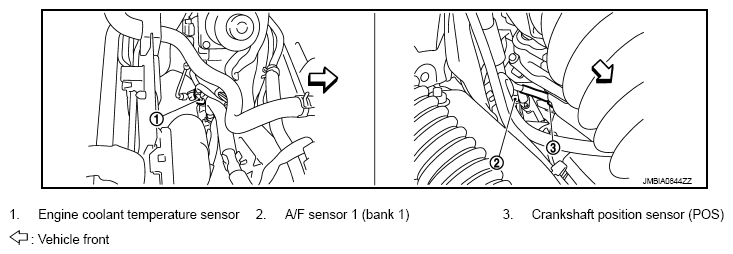

Fig 12: Automatic Speed Control Device (ASCD) System Components Location (12 Of 21)

G09000676

Courtesy of NISSAN NORTH AMERICA, INC.

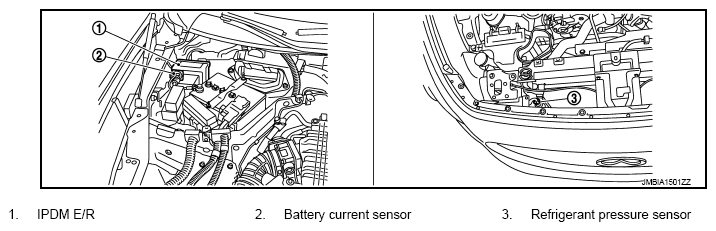

Fig 13: Automatic Speed Control Device (ASCD) System Components Location (13 Of 21)

G09000677

Courtesy of NISSAN NORTH AMERICA, INC.

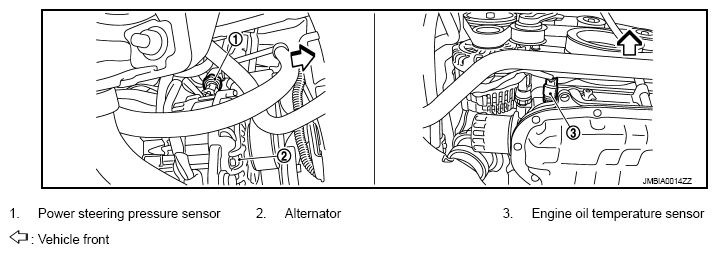

Fig 14: Automatic Speed Control Device (ASCD) System Components Location (14 Of 21)

G09000678

Courtesy of NISSAN NORTH AMERICA, INC.

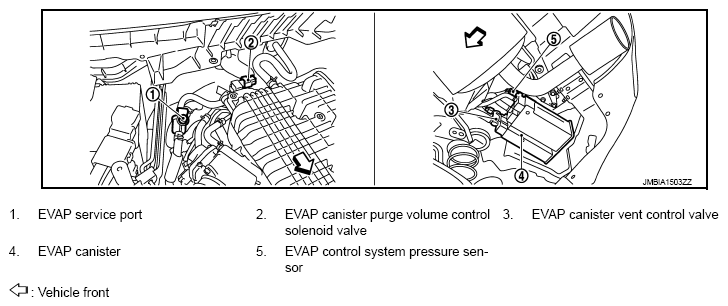

Fig 15: Automatic Speed Control Device (ASCD) System Components Location (15 Of 21)

G09000679

Courtesy of NISSAN NORTH AMERICA, INC.

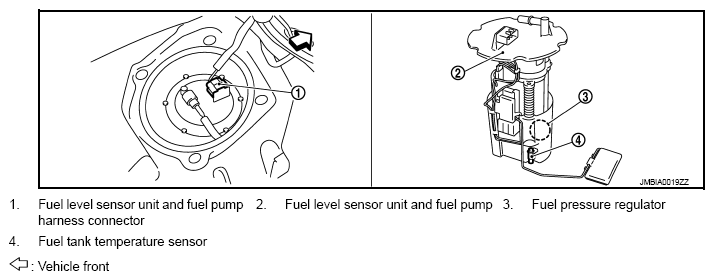

Fig 16: Automatic Speed Control Device (ASCD) System Components Location (16 Of 21)

G09000680

Courtesy of NISSAN NORTH AMERICA, INC.

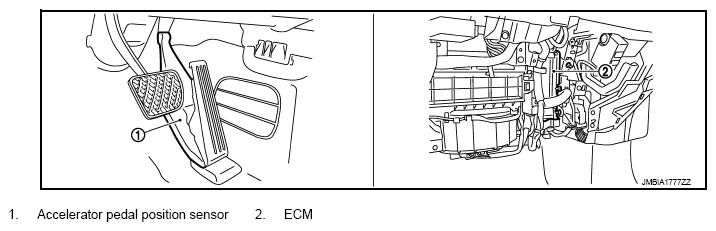

Fig 17: Automatic Speed Control Device (ASCD) System Components Location (17 Of 21)

G09000681

Courtesy of NISSAN NORTH AMERICA, INC.

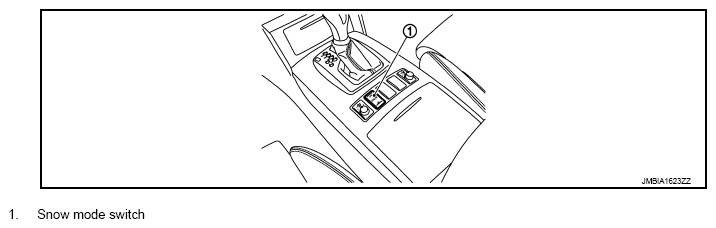

Fig 18: Automatic Speed Control Device (ASCD) System Components Location (18 Of 21)

G09000682

Courtesy of NISSAN NORTH AMERICA, INC.

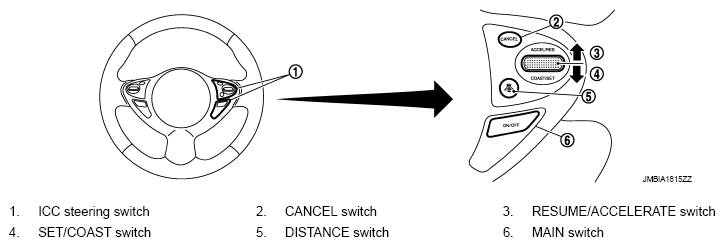

Fig 19: Automatic Speed Control Device (ASCD) System Components Location (19 Of 21)

G09000683

Courtesy of NISSAN NORTH AMERICA, INC.

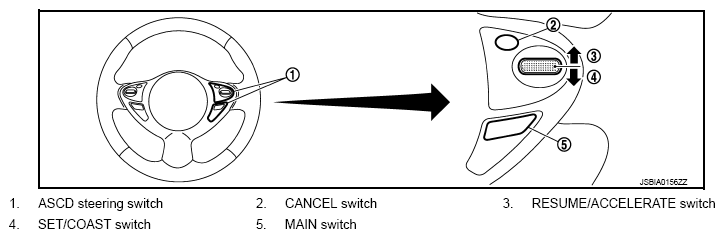

Fig 20: Automatic Speed Control Device (ASCD) System Components Location (20 Of 21)

G09000684

Courtesy of NISSAN NORTH AMERICA, INC.

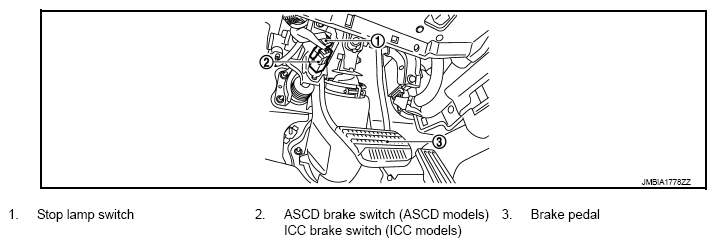

Fig 21: Automatic Speed Control Device (ASCD) System Components Location (21 Of 21)

G09000685

Courtesy of NISSAN NORTH AMERICA, INC.
