Component Parts Location

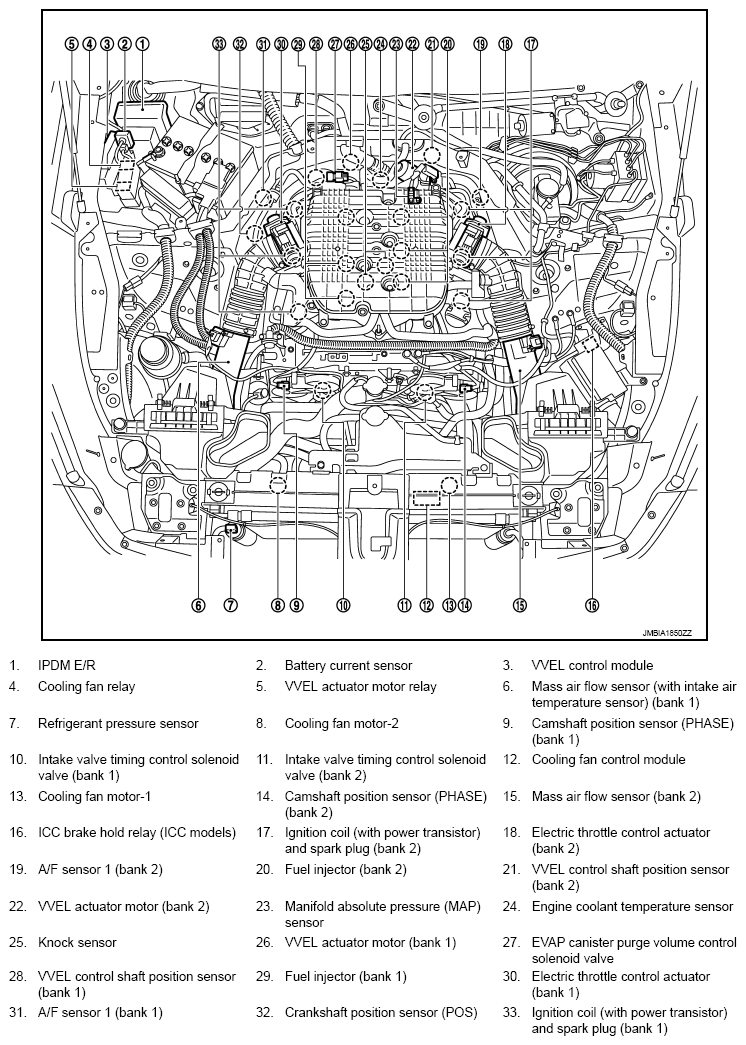

Fig 1: Evaporative Emission System Components Location (1 Of 21)

G09000710

Courtesy of NISSAN NORTH AMERICA, INC.

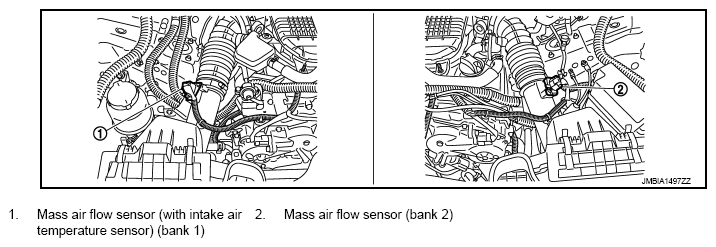

Fig 2: Evaporative Emission System Components Location (2 Of 21)

G09000712

Courtesy of NISSAN NORTH AMERICA, INC.

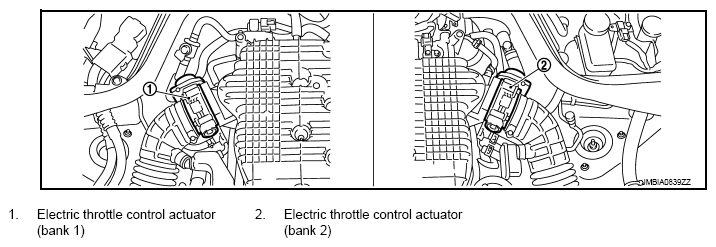

Fig 3: Evaporative Emission System Components Location (3 Of 21)

G09000713

Courtesy of NISSAN NORTH AMERICA, INC.

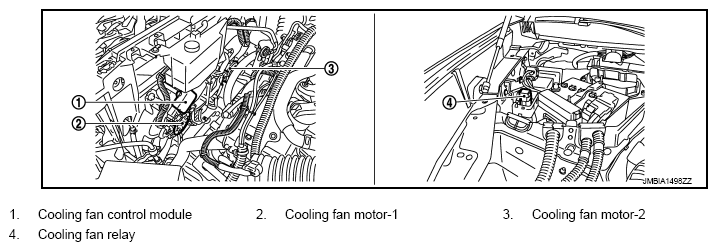

Fig 4: Evaporative Emission System Components Location (4 Of 21)

G09000714

Courtesy of NISSAN NORTH AMERICA, INC.

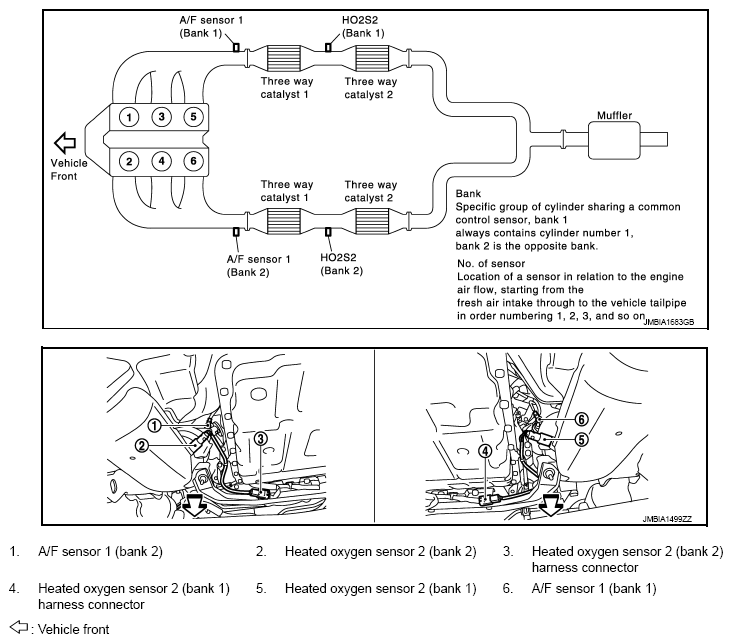

Fig 5: Evaporative Emission System Components Location (5 Of 21)

G09000715

Courtesy of NISSAN NORTH AMERICA, INC.

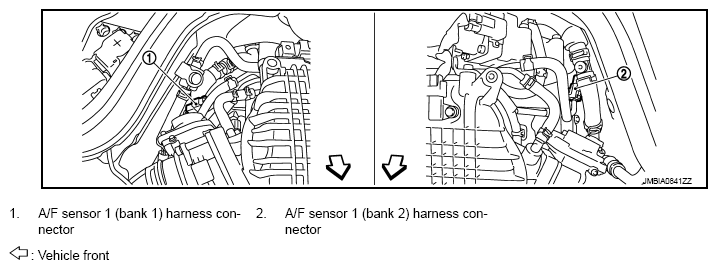

Fig 6: Evaporative Emission System Components Location (6 Of 21)

G09000716

Courtesy of NISSAN NORTH AMERICA, INC.

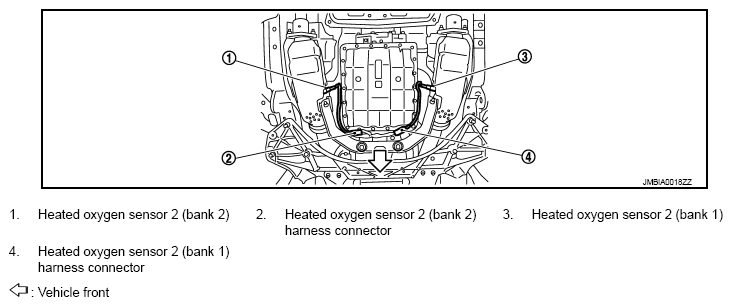

Fig 7: Evaporative Emission System Components Location (7 Of 21)

G09000717

Courtesy of NISSAN NORTH AMERICA, INC.

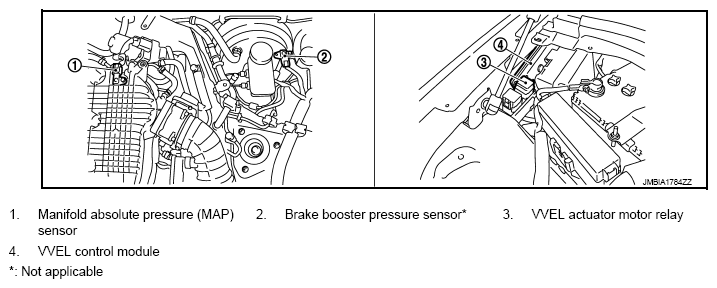

Fig 8: Evaporative Emission System Components Location (8 Of 21)

G09000718

Courtesy of NISSAN NORTH AMERICA, INC.

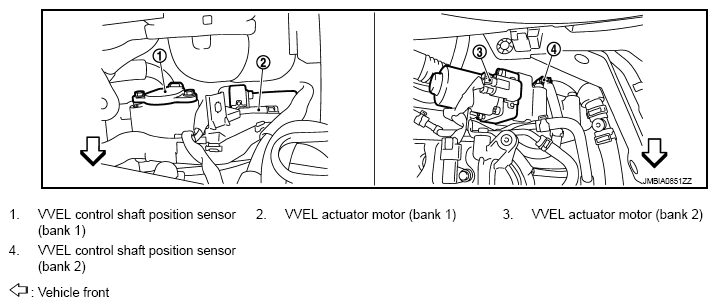

Fig 9: Evaporative Emission System Components Location (9 Of 21)

G09000719

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Evaporative Emission System Components Location (10 Of 21)

G09000720

Courtesy of NISSAN NORTH AMERICA, INC.

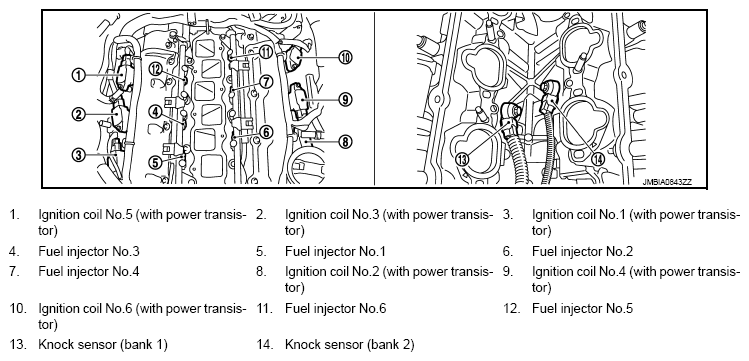

Fig 11: Evaporative Emission System Components Location (11 Of 21)

G09000721

Courtesy of NISSAN NORTH AMERICA, INC.

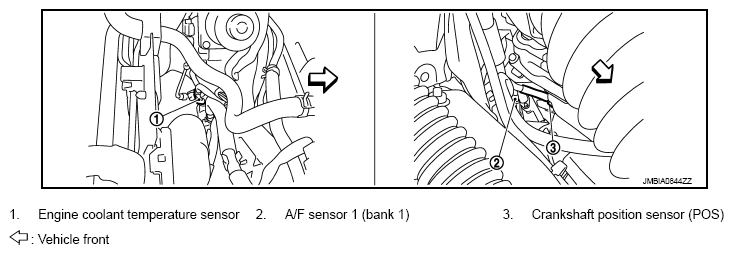

Fig 12: Evaporative Emission System Components Location (12 Of 21)

G09000722

Courtesy of NISSAN NORTH AMERICA, INC.

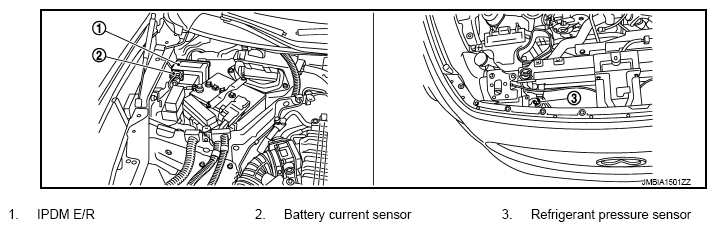

Fig 13: Evaporative Emission System Components Location (13 Of 21)

G09000723

Courtesy of NISSAN NORTH AMERICA, INC.

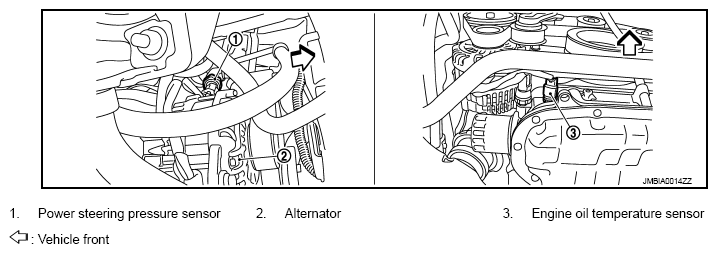

Fig 14: Evaporative Emission System Components Location (14 Of 21)

G09000724

Courtesy of NISSAN NORTH AMERICA, INC.

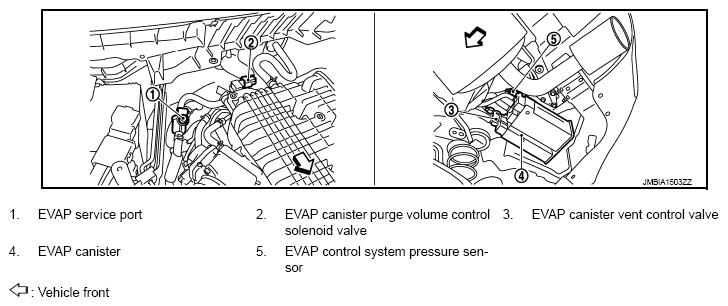

Fig 15: Evaporative Emission System Components Location (15 Of 21)

G09000725

Courtesy of NISSAN NORTH AMERICA, INC.

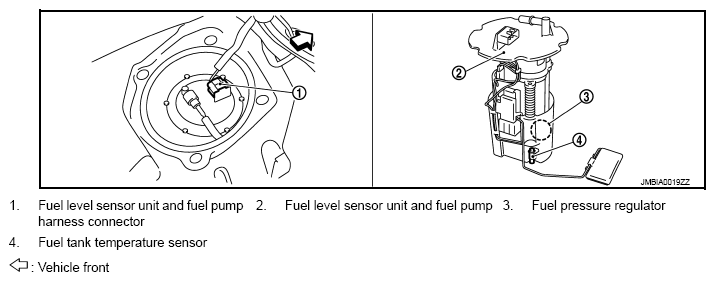

Fig 16: Evaporative Emission System Components Location (16 Of 21)

G09000726

Courtesy of NISSAN NORTH AMERICA, INC.

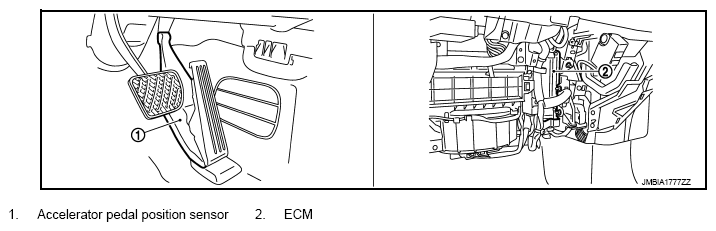

Fig 17: Evaporative Emission System Components Location (17 Of 21)

G09000728

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Evaporative Emission System Components Location (18 Of 21)

G09000729

Courtesy of NISSAN NORTH AMERICA, INC.

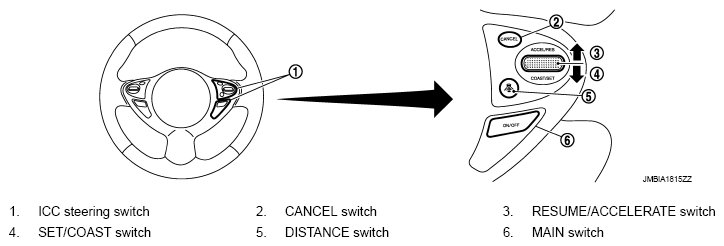

Fig 19: Evaporative Emission System Components Location (19 Of 21)

G09000730

Courtesy of NISSAN NORTH AMERICA, INC.

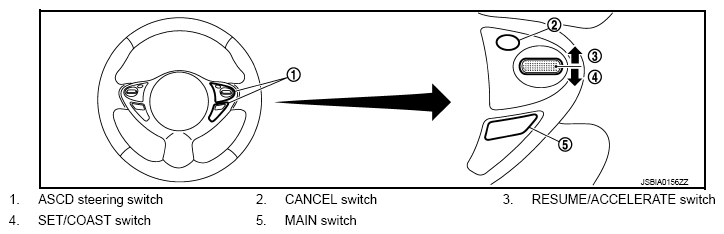

Fig 20: Evaporative Emission System Components Location (20 Of 21)

G09000731

Courtesy of NISSAN NORTH AMERICA, INC.

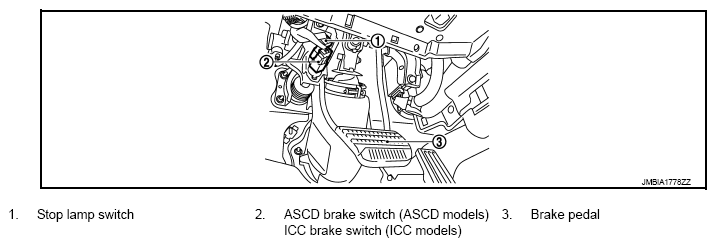

Fig 21: Evaporative Emission System Components Location (21 Of 21)

G09000732

Courtesy of NISSAN NORTH AMERICA, INC.
