Component Parts Location

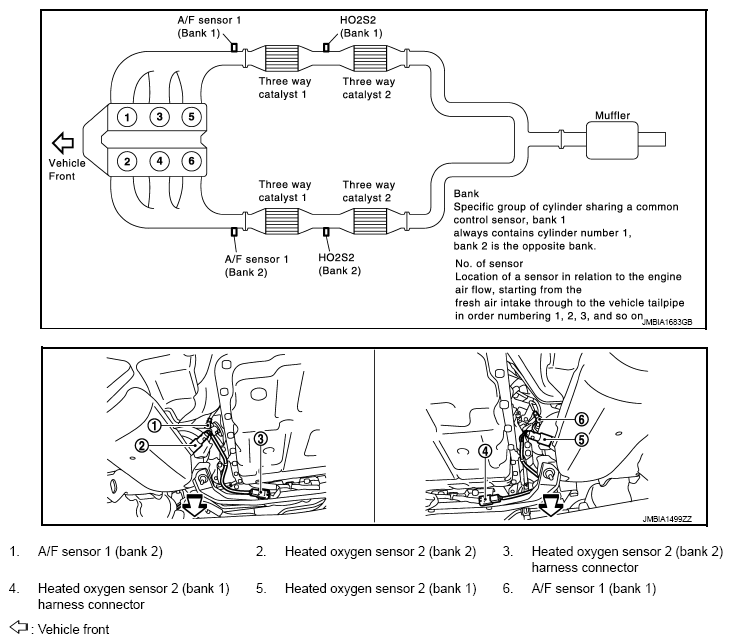

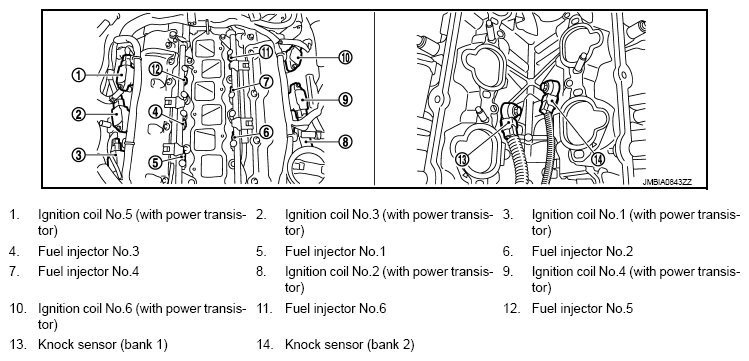

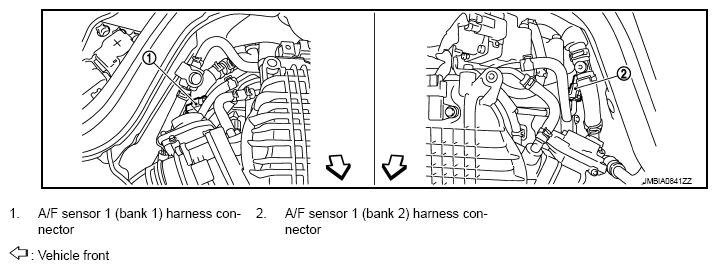

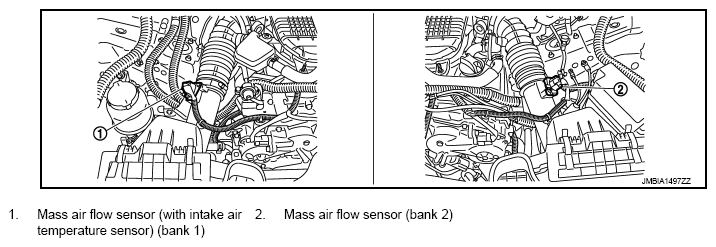

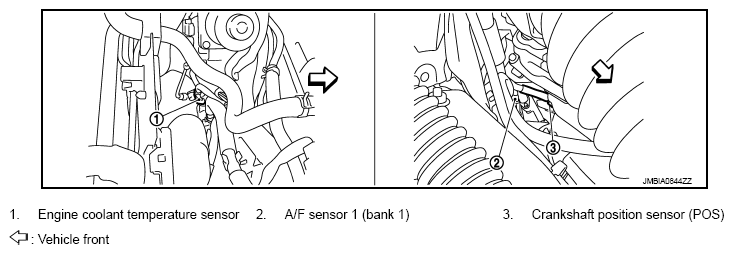

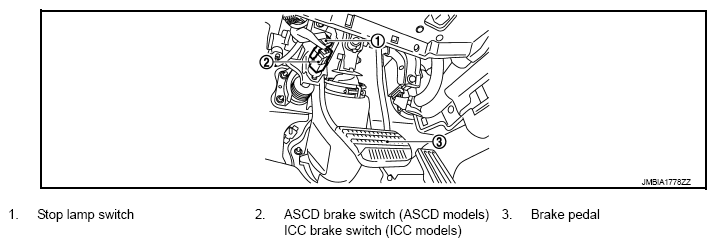

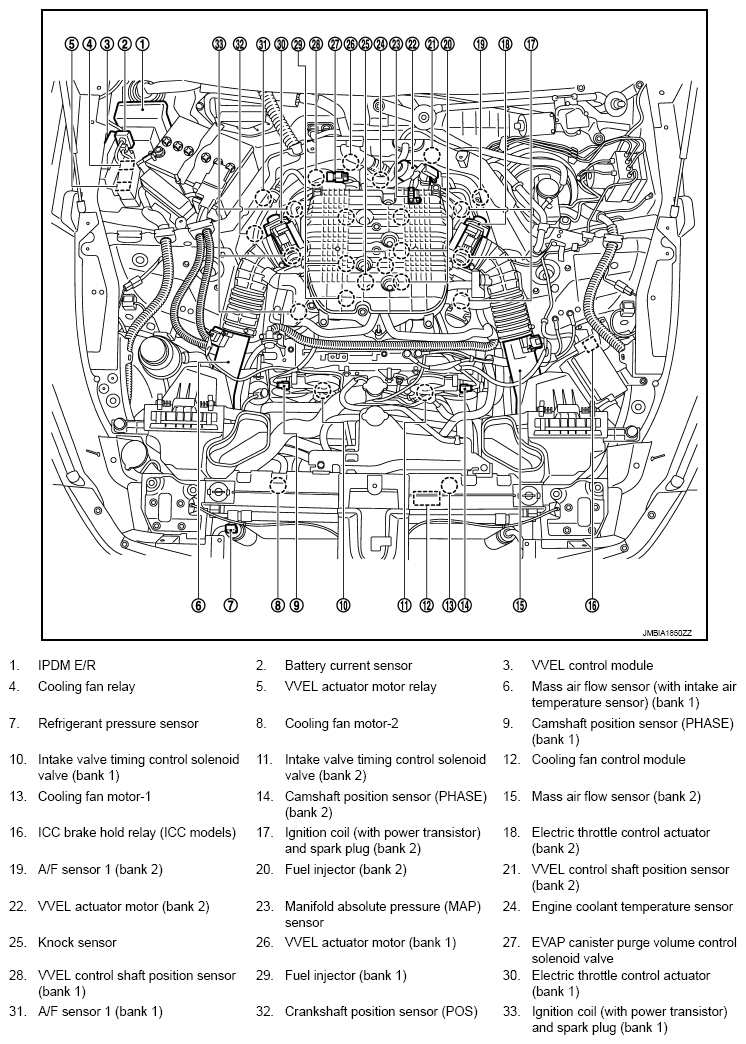

Fig 1: VVEL System Components Location (1 Of 21)

G09000780

Courtesy of NISSAN NORTH AMERICA, INC.

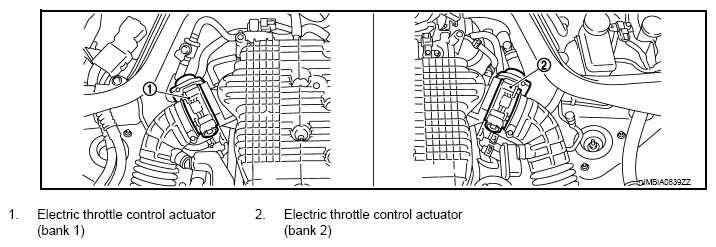

Fig 2: VVEL System Components Location (2 Of 21)

G09000781

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: VVEL System Components Location (3 Of 21)

G09000782

Courtesy of NISSAN NORTH AMERICA, INC.

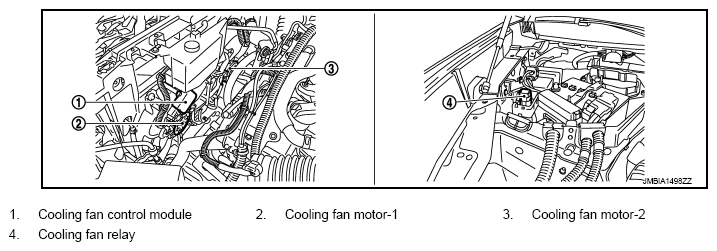

Fig 4: VVEL System Components Location (4 Of 21)

G09000783

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: VVEL System Components Location (5 Of 21)

G09000784

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: VVEL System Components Location (6 Of 21)

G09000785

Courtesy of NISSAN NORTH AMERICA, INC.

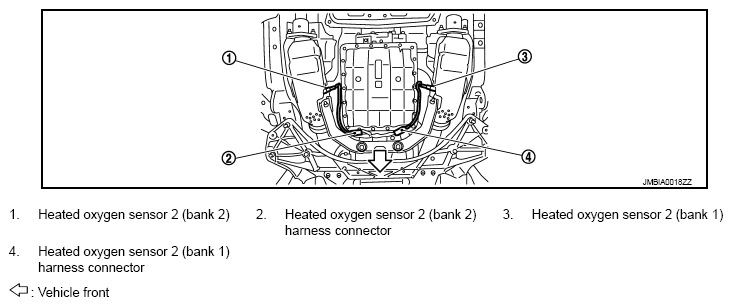

Fig 7: VVEL System Components Location (7 Of 21)

G09000786

Courtesy of NISSAN NORTH AMERICA, INC.

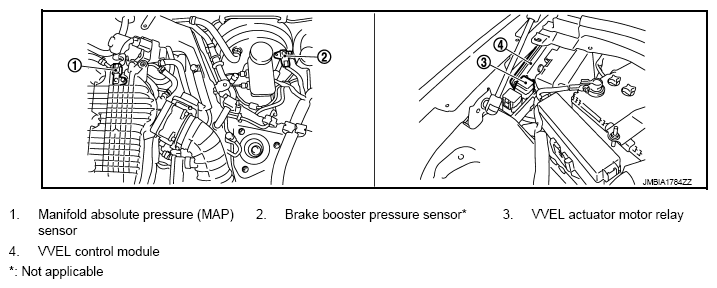

Fig 8: VVEL System Components Location (8 Of 21)

G09000787

Courtesy of NISSAN NORTH AMERICA, INC.

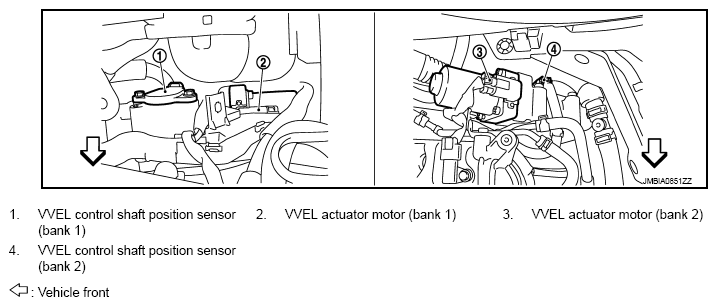

Fig 9: VVEL System Components Location (9 Of 21)

G09000788

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: VVEL System Components Location (10 Of 21)

G09000789

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: VVEL System Components Location (11 Of 21)

G09000790

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: VVEL System Components Location (12 Of 21)

G09000791

Courtesy of NISSAN NORTH AMERICA, INC.

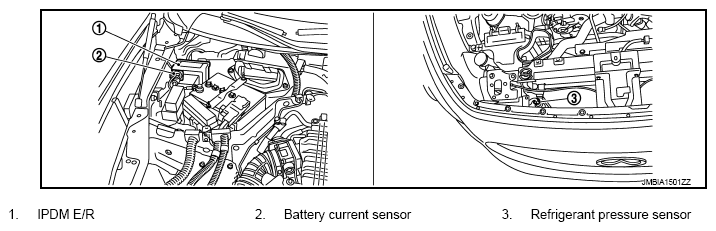

Fig 13: VVEL System Components Location (13 Of 21)

G09000792

Courtesy of NISSAN NORTH AMERICA, INC.

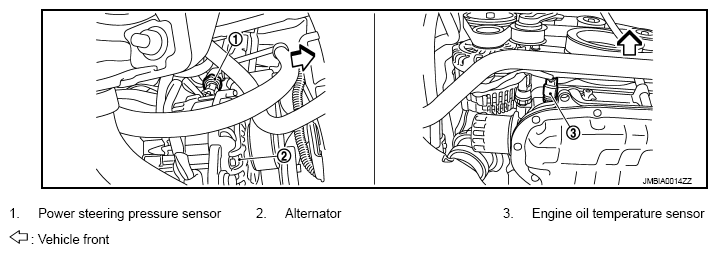

Fig 14: VVEL System Components Location (14 Of 21)

G09000793

Courtesy of NISSAN NORTH AMERICA, INC.

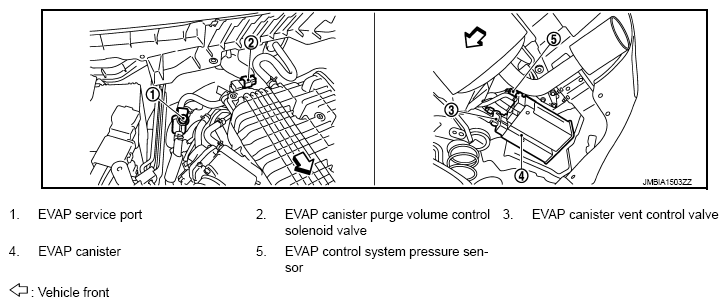

Fig 15: VVEL System Components Location (15 Of 21)

G09000794

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: VVEL System Components Location (16 Of 21)

G09000795

Courtesy of NISSAN NORTH AMERICA, INC.

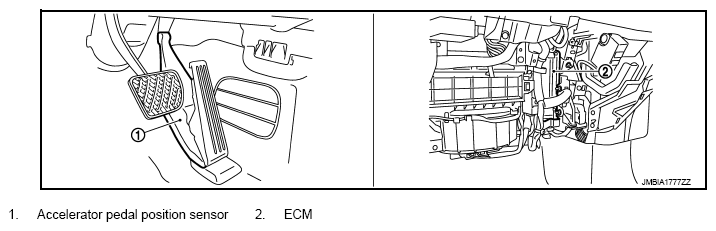

Fig 17: VVEL System Components Location (17 Of 21)

G09000796

Courtesy of NISSAN NORTH AMERICA, INC.

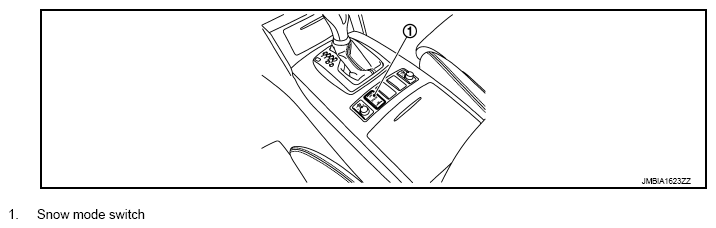

Fig 18: VVEL System Components Location (18 Of 21)

G09000797

Courtesy of NISSAN NORTH AMERICA, INC.

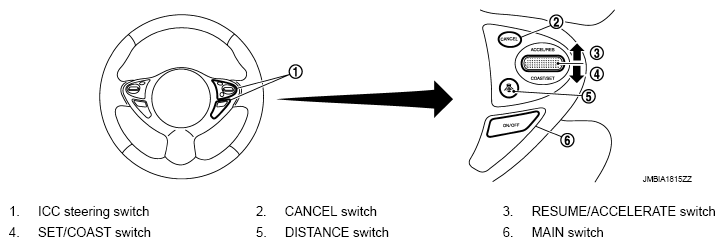

Fig 19: VVEL System Components Location (19 Of 21)

G09000798

Courtesy of NISSAN NORTH AMERICA, INC.

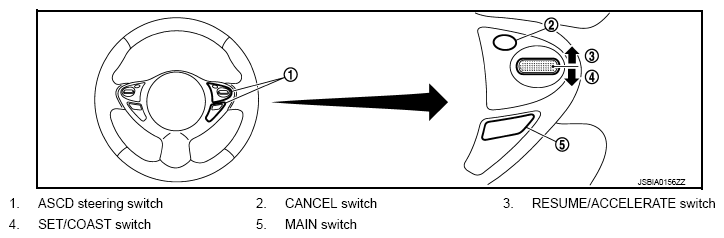

Fig 20: VVEL System Components Location (20 Of 21)

G09000799

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: VVEL System Components Location (21 Of 21)

G09000800

Courtesy of NISSAN NORTH AMERICA, INC.
