System - Basic Engine Control System

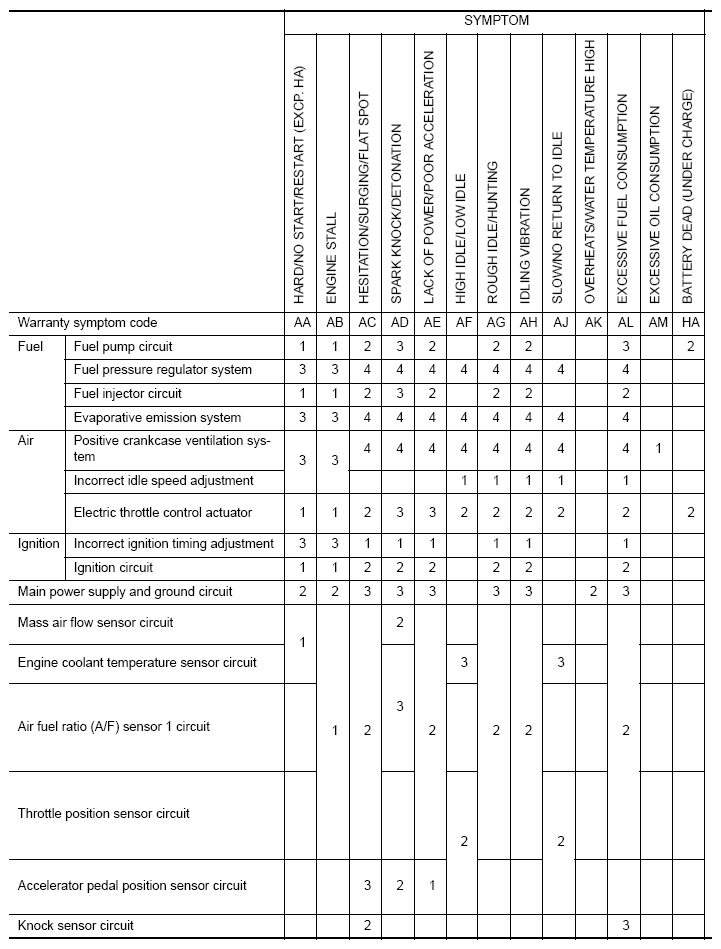

Fig 1: Engine Control System Symptoms Chart - Basic Engine (1 Of 2)
G09001009Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Engine Control System Symptoms Chart - Basic Engine (2 Of 2)
G09001010Courtesy of NISSAN NORTH AMERICA, INC.
