Exploded View

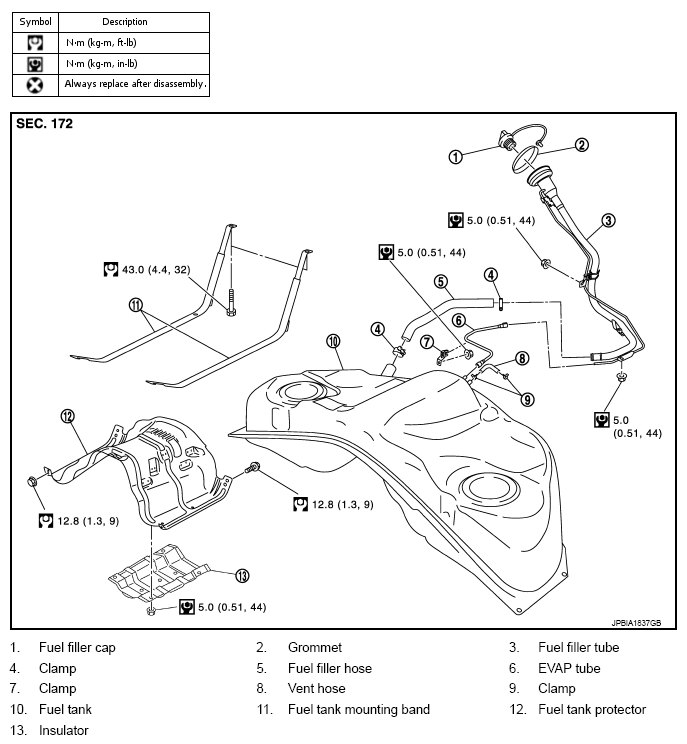

Fig 1: Exploded View Of Fuel Tank
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
