Component Parts Location

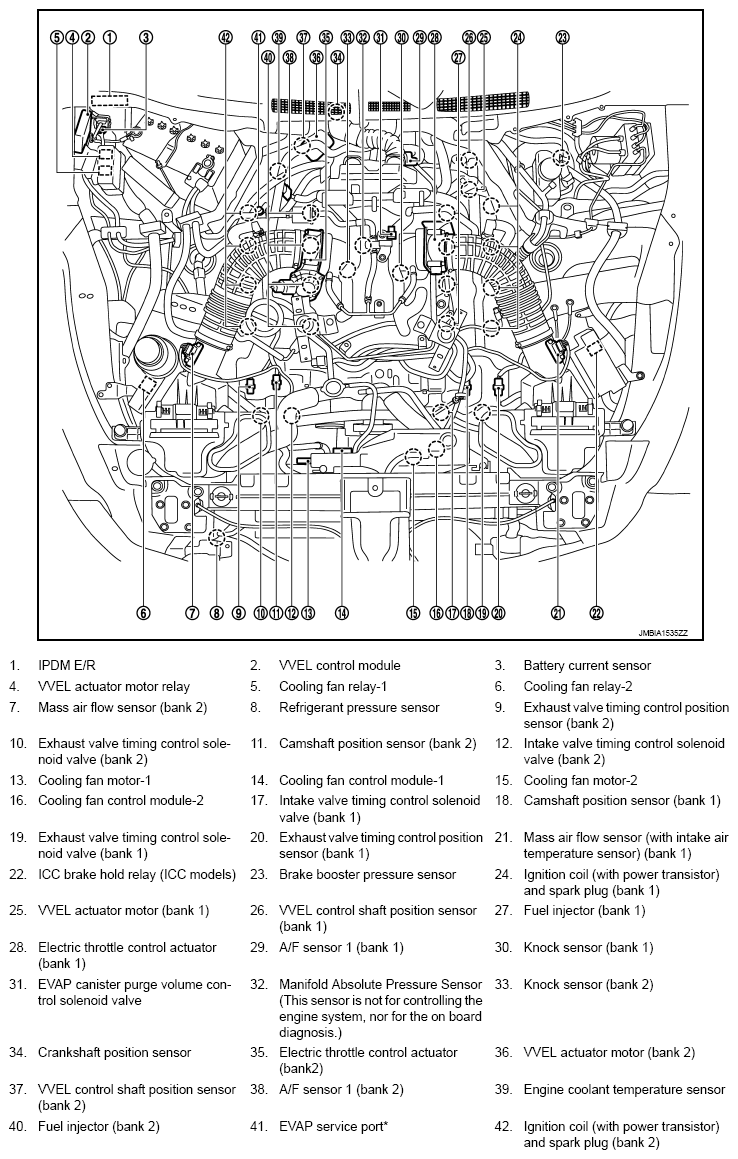

Fig 1: Air Conditioning Cut Control Components Location (1 Of 25)

G09001141

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

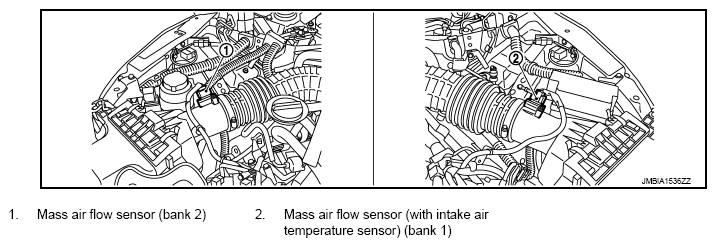

Fig 2: Air Conditioning Cut Control Components Location (2 Of 25)

G09001142

Courtesy of NISSAN NORTH AMERICA, INC.

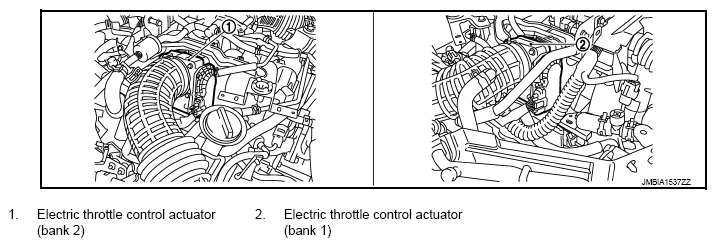

Fig 3: Air Conditioning Cut Control Components Location (3 Of 25)

G09001143

Courtesy of NISSAN NORTH AMERICA, INC.

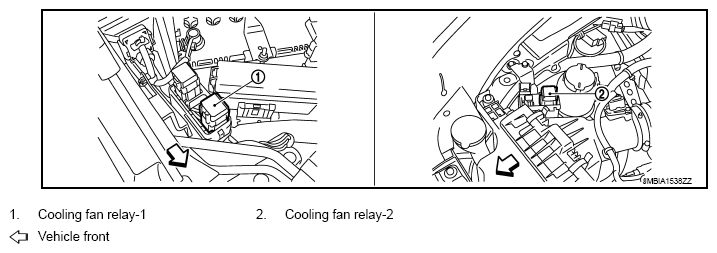

Fig 4: Air Conditioning Cut Control Components Location (4 Of 25)

G09001144

Courtesy of NISSAN NORTH AMERICA, INC.

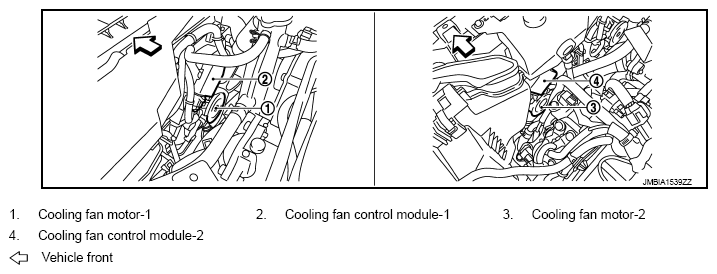

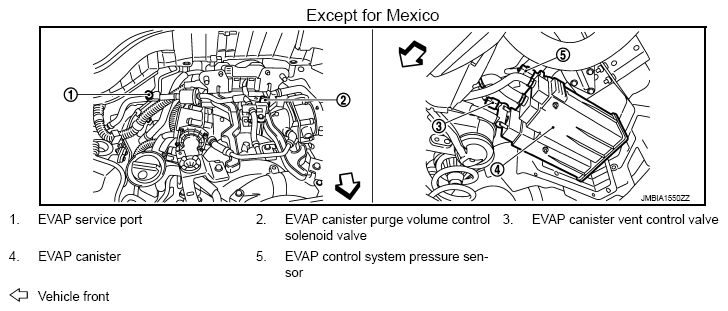

Fig 5: Air Conditioning Cut Control Components Location (5 Of 25)

G09001145

Courtesy of NISSAN NORTH AMERICA, INC.

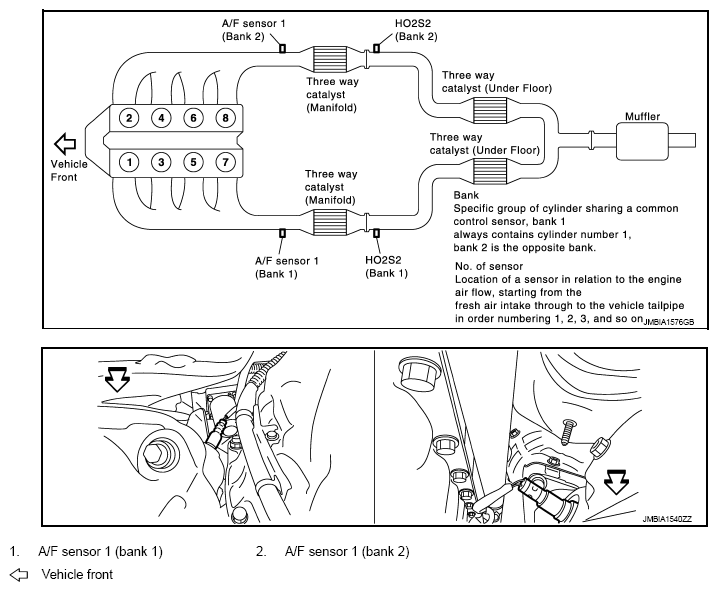

Fig 6: Air Conditioning Cut Control Components Location (6 Of 25)

G09001146

Courtesy of NISSAN NORTH AMERICA, INC.

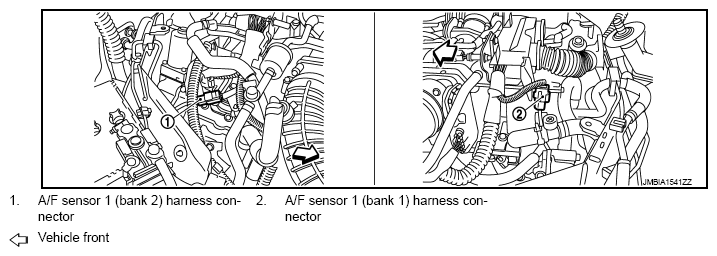

Fig 7: Air Conditioning Cut Control Components Location (7 Of 25)

G09001147

Courtesy of NISSAN NORTH AMERICA, INC.

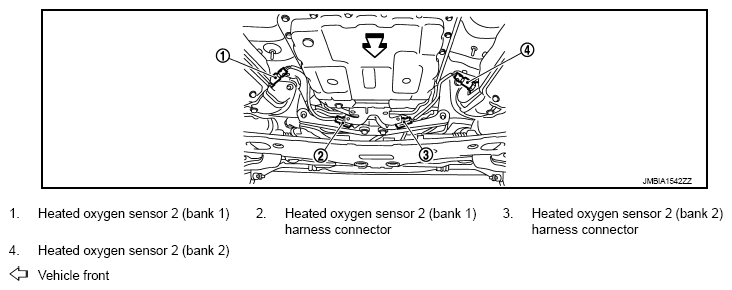

Fig 8: Air Conditioning Cut Control Components Location (8 Of 25)

G09001148

Courtesy of NISSAN NORTH AMERICA, INC.

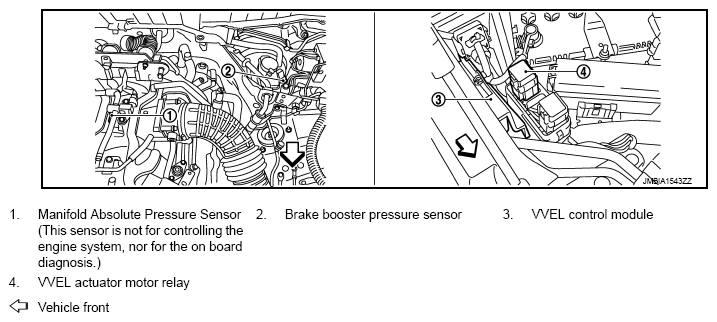

Fig 9: Air Conditioning Cut Control Components Location (9 Of 25)

G09001149

Courtesy of NISSAN NORTH AMERICA, INC.

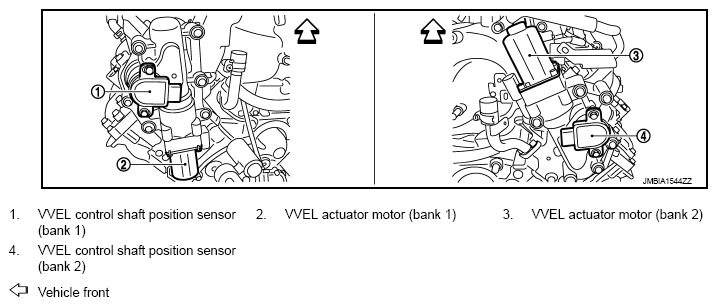

Fig 10: Air Conditioning Cut Control Components Location (10 Of 25)

G09001150

Courtesy of NISSAN NORTH AMERICA, INC.

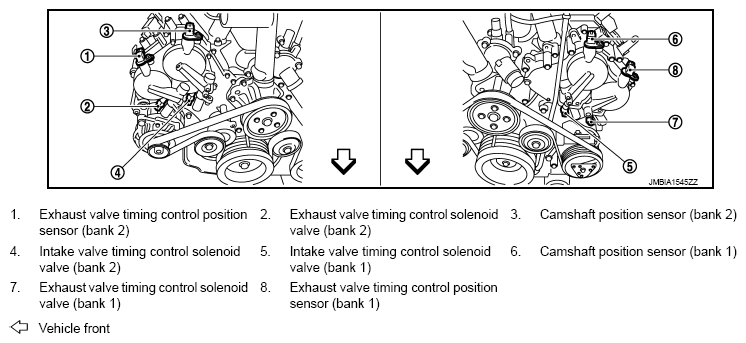

Fig 11: Air Conditioning Cut Control Components Location (11 Of 25)

G09001151

Courtesy of NISSAN NORTH AMERICA, INC.

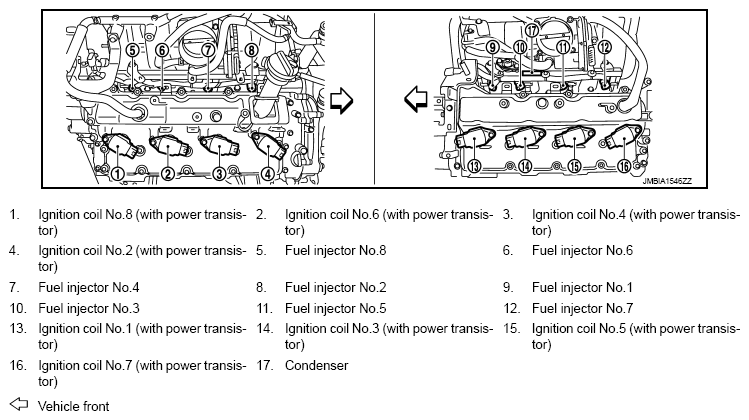

Fig 12: Air Conditioning Cut Control Components Location (12 Of 25)

G09001152

Courtesy of NISSAN NORTH AMERICA, INC.

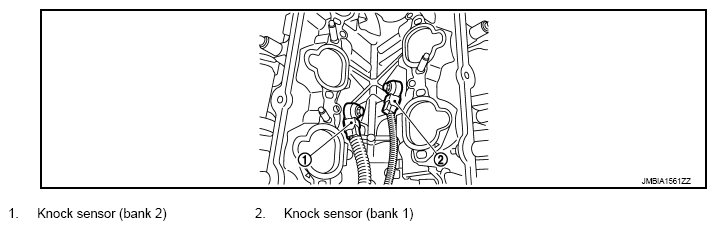

Fig 13: Air Conditioning Cut Control Components Location (13 Of 25)

G09001153

Courtesy of NISSAN NORTH AMERICA, INC.

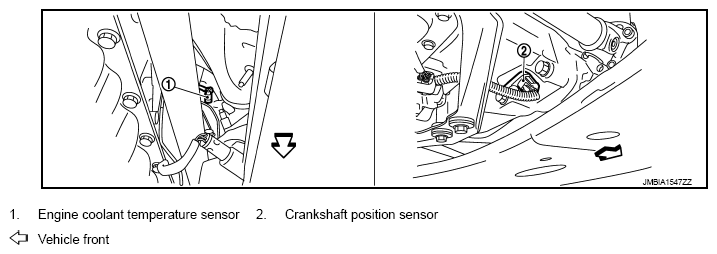

Fig 14: Air Conditioning Cut Control Components Location (14 Of 25)

G09001154

Courtesy of NISSAN NORTH AMERICA, INC.

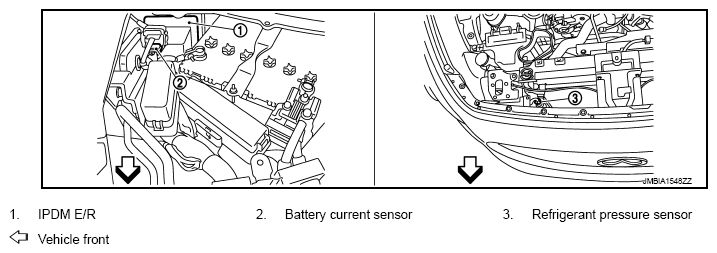

Fig 15: Air Conditioning Cut Control Components Location (15 Of 25)

G09001155

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Air Conditioning Cut Control Components Location (16 Of 25)

G09001156

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Air Conditioning Cut Control Components Location (17 Of 25)

G09001157

Courtesy of NISSAN NORTH AMERICA, INC.

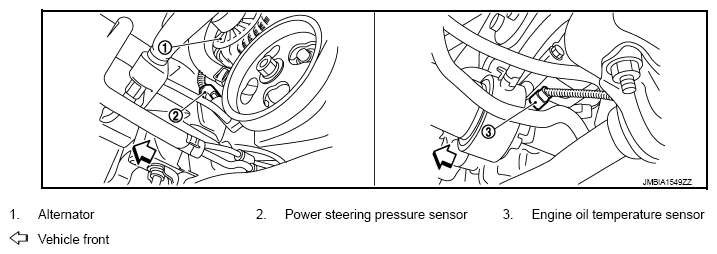

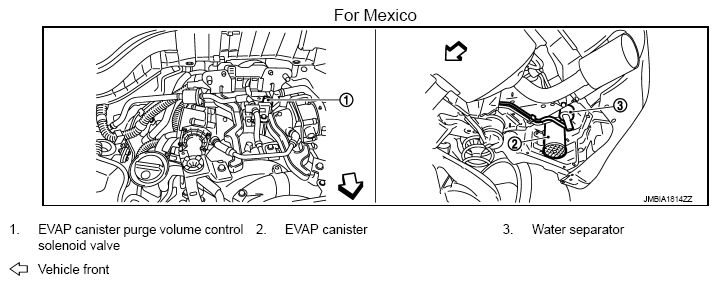

Fig 18: Air Conditioning Cut Control Components Location (18 Of 25)

G09001158

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Air Conditioning Cut Control Components Location (19 Of 25)

G09001159

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Air Conditioning Cut Control Components Location (20 Of 25)

G09001160

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Air Conditioning Cut Control Components Location (21 Of 25)

G09001161

Courtesy of NISSAN NORTH AMERICA, INC.

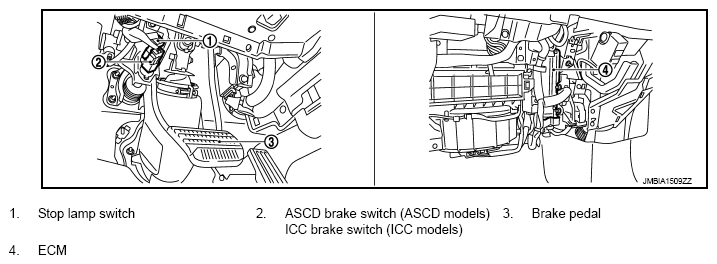

Fig 22: Air Conditioning Cut Control Components Location (22 Of 25)

G09001162

Courtesy of NISSAN NORTH AMERICA, INC.

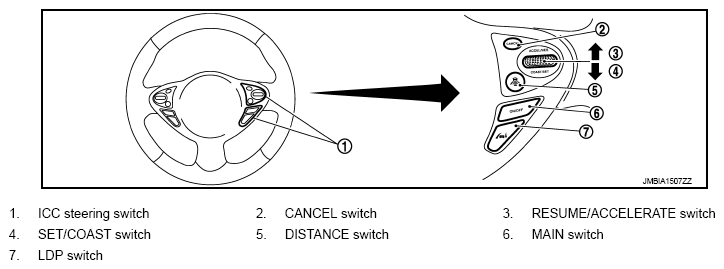

Fig 23: Air Conditioning Cut Control Components Location (23 Of 25)

G09001163

Courtesy of NISSAN NORTH AMERICA, INC.

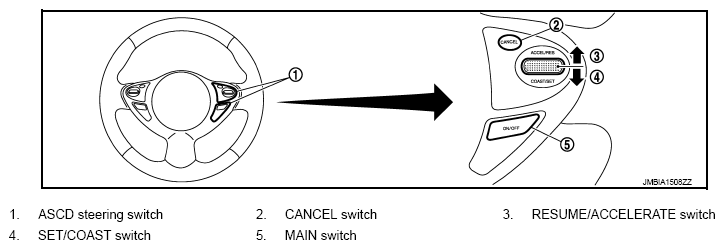

Fig 24: Air Conditioning Cut Control Components Location (24 Of 25)

G09001164

Courtesy of NISSAN NORTH AMERICA, INC.

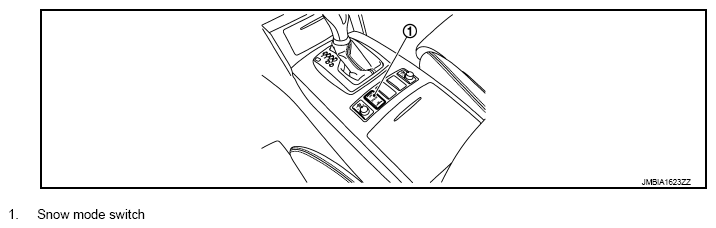

Fig 25: Air Conditioning Cut Control Components Location (25 Of 25)

G09001165

Courtesy of NISSAN NORTH AMERICA, INC.
