Component Parts Location

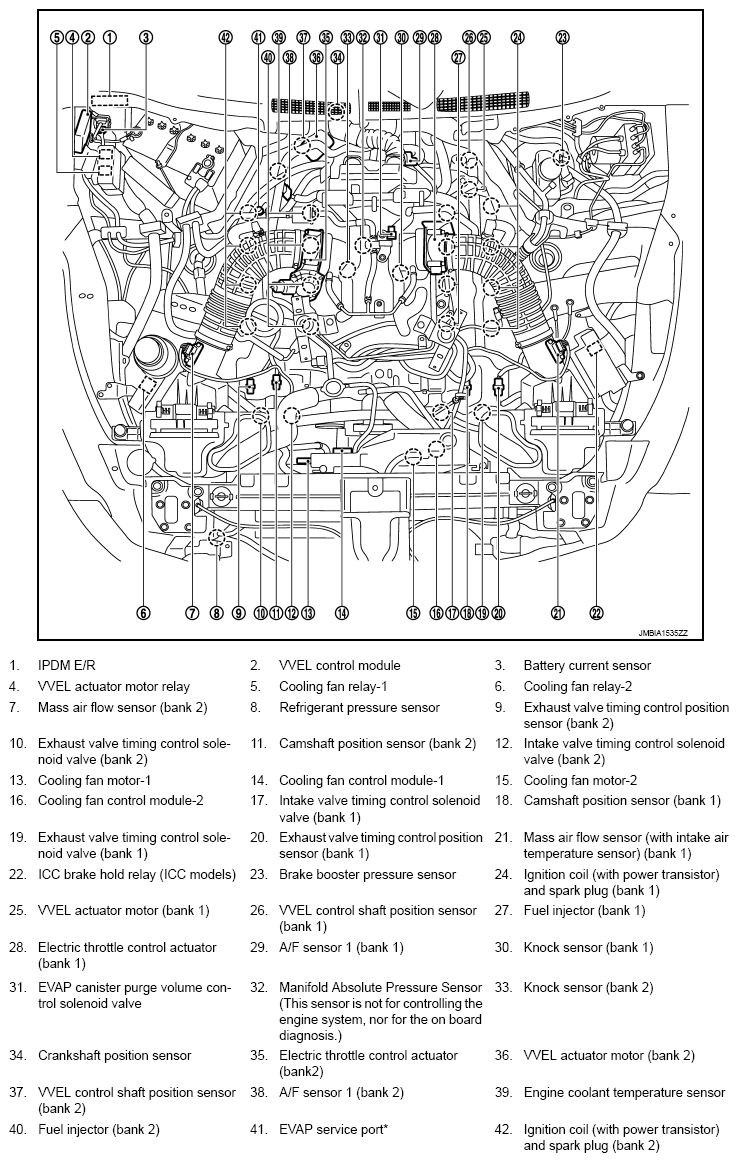

Fig 1: Automatic Speed Control Device Components Location (1 Of 25)

G09001167

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

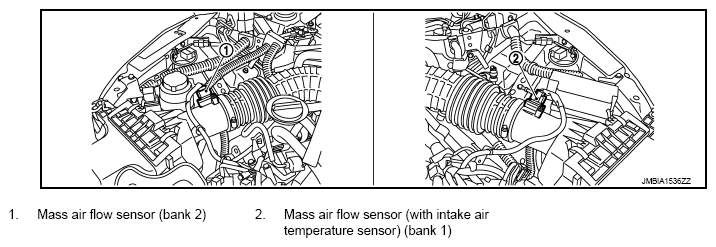

Fig 2: Automatic Speed Control Device Components Location (2 Of 25)

G09001168

Courtesy of NISSAN NORTH AMERICA, INC.

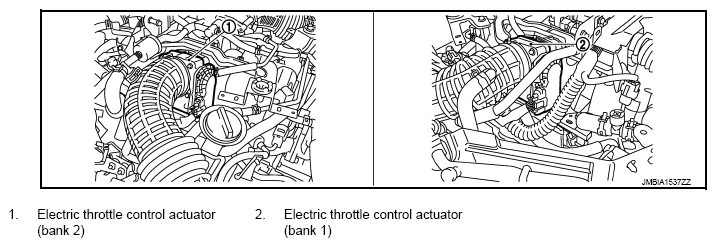

Fig 3: Automatic Speed Control Device Components Location (3 Of 25)

G09001169

Courtesy of NISSAN NORTH AMERICA, INC.

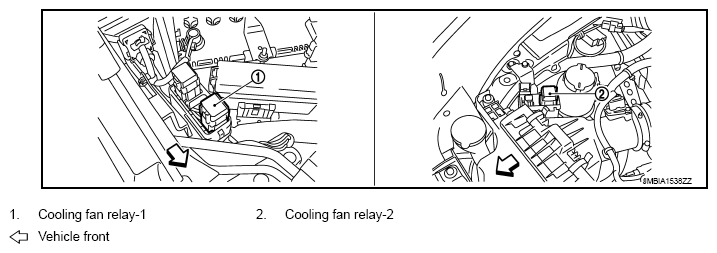

Fig 4: Automatic Speed Control Device Components Location (4 Of 25)

G09001170

Courtesy of NISSAN NORTH AMERICA, INC.

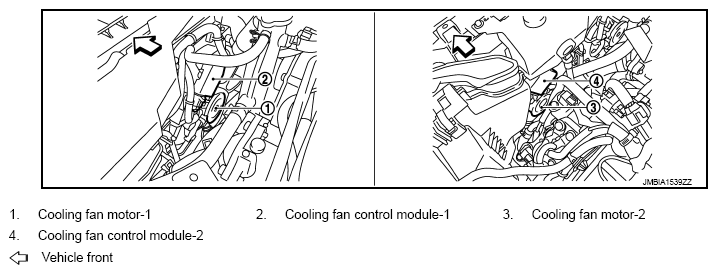

Fig 5: Automatic Speed Control Device Components Location (5 Of 25)

G09001171

Courtesy of NISSAN NORTH AMERICA, INC.

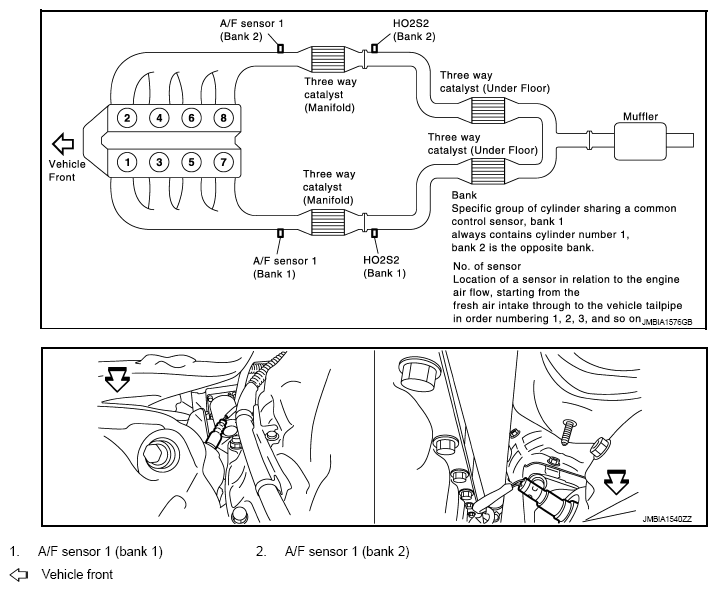

Fig 6: Automatic Speed Control Device Components Location (6 Of 25)

G09001172

Courtesy of NISSAN NORTH AMERICA, INC.

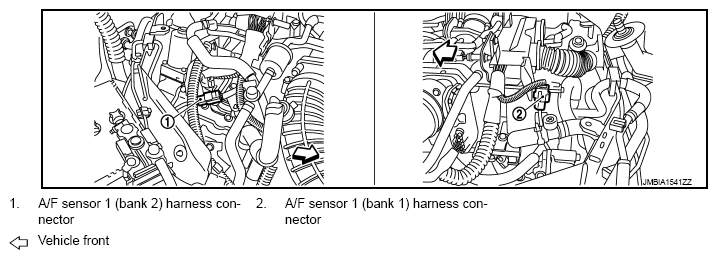

Fig 7: Automatic Speed Control Device Components Location (7 Of 25)

G09001173

Courtesy of NISSAN NORTH AMERICA, INC.

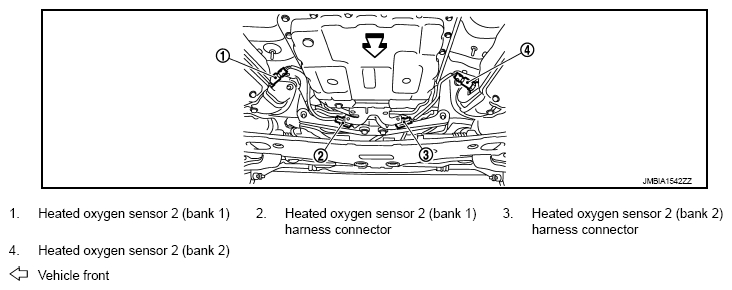

Fig 8: Automatic Speed Control Device Components Location (8 Of 25)

G09001174

Courtesy of NISSAN NORTH AMERICA, INC.

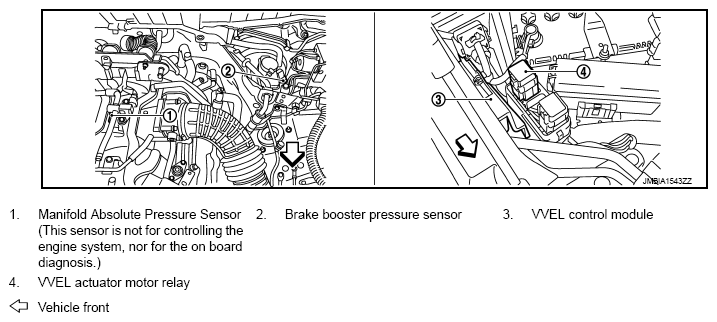

Fig 9: Automatic Speed Control Device Components Location (9 Of 25)

G09001175

Courtesy of NISSAN NORTH AMERICA, INC.

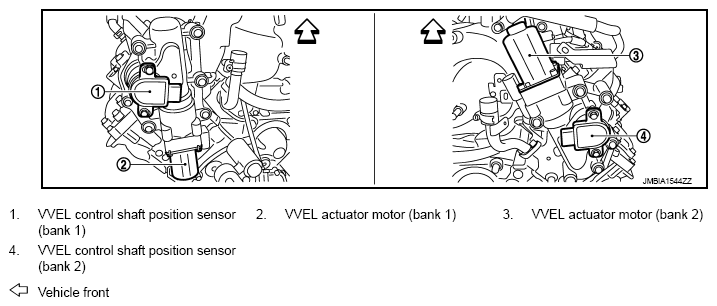

Fig 10: Automatic Speed Control Device Components Location (10 Of 25)

G09001176

Courtesy of NISSAN NORTH AMERICA, INC.

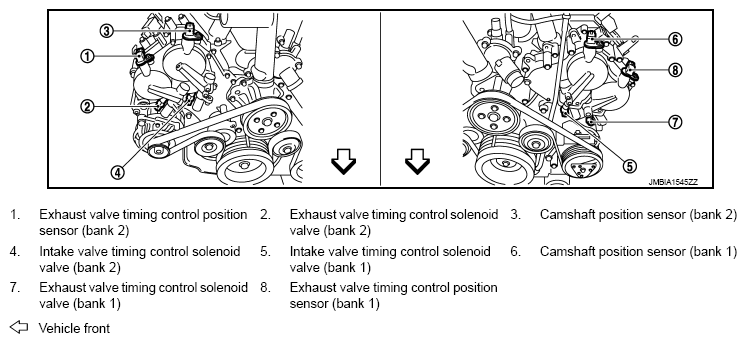

Fig 11: Automatic Speed Control Device Components Location (11 Of 25)

G09001177

Courtesy of NISSAN NORTH AMERICA, INC.

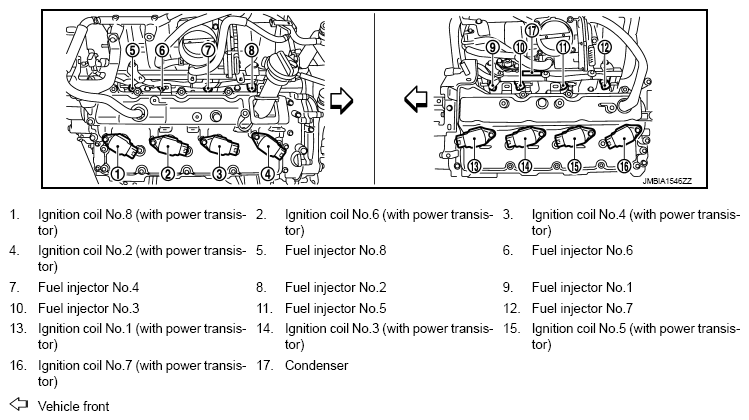

Fig 12: Automatic Speed Control Device Components Location (12 Of 25)

G09001178

Courtesy of NISSAN NORTH AMERICA, INC.

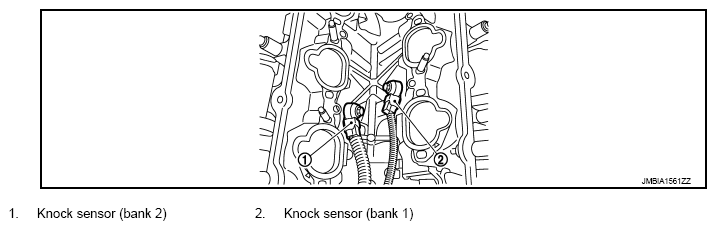

Fig 13: Automatic Speed Control Device Components Location (13 Of 25)

G09001179

Courtesy of NISSAN NORTH AMERICA, INC.

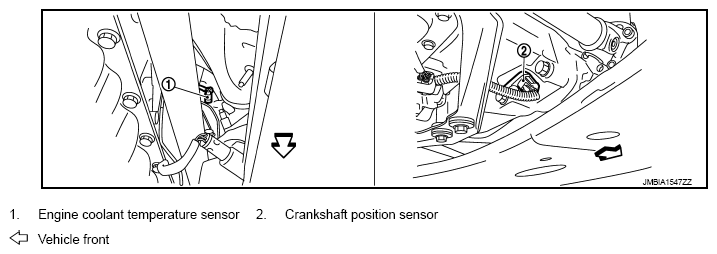

Fig 14: Automatic Speed Control Device Components Location (14 Of 25)

G09001180

Courtesy of NISSAN NORTH AMERICA, INC.

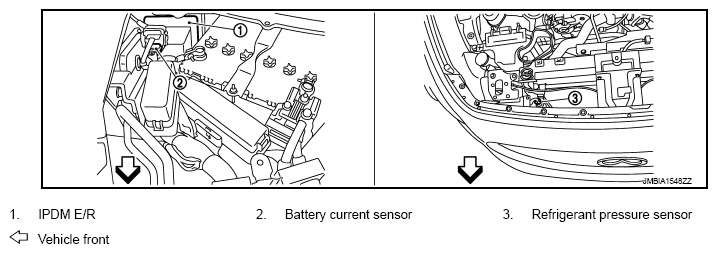

Fig 15: Automatic Speed Control Device Components Location (15 Of 25)

G09001181

Courtesy of NISSAN NORTH AMERICA, INC.

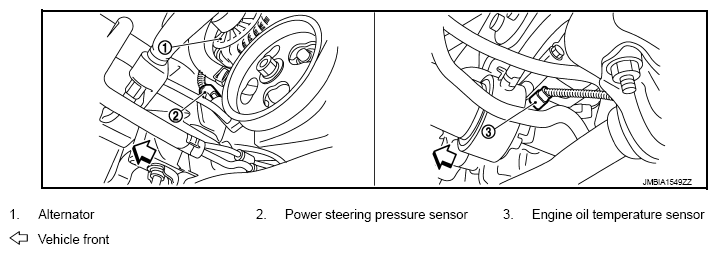

Fig 16: Automatic Speed Control Device Components Location (16 Of 25)

G09001182

Courtesy of NISSAN NORTH AMERICA, INC.

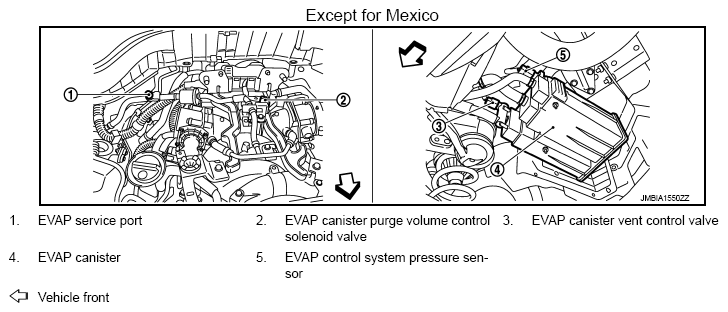

Fig 17: Automatic Speed Control Device Components Location (17 Of 25)

G09001183

Courtesy of NISSAN NORTH AMERICA, INC.

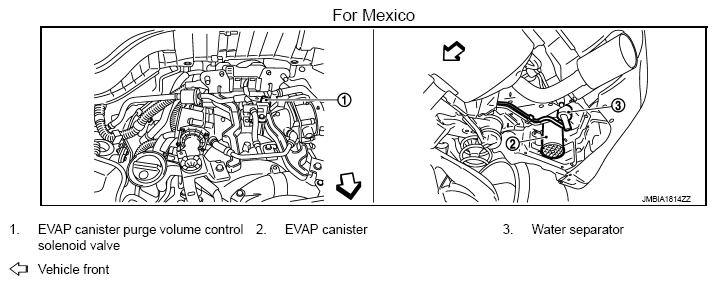

Fig 18: Automatic Speed Control Device Components Location (18 Of 25)

G09001184

Courtesy of NISSAN NORTH AMERICA, INC.

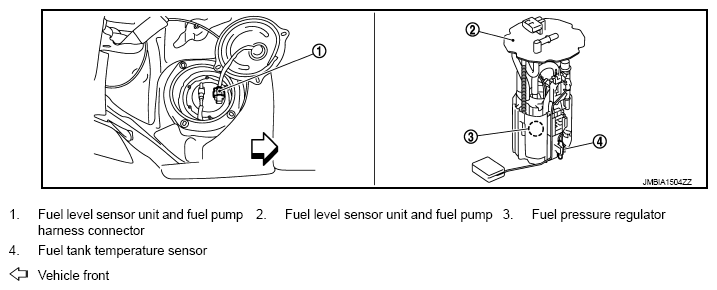

Fig 19: Automatic Speed Control Device Components Location (19 Of 25)

G09001185

Courtesy of NISSAN NORTH AMERICA, INC.

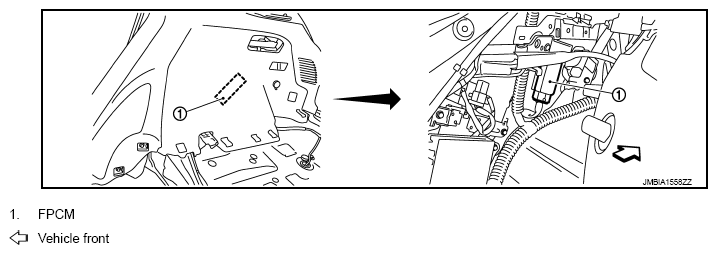

Fig 20: Automatic Speed Control Device Components Location (20 Of 25)

G09001186

Courtesy of NISSAN NORTH AMERICA, INC.

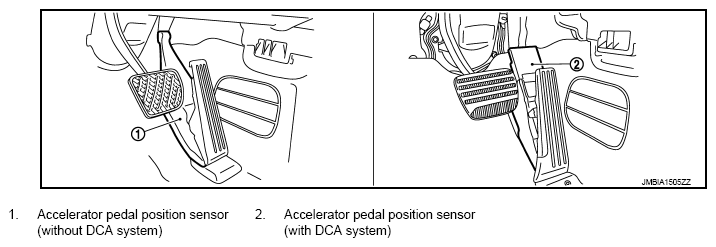

Fig 21: Automatic Speed Control Device Components Location (21 Of 25)

G09001187

Courtesy of NISSAN NORTH AMERICA, INC.

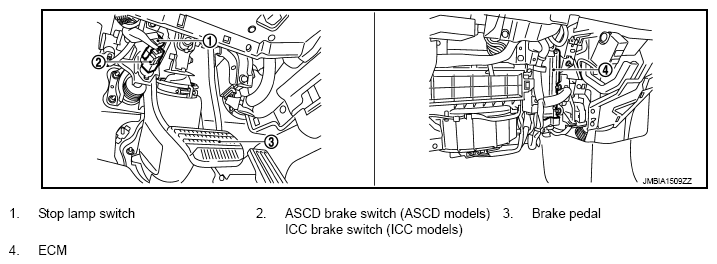

Fig 22: Automatic Speed Control Device Components Location (22 Of 25)

G09001188

Courtesy of NISSAN NORTH AMERICA, INC.

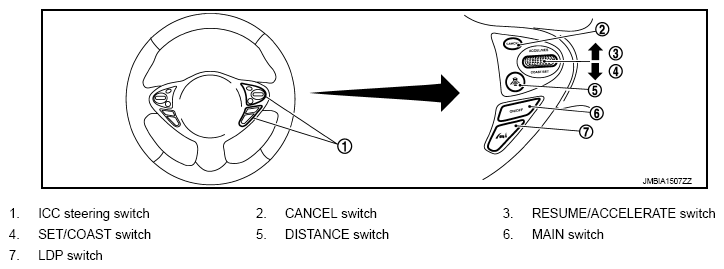

Fig 23: Automatic Speed Control Device Components Location (23 Of 25)

G09001189

Courtesy of NISSAN NORTH AMERICA, INC.

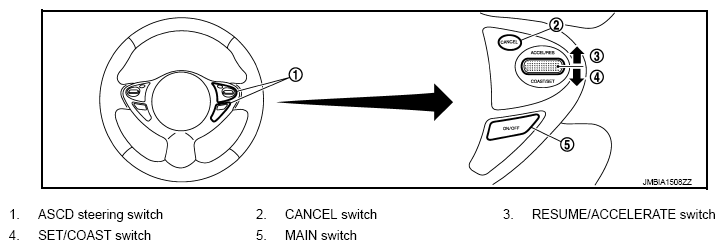

Fig 24: Automatic Speed Control Device Components Location (24 Of 25)

G09001190

Courtesy of NISSAN NORTH AMERICA, INC.

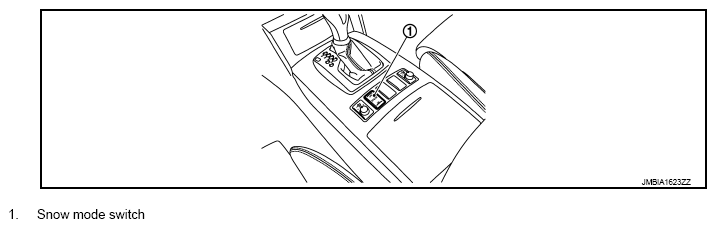

Fig 25: Automatic Speed Control Device Components Location (25 Of 25)

G09001191

Courtesy of NISSAN NORTH AMERICA, INC.
