Component Parts Location

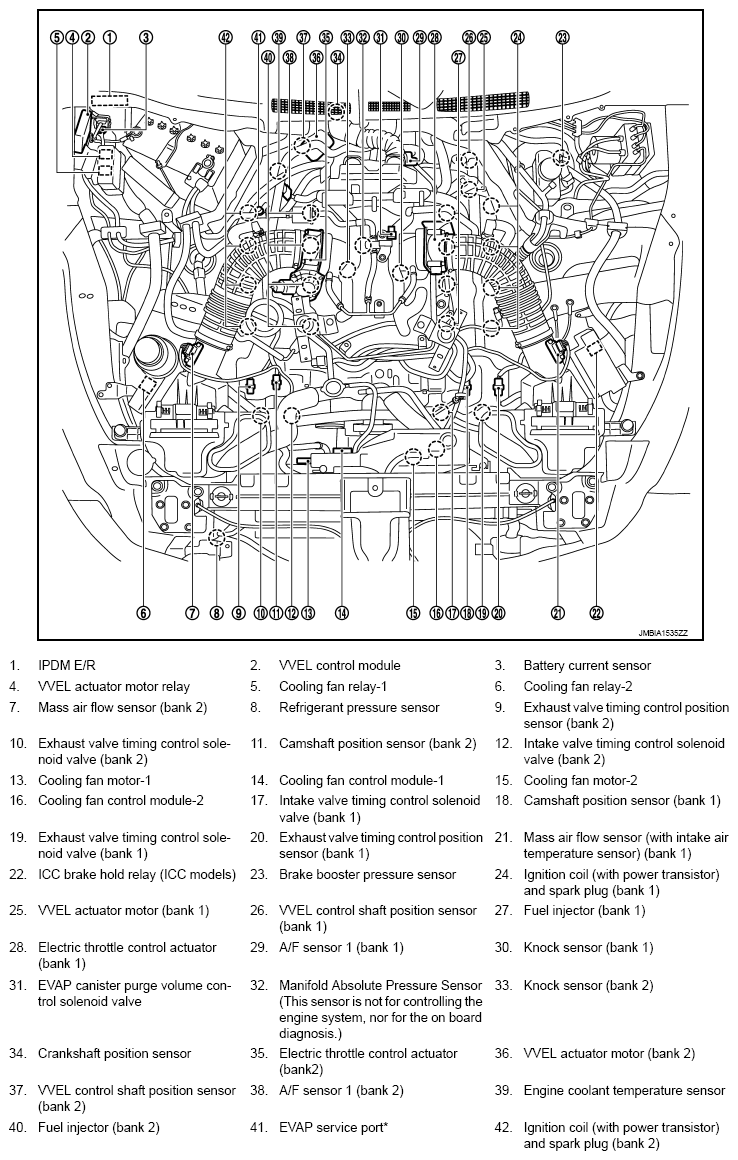

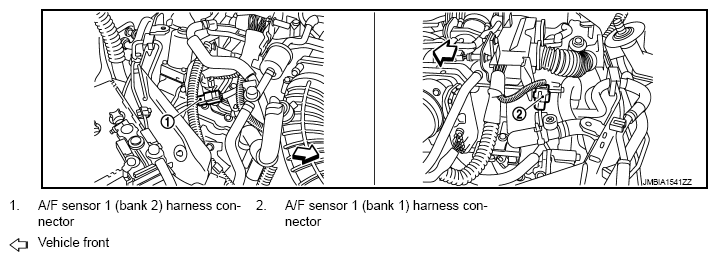

Fig 1: Cooling Fan Control Components Location (1 Of 25)

G09001193

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

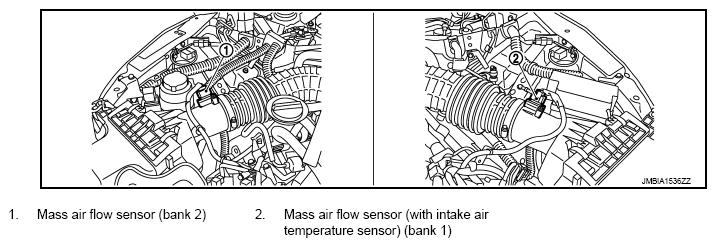

Fig 2: Cooling Fan Control Components Location (2 Of 25)

G09001194

Courtesy of NISSAN NORTH AMERICA, INC.

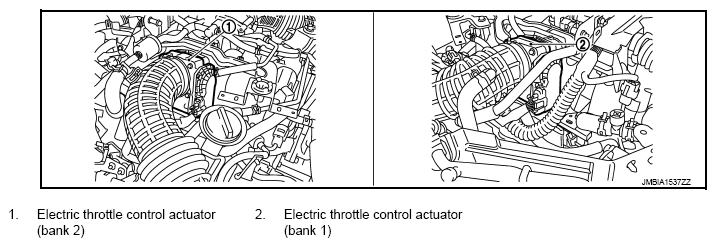

Fig 3: Cooling Fan Control Components Location (3 Of 25)

G09001195

Courtesy of NISSAN NORTH AMERICA, INC.

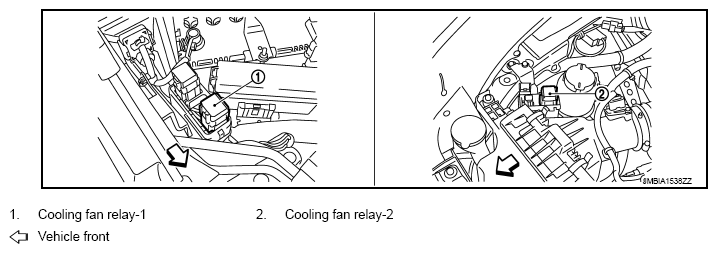

Fig 4: Cooling Fan Control Components Location (4 Of 25)

G09001196

Courtesy of NISSAN NORTH AMERICA, INC.

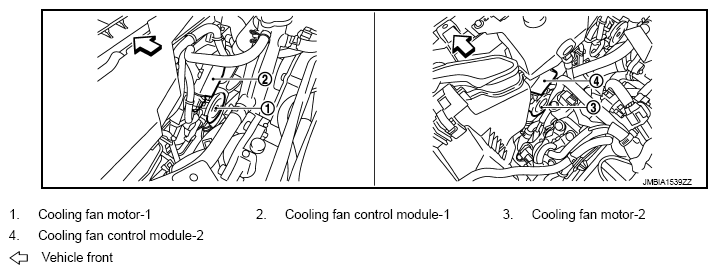

Fig 5: Cooling Fan Control Components Location (5 Of 25)

G09001197

Courtesy of NISSAN NORTH AMERICA, INC.

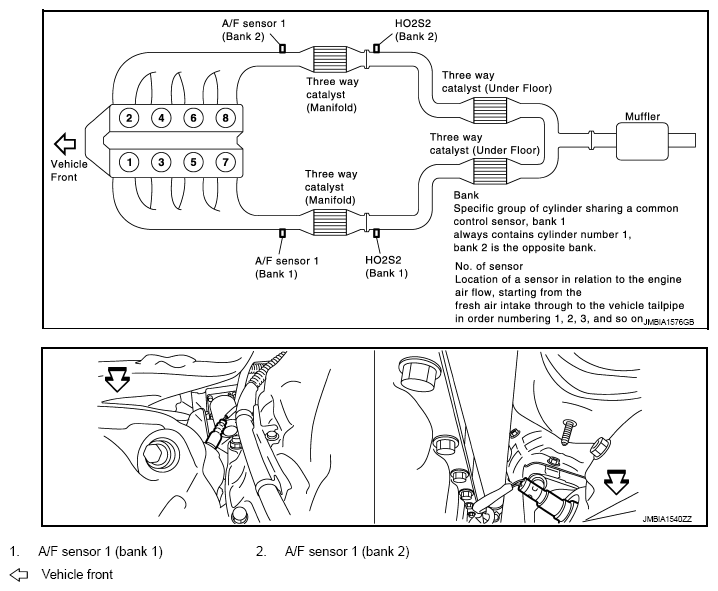

Fig 6: Cooling Fan Control Components Location (6 Of 25)

G09001198

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control Components Location (7 Of 25)

G09001199

Courtesy of NISSAN NORTH AMERICA, INC.

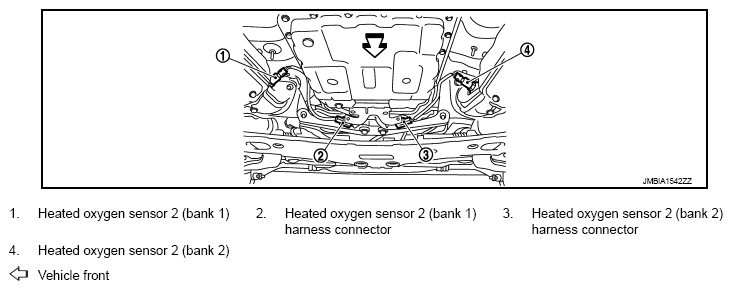

Fig 8: Cooling Fan Control Components Location (8 Of 25)

G09001200

Courtesy of NISSAN NORTH AMERICA, INC.

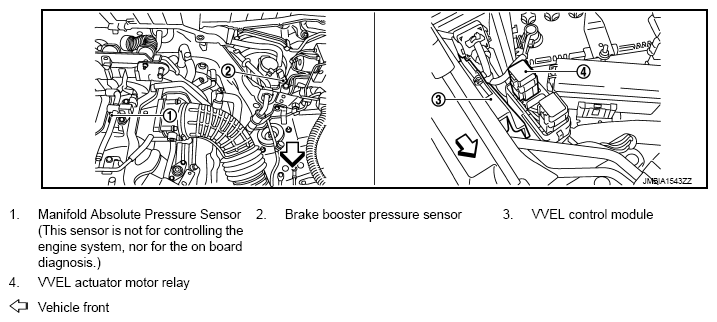

Fig 9: Cooling Fan Control Components Location (9 Of 25)

G09001201

Courtesy of NISSAN NORTH AMERICA, INC.

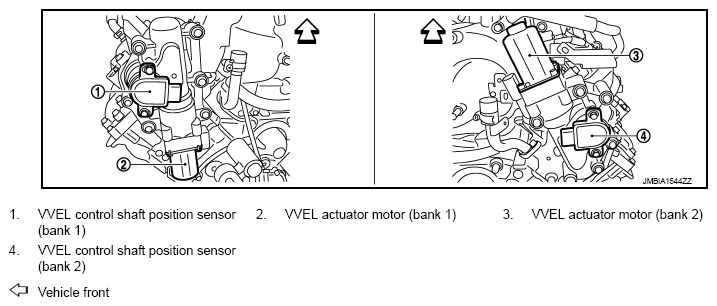

Fig 10: Cooling Fan Control Components Location (10 Of 25)

G09001202

Courtesy of NISSAN NORTH AMERICA, INC.

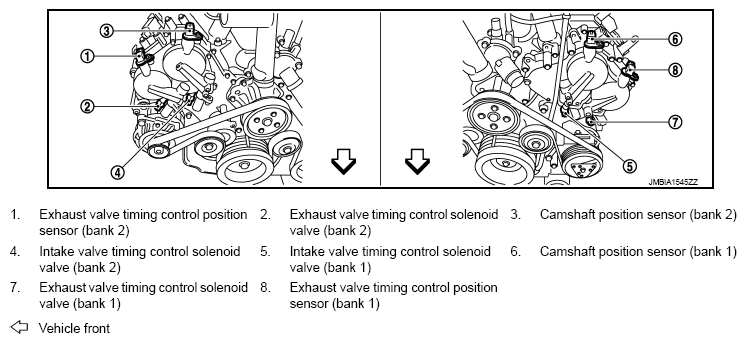

Fig 11: Cooling Fan Control Components Location (11 Of 25)

G09001203

Courtesy of NISSAN NORTH AMERICA, INC.

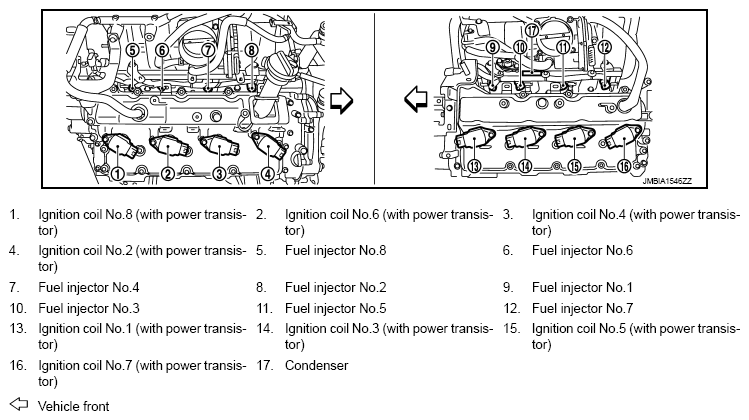

Fig 12: Cooling Fan Control Components Location (12 Of 25)

G09001204

Courtesy of NISSAN NORTH AMERICA, INC.

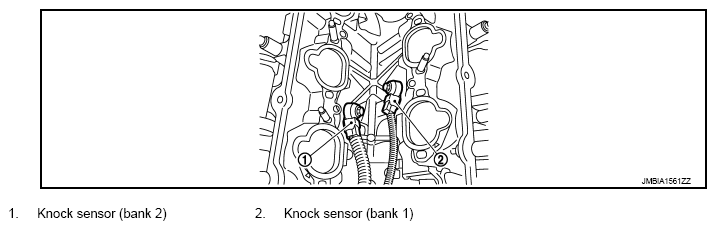

Fig 13: Cooling Fan Control Components Location (13 Of 25)

G09001205

Courtesy of NISSAN NORTH AMERICA, INC.

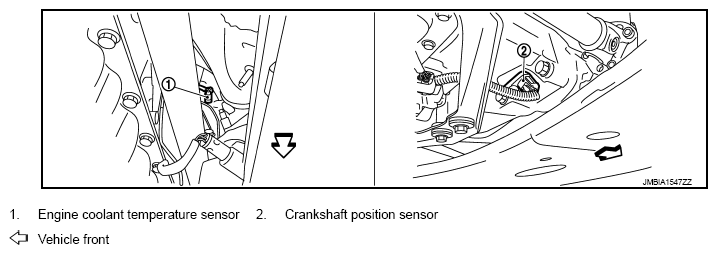

Fig 14: Cooling Fan Control Components Location (14 Of 25)

G09001206

Courtesy of NISSAN NORTH AMERICA, INC.

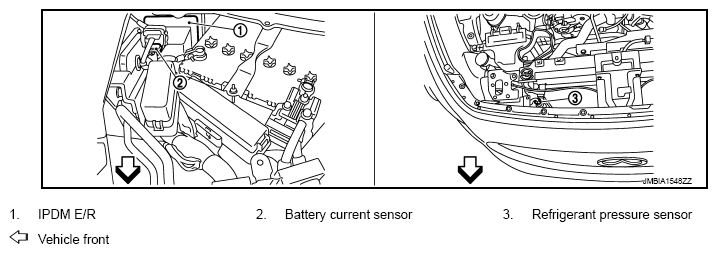

Fig 15: Cooling Fan Control Components Location (15 Of 25)

G09001207

Courtesy of NISSAN NORTH AMERICA, INC.

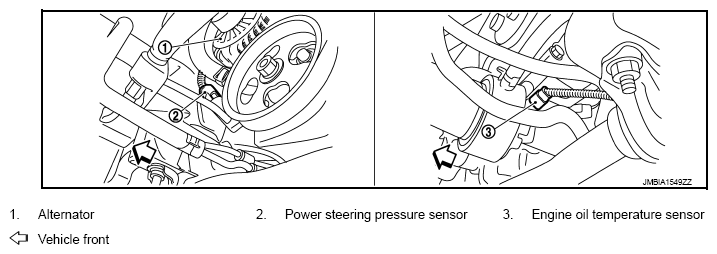

Fig 16: Cooling Fan Control Components Location (16 Of 25)

G09001208

Courtesy of NISSAN NORTH AMERICA, INC.

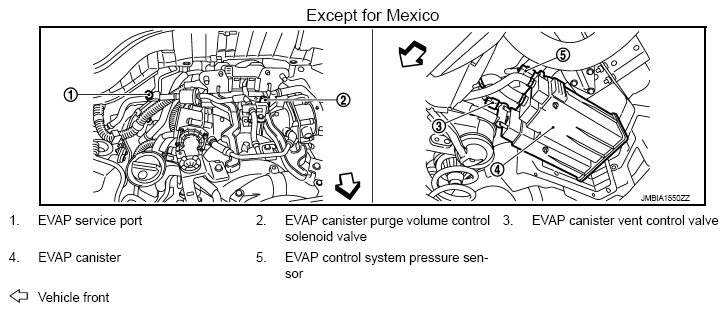

Fig 17: Cooling Fan Control Components Location (17 Of 25)

G09001209

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Cooling Fan Control Components Location (18 Of 25)

G09001210

Courtesy of NISSAN NORTH AMERICA, INC.

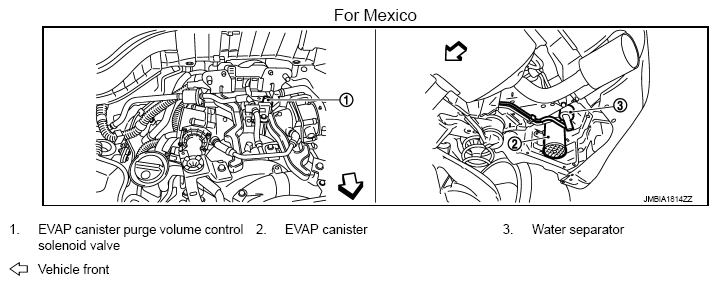

Fig 19: Cooling Fan Control Components Location (19 Of 25)

G09001211

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Cooling Fan Control Components Location (20 Of 25)

G09001212

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Cooling Fan Control Components Location (21 Of 25)

G09001213

Courtesy of NISSAN NORTH AMERICA, INC.

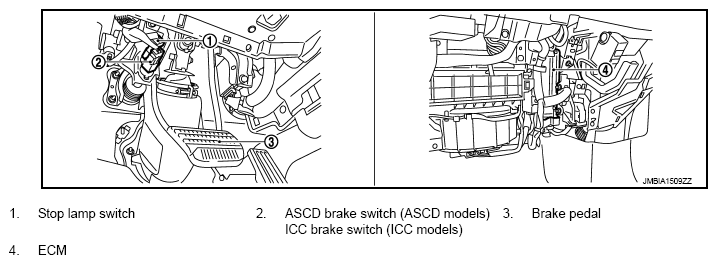

Fig 22: Cooling Fan Control Components Location (22 Of 25)

G09001214

Courtesy of NISSAN NORTH AMERICA, INC.

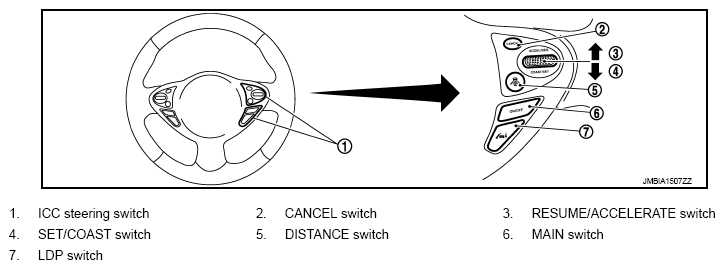

Fig 23: Cooling Fan Control Components Location (23 Of 25)

G09001215

Courtesy of NISSAN NORTH AMERICA, INC.

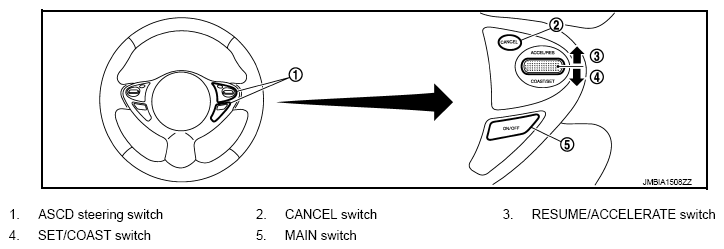

Fig 24: Cooling Fan Control Components Location (24 Of 25)

G09001216

Courtesy of NISSAN NORTH AMERICA, INC.

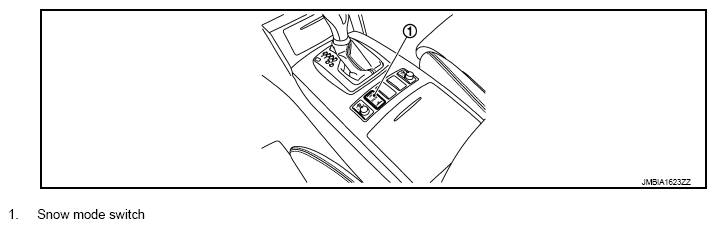

Fig 25: Cooling Fan Control Components Location (25 Of 25)

G09001217

Courtesy of NISSAN NORTH AMERICA, INC.
