Component Parts Location

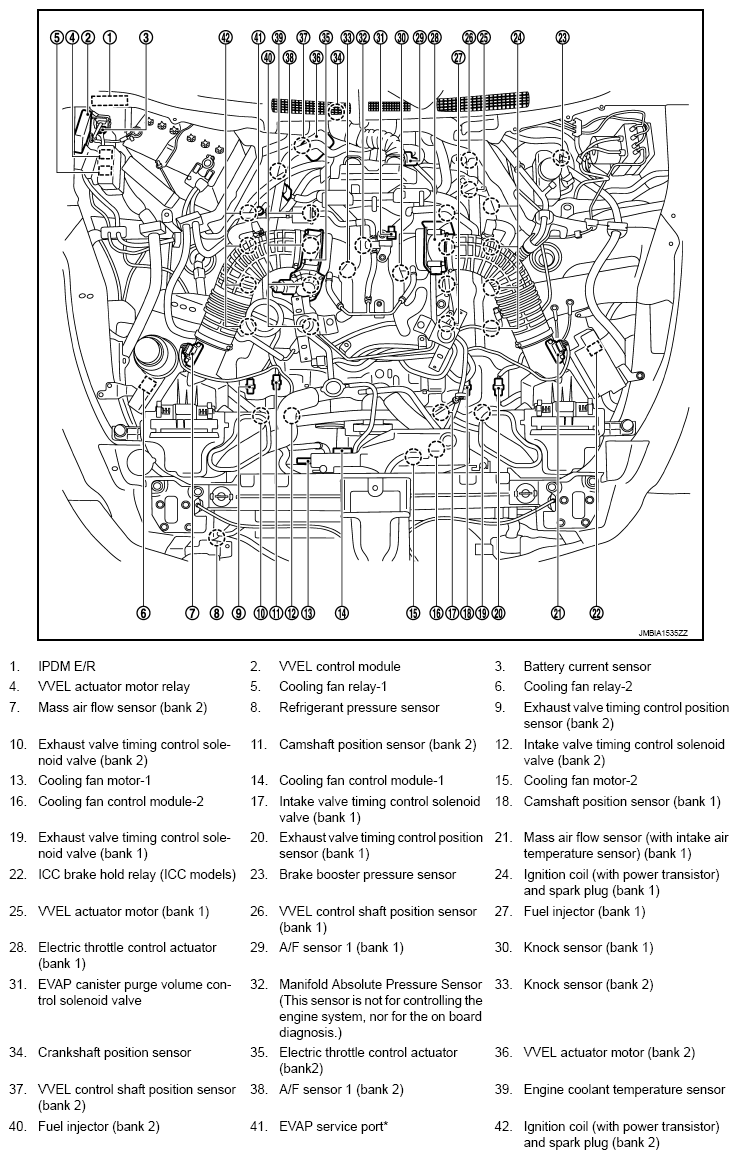

Fig 1: Electric Ignition System Components Location (1 Of 25)

G09001115

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

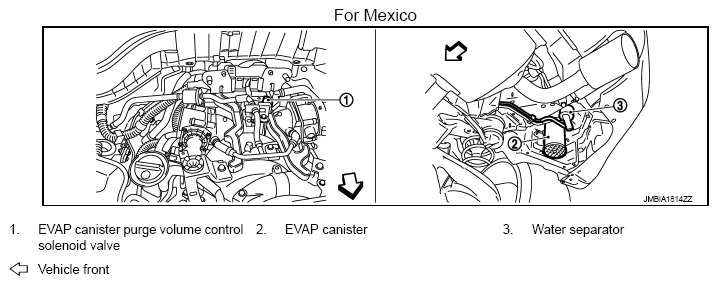

Fig 2: Electric Ignition System Components Location (2 Of 25)

G09001116

Courtesy of NISSAN NORTH AMERICA, INC.

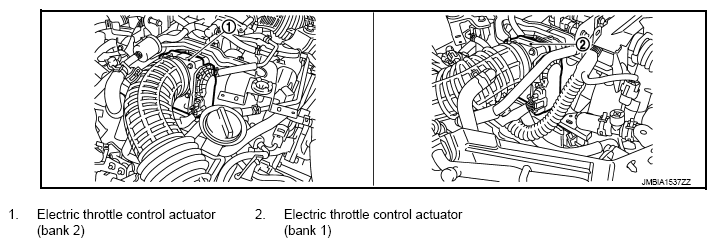

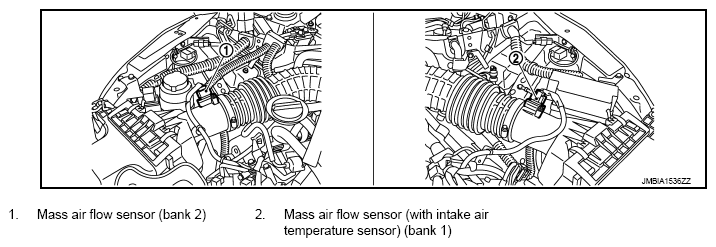

Fig 3: Electric Ignition System Components Location (3 Of 25)

G09001117

Courtesy of NISSAN NORTH AMERICA, INC.

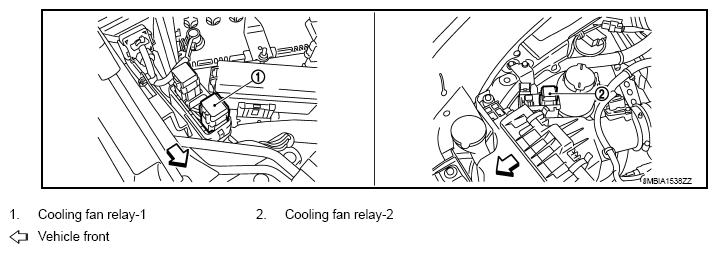

Fig 4: Electric Ignition System Components Location (4 Of 25)

G09001118

Courtesy of NISSAN NORTH AMERICA, INC.

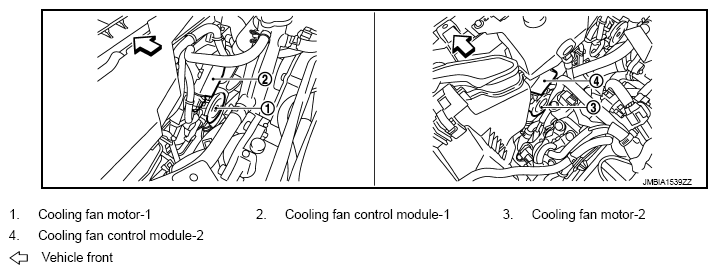

Fig 5: Electric Ignition System Components Location (5 Of 25)

G09001119

Courtesy of NISSAN NORTH AMERICA, INC.

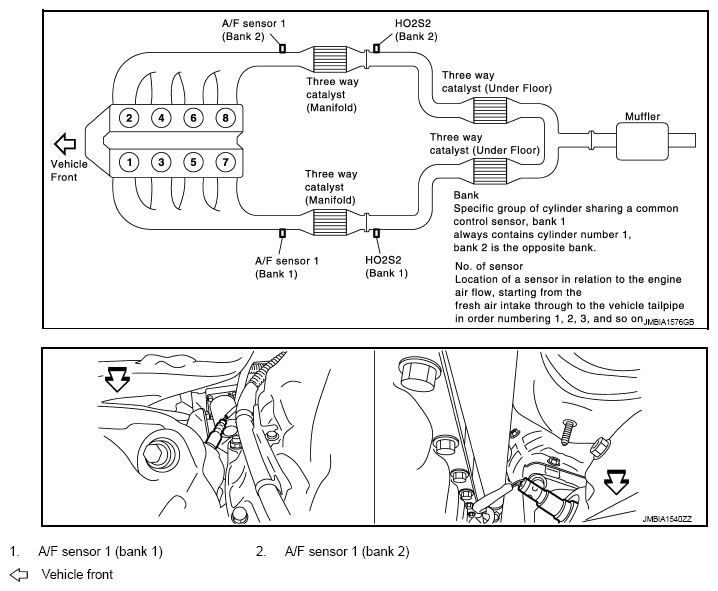

Fig 6: Electric Ignition System Components Location (6 Of 25)

G09001120

Courtesy of NISSAN NORTH AMERICA, INC.

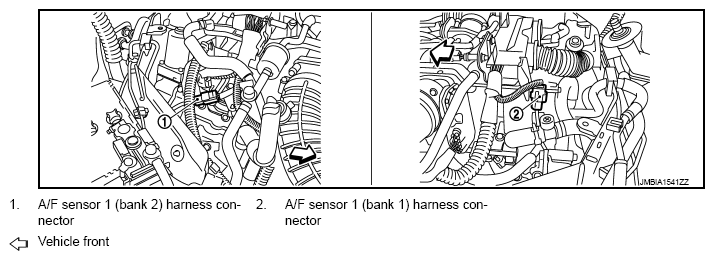

Fig 7: Electric Ignition System Components Location (7 Of 25)

G09001121

Courtesy of NISSAN NORTH AMERICA, INC.

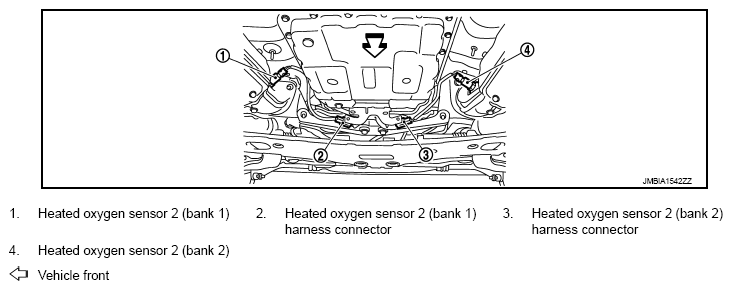

Fig 8: Electric Ignition System Components Location (8 Of 25)

G09001122

Courtesy of NISSAN NORTH AMERICA, INC.

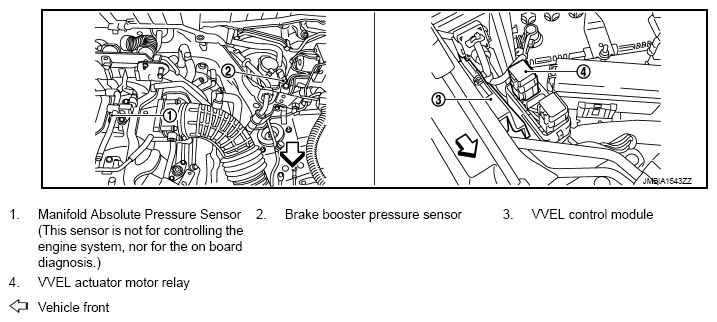

Fig 9: Electric Ignition System Components Location (9 Of 25)

G09001123

Courtesy of NISSAN NORTH AMERICA, INC.

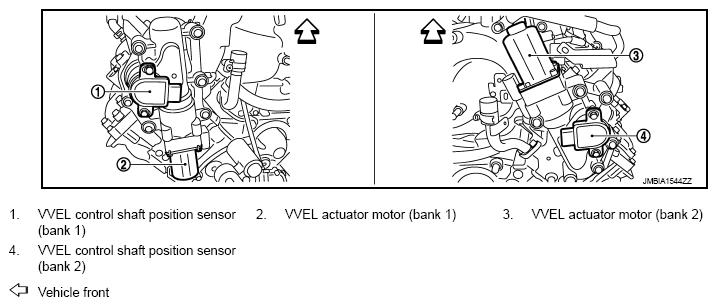

Fig 10: Electric Ignition System Components Location (10 Of 25)

G09001124

Courtesy of NISSAN NORTH AMERICA, INC.

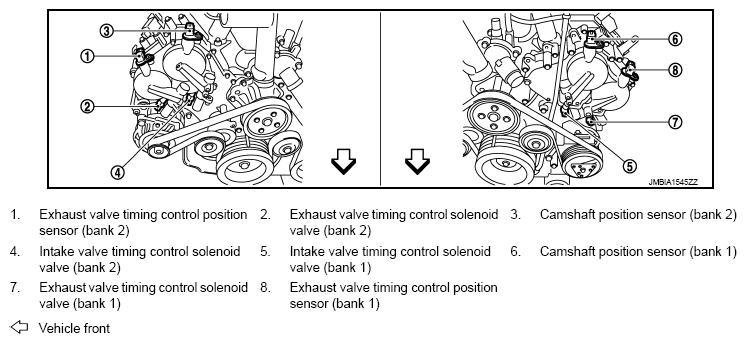

Fig 11: Electric Ignition System Components Location (11 Of 25)

G09001125

Courtesy of NISSAN NORTH AMERICA, INC.

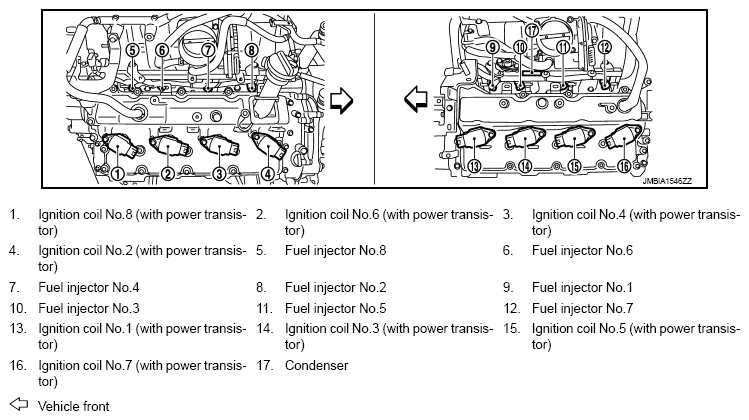

Fig 12: Electric Ignition System Components Location (12 Of 25)

G09001126

Courtesy of NISSAN NORTH AMERICA, INC.

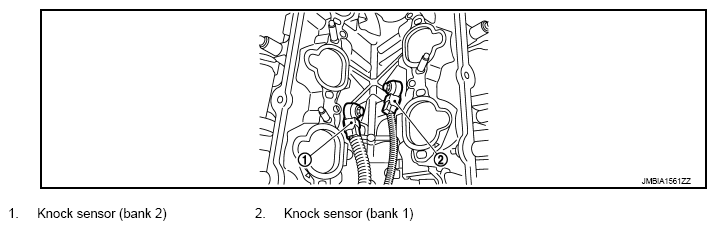

Fig 13: Electric Ignition System Components Location (13 Of 25)

G09001127

Courtesy of NISSAN NORTH AMERICA, INC.

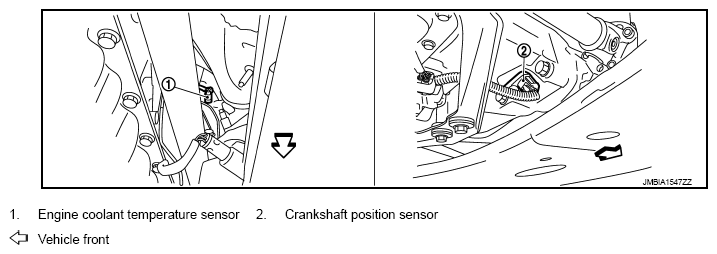

Fig 14: Electric Ignition System Components Location (14 Of 25)

G09001128

Courtesy of NISSAN NORTH AMERICA, INC.

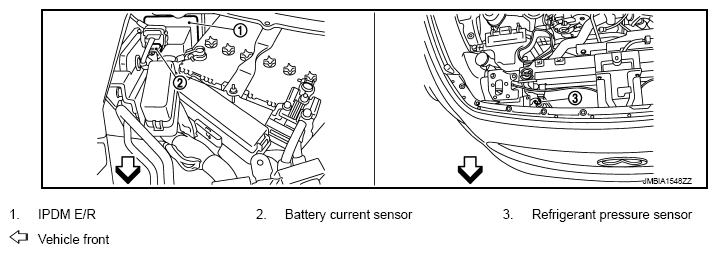

Fig 15: Electric Ignition System Components Location (15 Of 25)

G09001129

Courtesy of NISSAN NORTH AMERICA, INC.

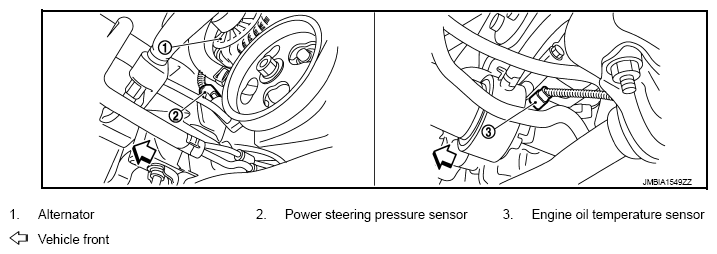

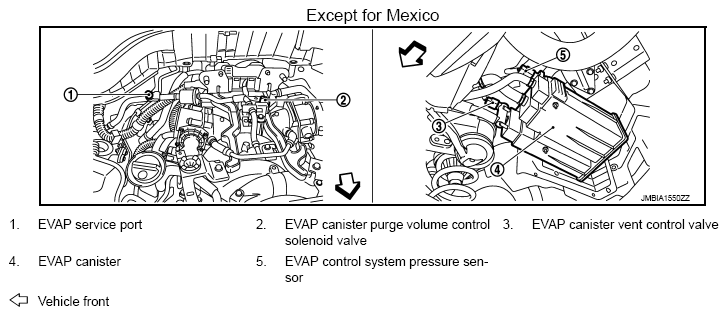

Fig 16: Electric Ignition System Components Location (16 Of 25)

G09001130

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Electric Ignition System Components Location (17 Of 25)

G09001131

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Electric Ignition System Components Location (18 Of 25)

G09001132

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Electric Ignition System Components Location (19 Of 25)

G09001133

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Electric Ignition System Components Location (20 Of 25)

G09001134

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Electric Ignition System Components Location (21 Of 25)

G09001135

Courtesy of NISSAN NORTH AMERICA, INC.

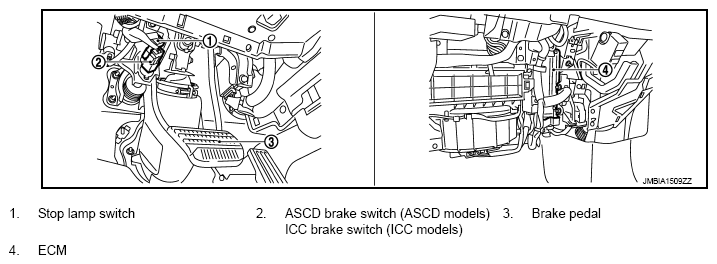

Fig 22: Electric Ignition System Components Location (22 Of 25)

G09001136

Courtesy of NISSAN NORTH AMERICA, INC.

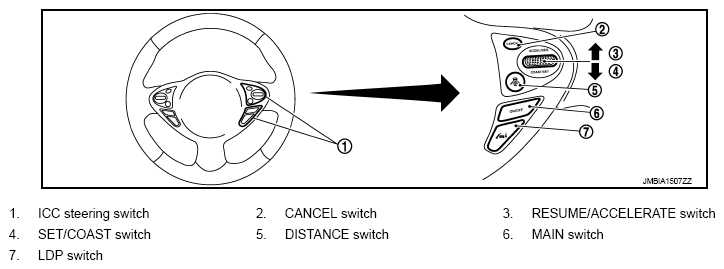

Fig 23: Electric Ignition System Components Location (23 Of 25)

G09001137

Courtesy of NISSAN NORTH AMERICA, INC.

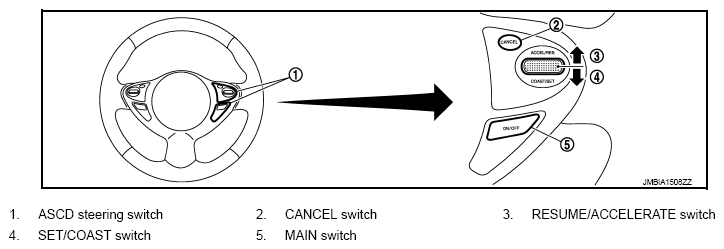

Fig 24: Electric Ignition System Components Location (24 Of 25)

G09001138

Courtesy of NISSAN NORTH AMERICA, INC.

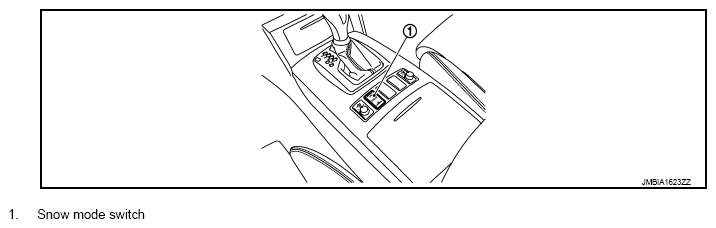

Fig 25: Electric Ignition System Components Location (25 Of 25)

G09001139

Courtesy of NISSAN NORTH AMERICA, INC.
