Component Parts Location

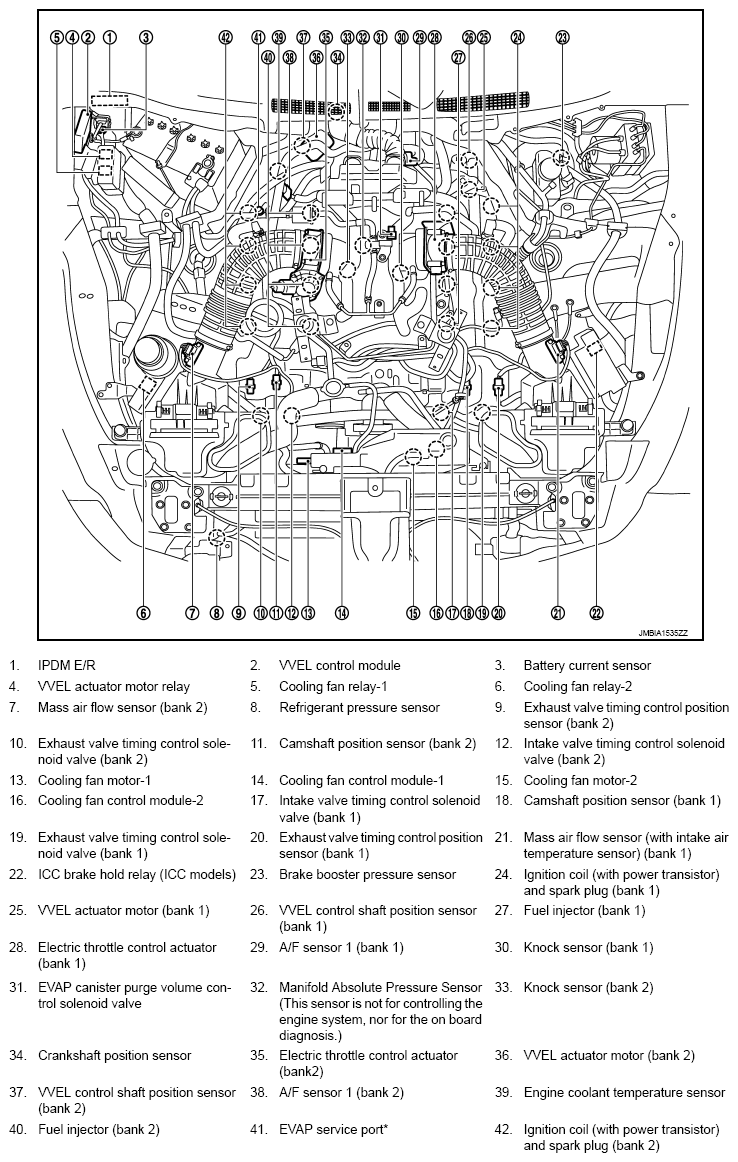

Fig 1: Engine Control System Components Location (1 Of 25)

G09001061

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

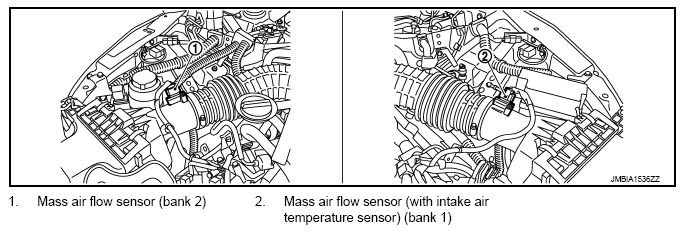

Fig 2: Engine Control System Components Location (2 Of 25)

G09001062

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Engine Control System Components Location (3 Of 25)

G09001063

Courtesy of NISSAN NORTH AMERICA, INC.

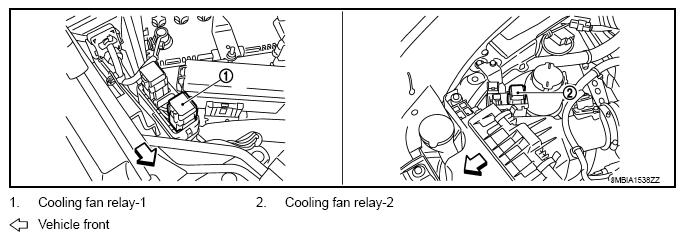

Fig 4: Engine Control System Components Location (4 Of 25)

G09001064

Courtesy of NISSAN NORTH AMERICA, INC.

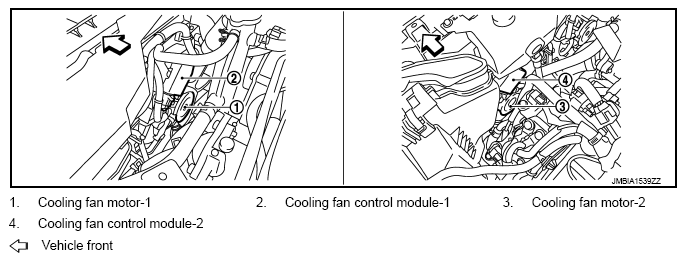

Fig 5: Engine Control System Components Location (5 Of 25)

G09001065

Courtesy of NISSAN NORTH AMERICA, INC.

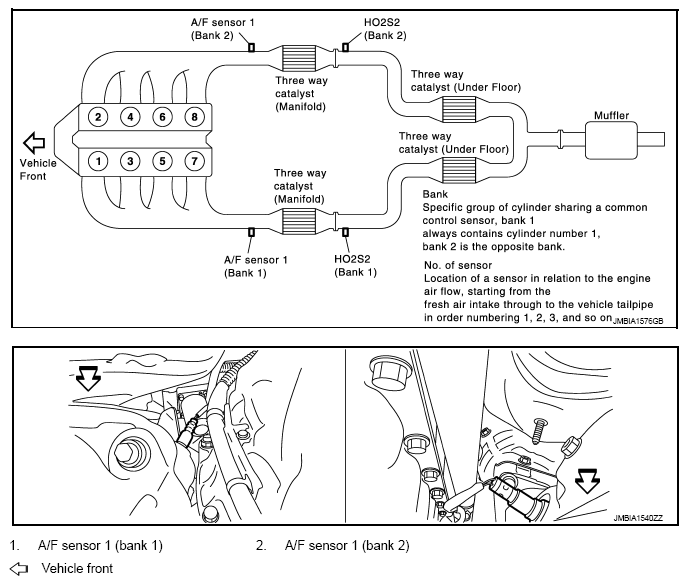

Fig 6: Engine Control System Components Location (6 Of 25)

G09001066

Courtesy of NISSAN NORTH AMERICA, INC.

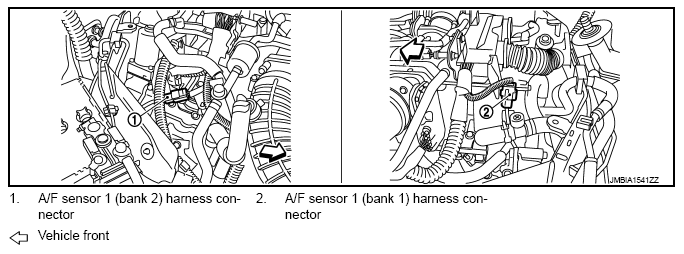

Fig 7: Engine Control System Components Location (7 Of 25)

G09001067

Courtesy of NISSAN NORTH AMERICA, INC.

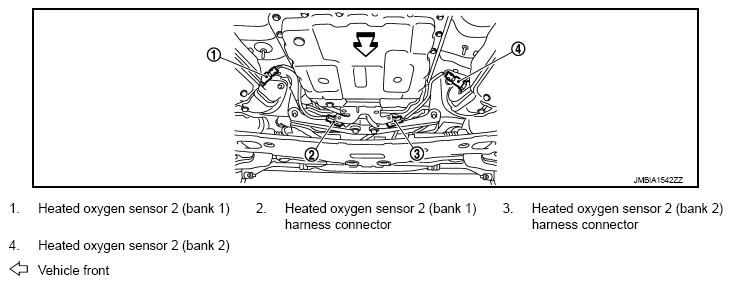

Fig 8: Engine Control System Components Location (8 Of 25)

G09001068

Courtesy of NISSAN NORTH AMERICA, INC.

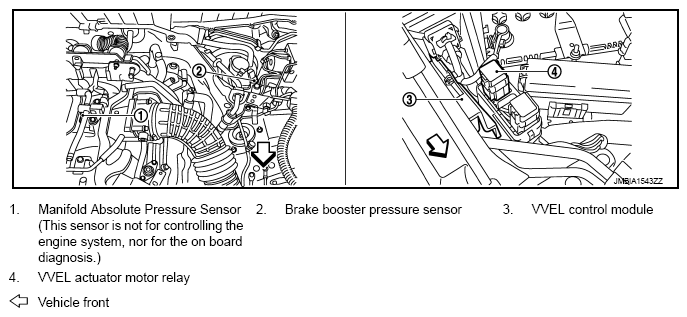

Fig 9: Engine Control System Components Location (9 Of 25)

G09001069

Courtesy of NISSAN NORTH AMERICA, INC.

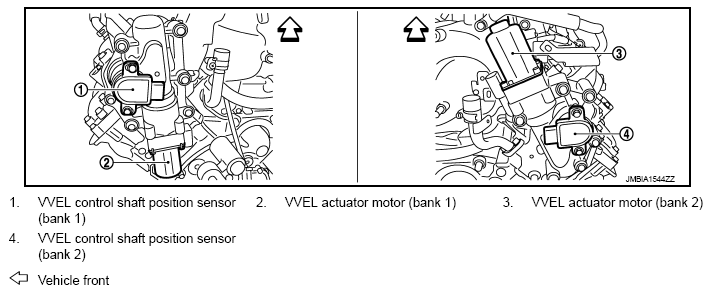

Fig 10: Engine Control System Components Location (10 Of 25)

G09001070

Courtesy of NISSAN NORTH AMERICA, INC.

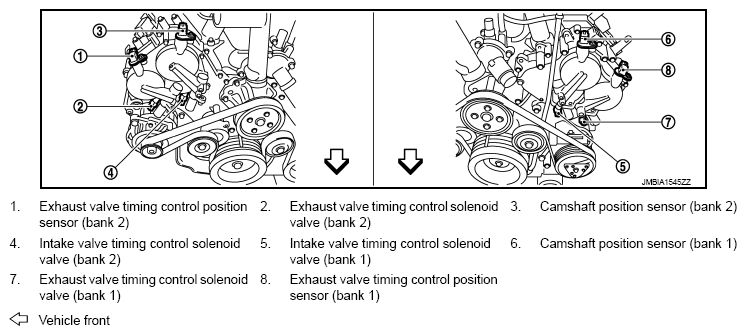

Fig 11: Engine Control System Components Location (11 Of 25)

G09001071

Courtesy of NISSAN NORTH AMERICA, INC.

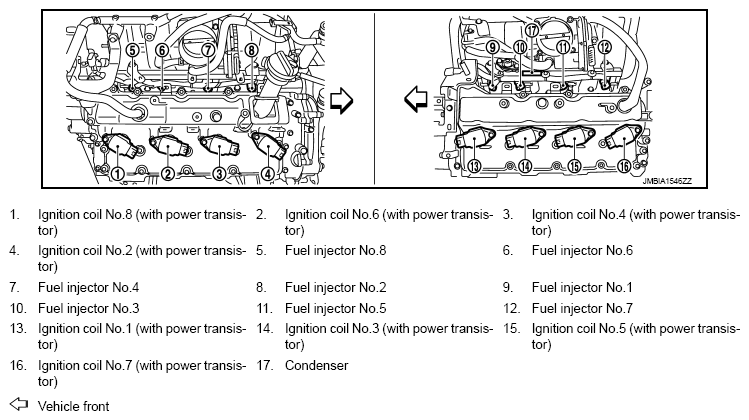

Fig 12: Engine Control System Components Location (12 Of 25)

G09001072

Courtesy of NISSAN NORTH AMERICA, INC.

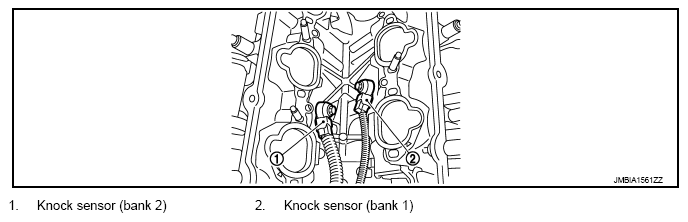

Fig 13: Engine Control System Components Location (13 Of 25)

G09001073

Courtesy of NISSAN NORTH AMERICA, INC.

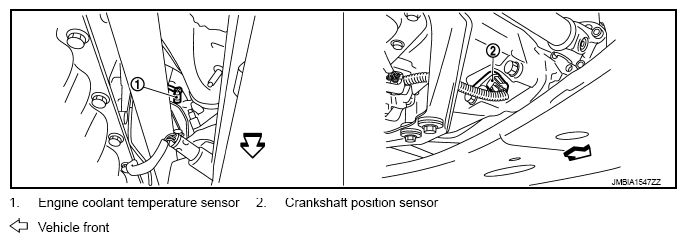

Fig 14: Engine Control System Components Location (14 Of 25)

G09001074

Courtesy of NISSAN NORTH AMERICA, INC.

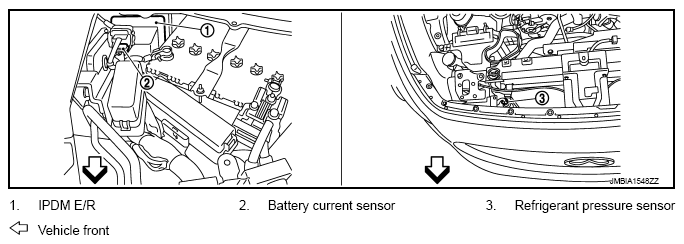

Fig 15: Engine Control System Components Location (15 Of 25)

G09001075

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Components Location (16 Of 25)

G09001076

Courtesy of NISSAN NORTH AMERICA, INC.

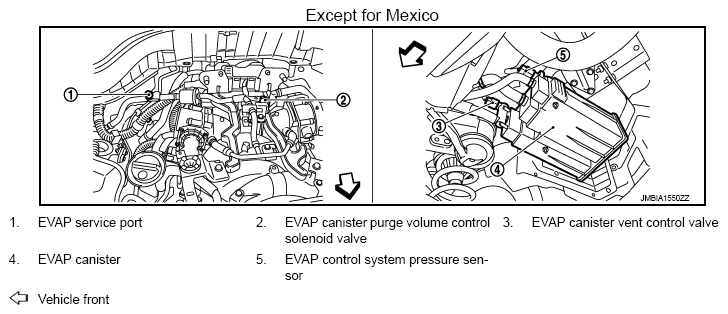

Fig 17: Engine Control System Components Location (17 Of 25)

G09001077

Courtesy of NISSAN NORTH AMERICA, INC.

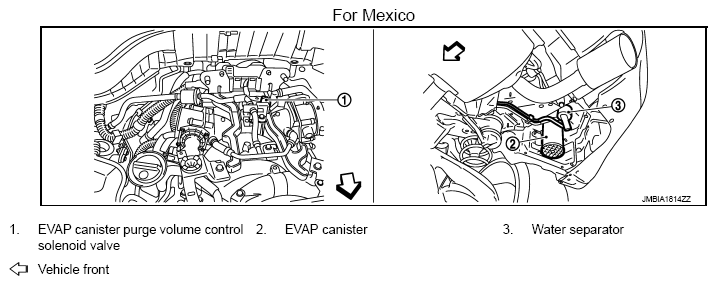

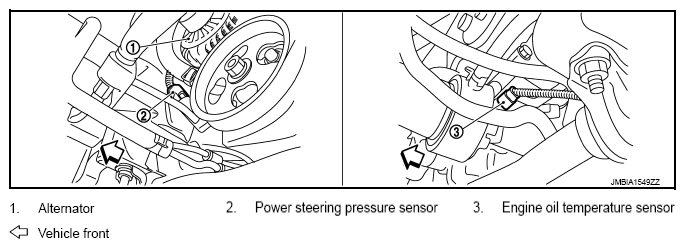

Fig 18: Engine Control System Components Location (18 Of 25)

G09001078

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Engine Control System Components Location (19 Of 25)

G09001079

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Engine Control System Components Location (20 Of 25)

G09001080

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Engine Control System Components Location (21 Of 25)

G09001081

Courtesy of NISSAN NORTH AMERICA, INC.

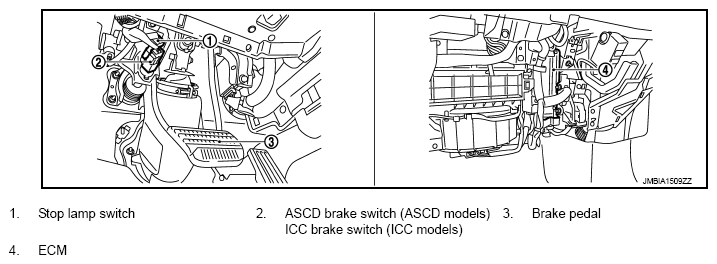

Fig 22: Engine Control System Components Location (22 Of 25)

G09001082

Courtesy of NISSAN NORTH AMERICA, INC.

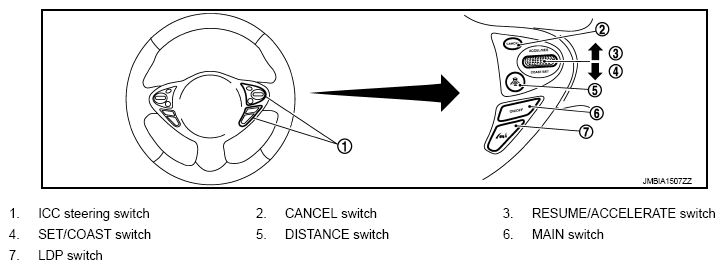

Fig 23: Engine Control System Components Location (23 Of 25)

G09001083

Courtesy of NISSAN NORTH AMERICA, INC.

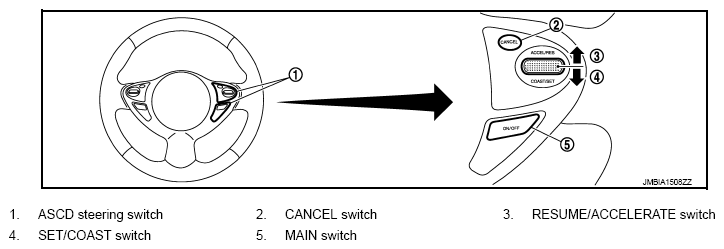

Fig 24: Engine Control System Components Location (24 Of 25)

G09001084

Courtesy of NISSAN NORTH AMERICA, INC.

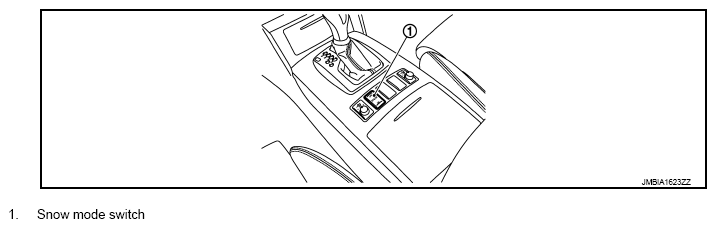

Fig 25: Engine Control System Components Location (25 Of 25)

G09001085

Courtesy of NISSAN NORTH AMERICA, INC.
