Component Parts Location

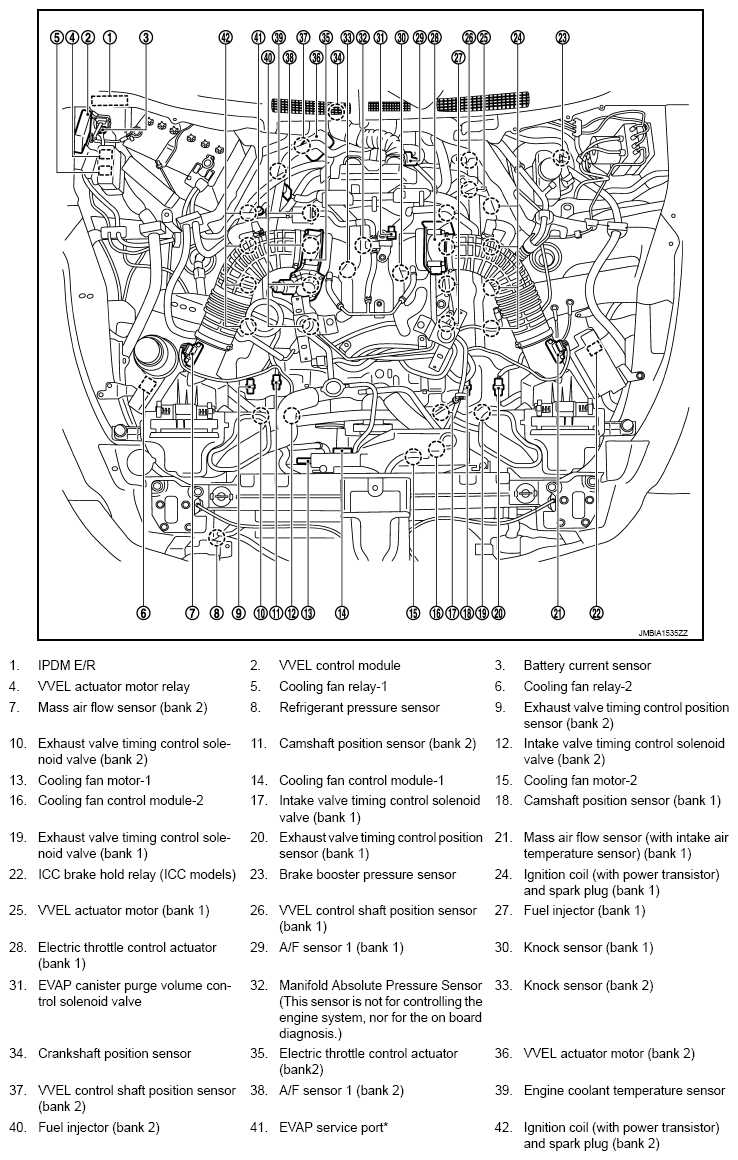

Fig 1: Evaporative Emission System Components Location (1 Of 25)

G09001220

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

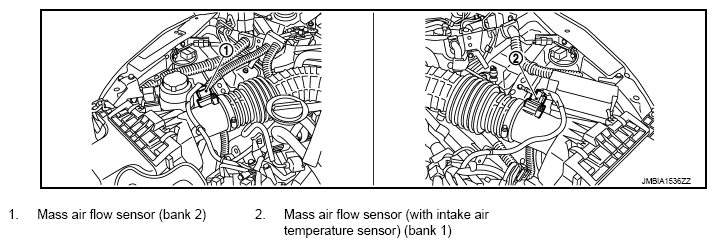

Fig 2: Evaporative Emission System Components Location (2 Of 25)

G09001221

Courtesy of NISSAN NORTH AMERICA, INC.

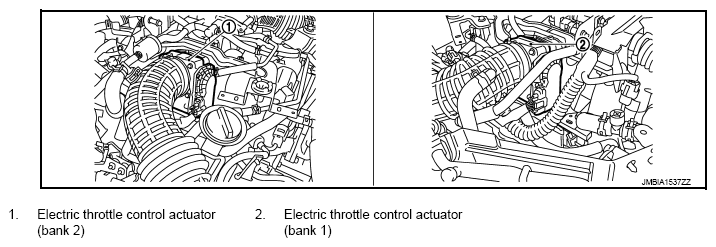

Fig 3: Evaporative Emission System Components Location (3 Of 25)

G09001222

Courtesy of NISSAN NORTH AMERICA, INC.

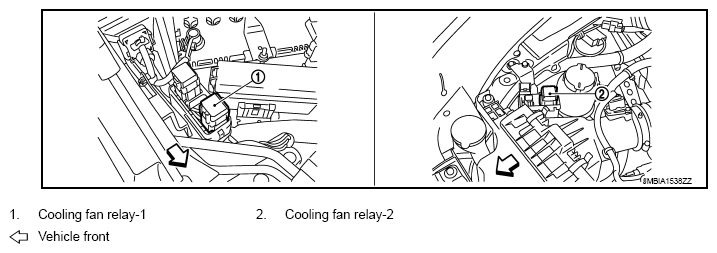

Fig 4: Evaporative Emission System Components Location (4 Of 25)

G09001223

Courtesy of NISSAN NORTH AMERICA, INC.

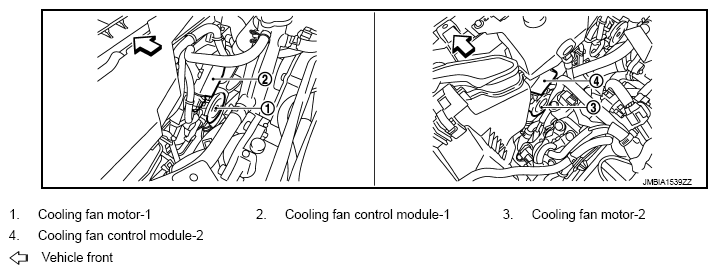

Fig 5: Evaporative Emission System Components Location (5 Of 25)

G09001224

Courtesy of NISSAN NORTH AMERICA, INC.

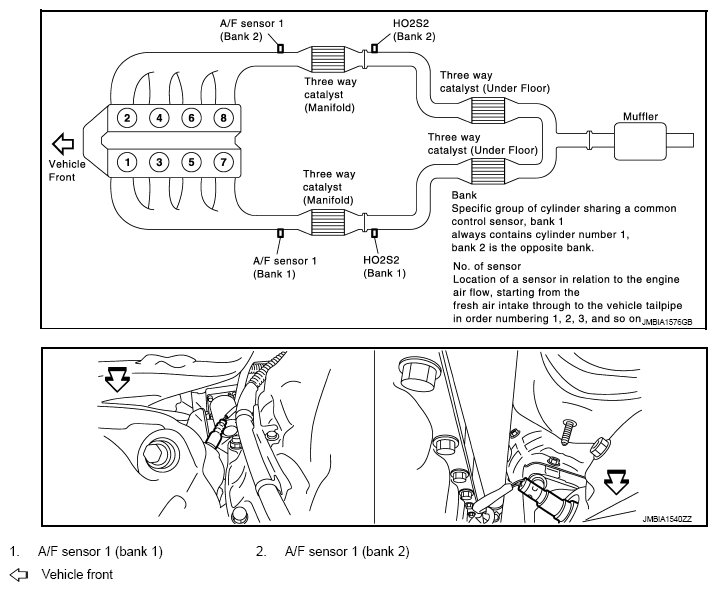

Fig 6: Evaporative Emission System Components Location (6 Of 25)

G09001225

Courtesy of NISSAN NORTH AMERICA, INC.

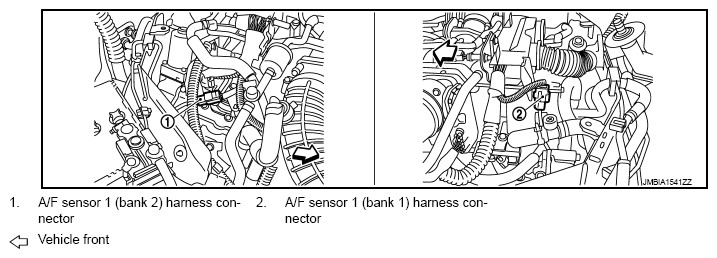

Fig 7: Evaporative Emission System Components Location (7 Of 25)

G09001226

Courtesy of NISSAN NORTH AMERICA, INC.

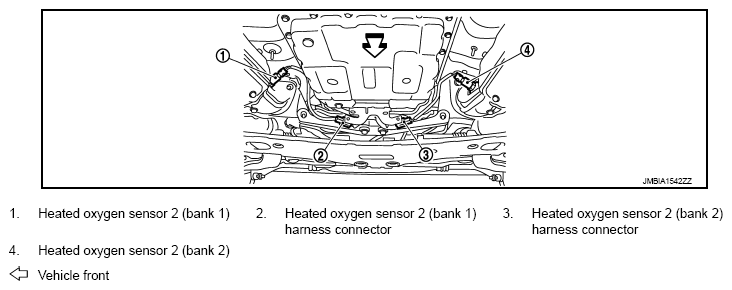

Fig 8: Evaporative Emission System Components Location (8 Of 25)

G09001227

Courtesy of NISSAN NORTH AMERICA, INC.

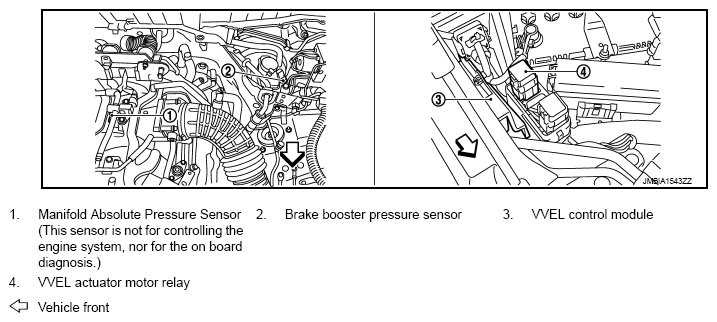

Fig 9: Evaporative Emission System Components Location (9 Of 25)

G09001228

Courtesy of NISSAN NORTH AMERICA, INC.

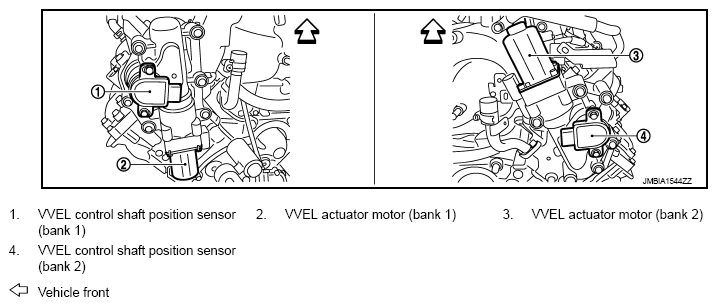

Fig 10: Evaporative Emission System Components Location (10 Of 25)

G09001229

Courtesy of NISSAN NORTH AMERICA, INC.

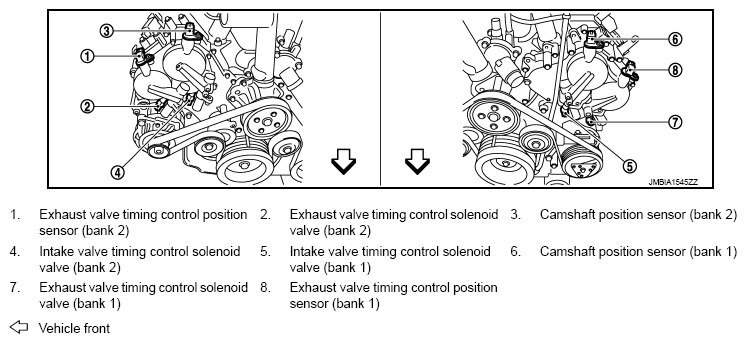

Fig 11: Evaporative Emission System Components Location (11 Of 25)

G09001230

Courtesy of NISSAN NORTH AMERICA, INC.

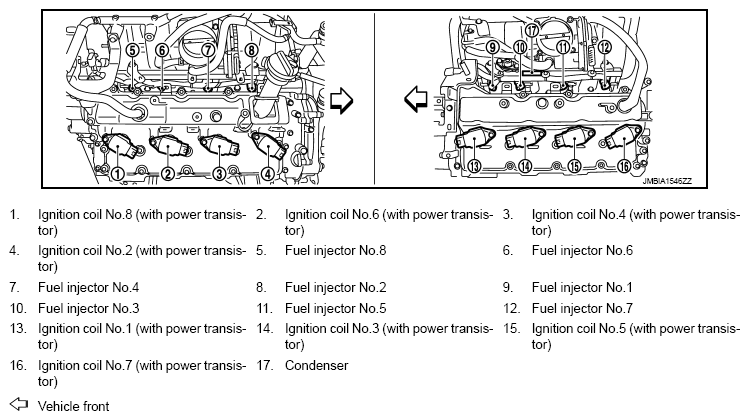

Fig 12: Evaporative Emission System Components Location (12 Of 25)

G09001231

Courtesy of NISSAN NORTH AMERICA, INC.

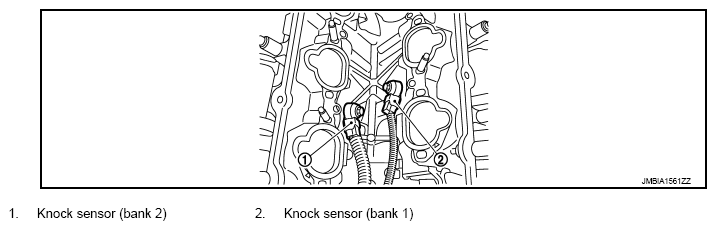

Fig 13: Evaporative Emission System Components Location (13 Of 25)

G09001232

Courtesy of NISSAN NORTH AMERICA, INC.

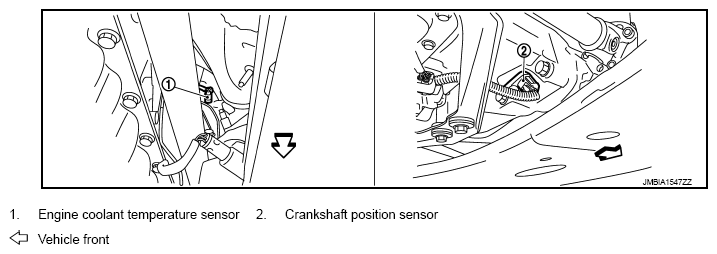

Fig 14: Evaporative Emission System Components Location (14 Of 25)

G09001233

Courtesy of NISSAN NORTH AMERICA, INC.

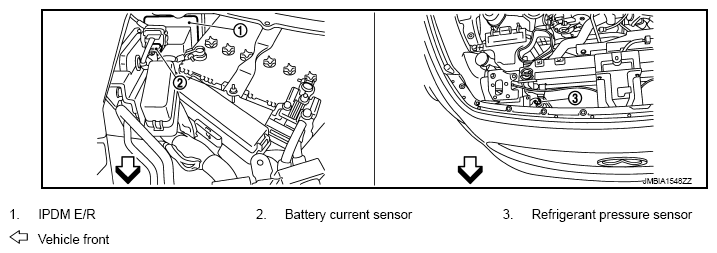

Fig 15: Evaporative Emission System Components Location (15 Of 25)

G09001234

Courtesy of NISSAN NORTH AMERICA, INC.

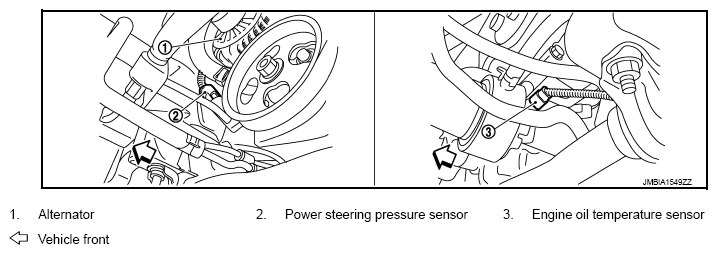

Fig 16: Evaporative Emission System Components Location (16 Of 25)

G09001235

Courtesy of NISSAN NORTH AMERICA, INC.

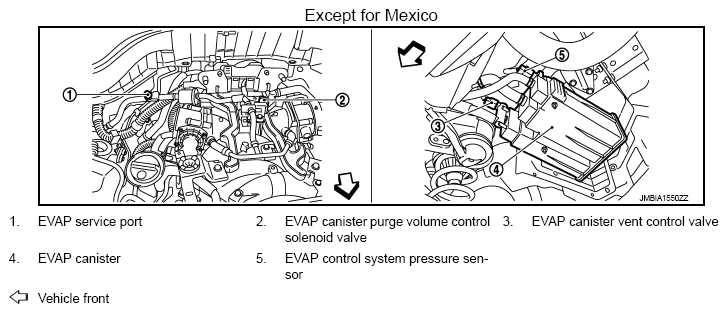

Fig 17: Evaporative Emission System Components Location (17 Of 25)

G09001236

Courtesy of NISSAN NORTH AMERICA, INC.

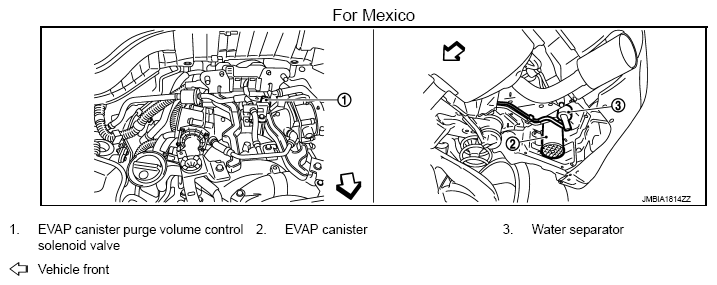

Fig 18: Evaporative Emission System Components Location (18 Of 25)

G09001237

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Evaporative Emission System Components Location (19 Of 25)

G09001238

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Evaporative Emission System Components Location (20 Of 25)

G09001239

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Evaporative Emission System Components Location (21 Of 25)

G09001240

Courtesy of NISSAN NORTH AMERICA, INC.

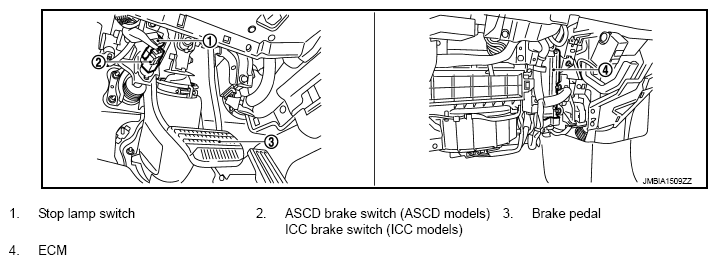

Fig 22: Evaporative Emission System Components Location (22 Of 25)

G09001241

Courtesy of NISSAN NORTH AMERICA, INC.

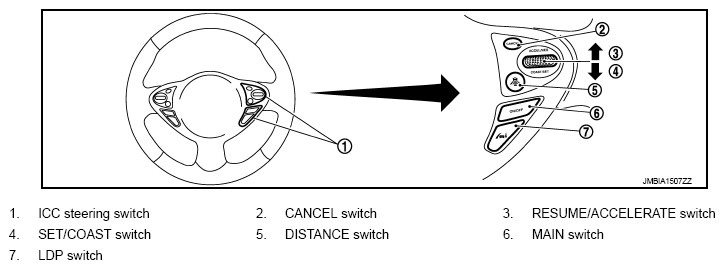

Fig 23: Evaporative Emission System Components Location (23 Of 25)

G09001242

Courtesy of NISSAN NORTH AMERICA, INC.

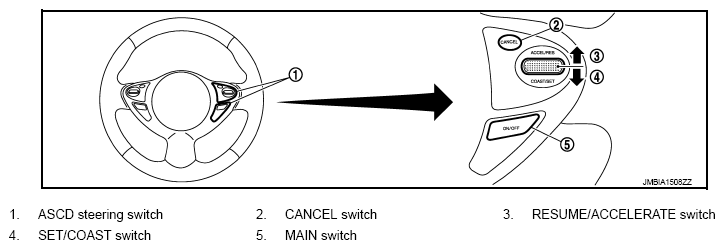

Fig 24: Evaporative Emission System Components Location (24 Of 25)

G09001243

Courtesy of NISSAN NORTH AMERICA, INC.

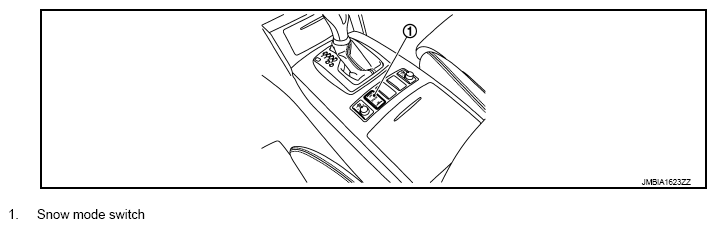

Fig 25: Evaporative Emission System Components Location (25 Of 25)

G09001244

Courtesy of NISSAN NORTH AMERICA, INC.
