Component Parts Location

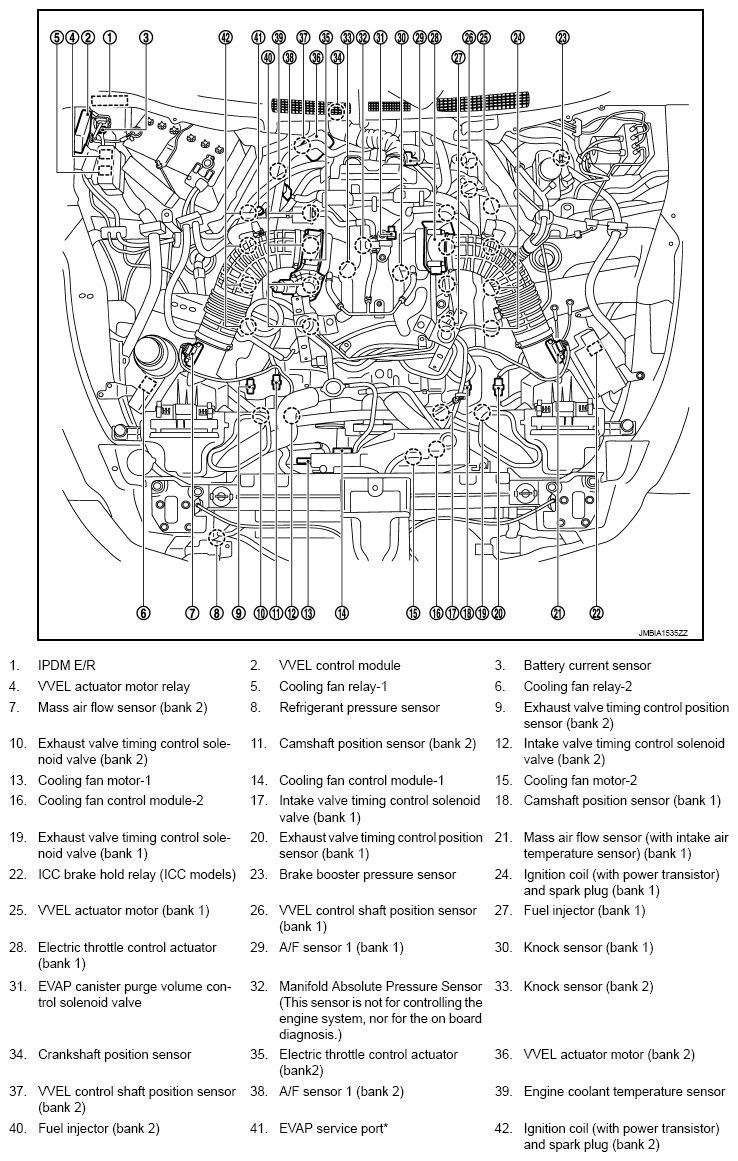

Fig 1: Fuel Pump Control Module Components Location (1 Of 25)

G09001272

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

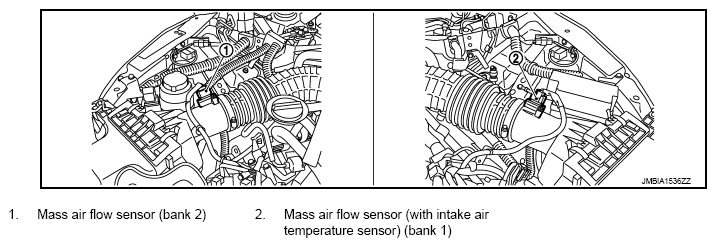

Fig 2: Fuel Pump Control Module Components Location (2 Of 25)

G09001273

Courtesy of NISSAN NORTH AMERICA, INC.

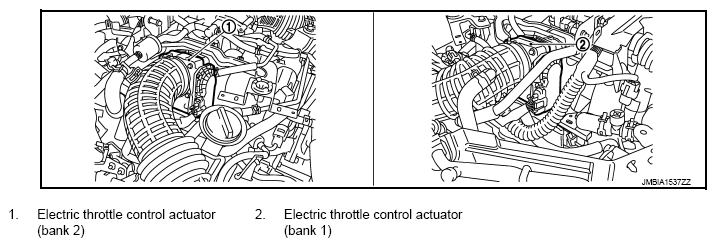

Fig 3: Fuel Pump Control Module Components Location (3 Of 25)

G09001274

Courtesy of NISSAN NORTH AMERICA, INC.

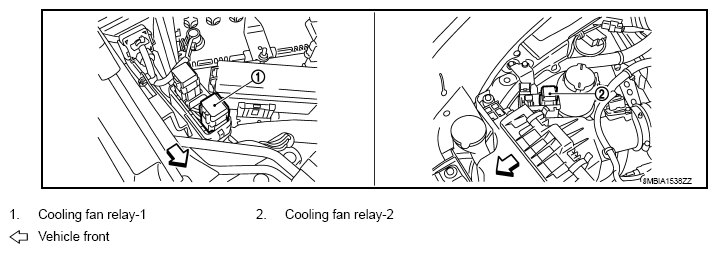

Fig 4: Fuel Pump Control Module Components Location (4 Of 25)

G09001275

Courtesy of NISSAN NORTH AMERICA, INC.

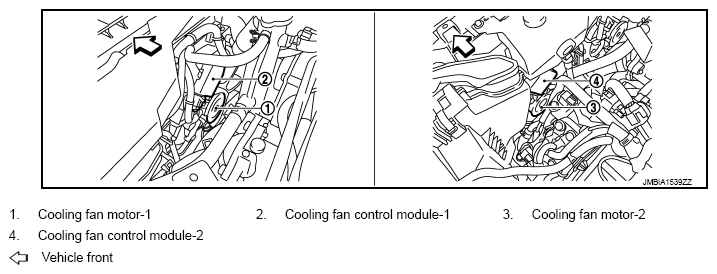

Fig 5: Fuel Pump Control Module Components Location (5 Of 25)

G09001276

Courtesy of NISSAN NORTH AMERICA, INC.

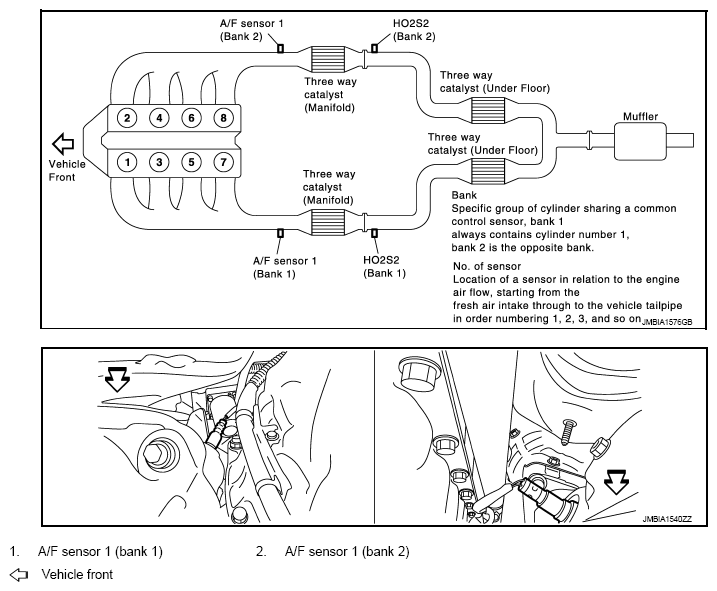

Fig 6: Fuel Pump Control Module Components Location (6 Of 25)

G09001277

Courtesy of NISSAN NORTH AMERICA, INC.

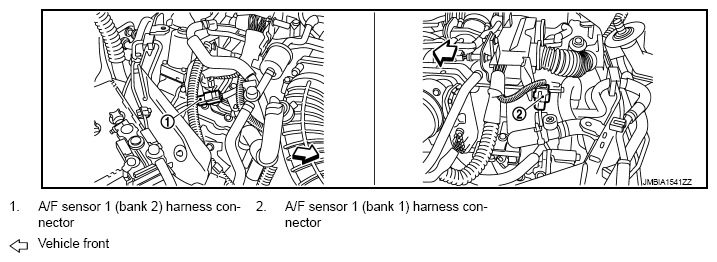

Fig 7: Fuel Pump Control Module Components Location (7 Of 25)

G09001278

Courtesy of NISSAN NORTH AMERICA, INC.

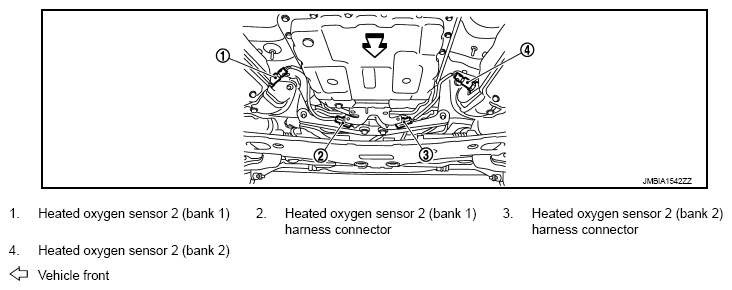

Fig 8: Fuel Pump Control Module Components Location (8 Of 25)

G09001279

Courtesy of NISSAN NORTH AMERICA, INC.

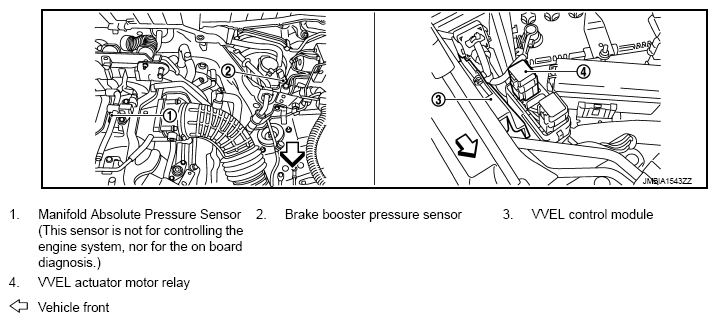

Fig 9: Fuel Pump Control Module Components Location (9 Of 25)

G09001280

Courtesy of NISSAN NORTH AMERICA, INC.

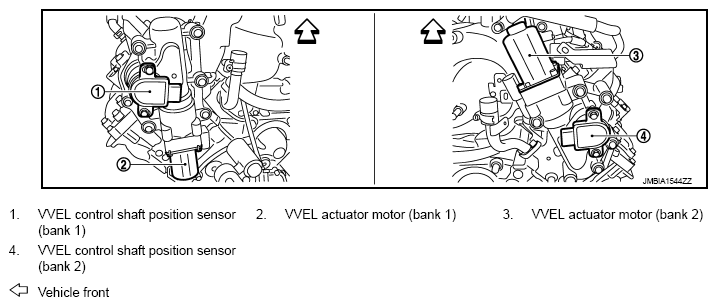

Fig 10: Fuel Pump Control Module Components Location (10 Of 25)

G09001281

Courtesy of NISSAN NORTH AMERICA, INC.

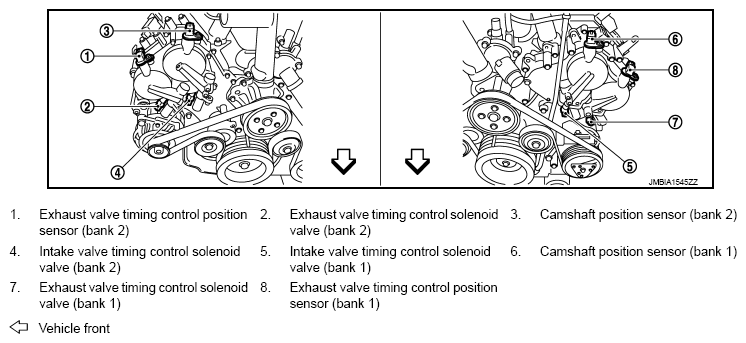

Fig 11: Fuel Pump Control Module Components Location (11 Of 25)

G09001282

Courtesy of NISSAN NORTH AMERICA, INC.

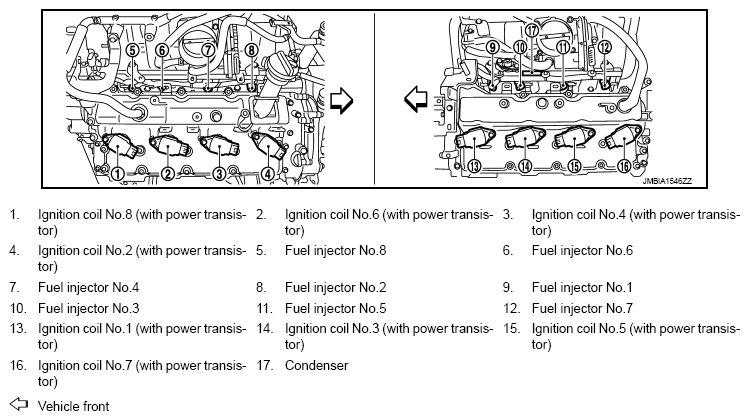

Fig 12: Fuel Pump Control Module Components Location (12 Of 25)

G09001283

Courtesy of NISSAN NORTH AMERICA, INC.

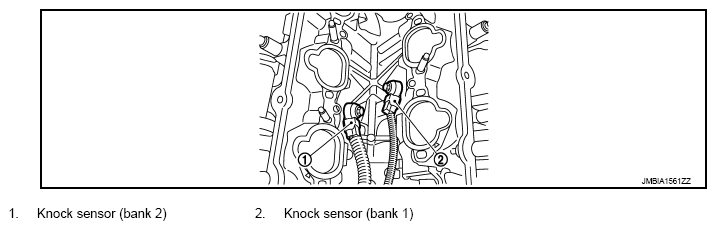

Fig 13: Fuel Pump Control Module Components Location (13 Of 25)

G09001284

Courtesy of NISSAN NORTH AMERICA, INC.

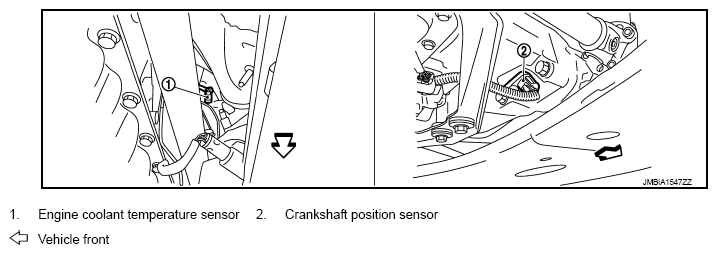

Fig 14: Fuel Pump Control Module Components Location (14 Of 25)

G09001285

Courtesy of NISSAN NORTH AMERICA, INC.

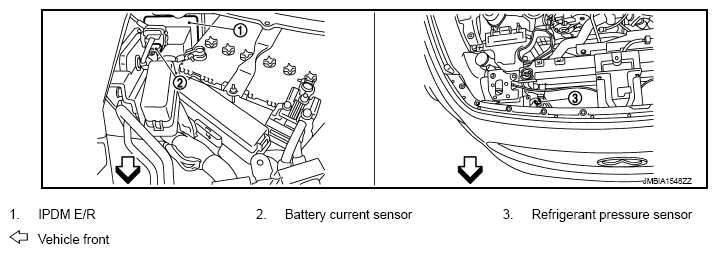

Fig 15: Fuel Pump Control Module Components Location (15 Of 25)

G09001286

Courtesy of NISSAN NORTH AMERICA, INC.

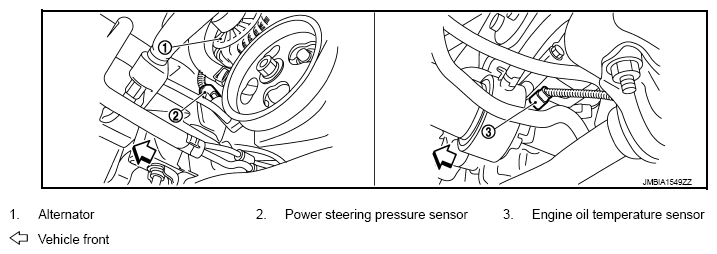

Fig 16: Fuel Pump Control Module Components Location (16 Of 25)

G09001287

Courtesy of NISSAN NORTH AMERICA, INC.

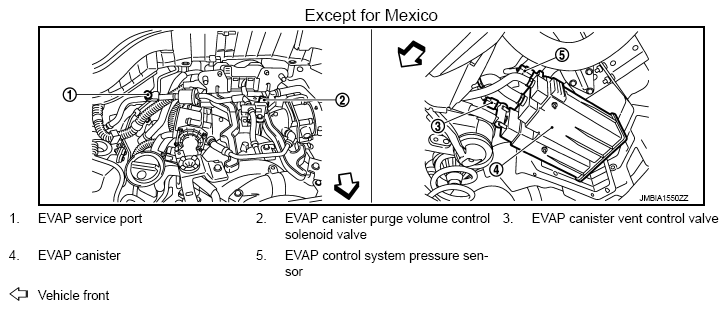

Fig 17: Fuel Pump Control Module Components Location (17 Of 25)

G09001288

Courtesy of NISSAN NORTH AMERICA, INC.

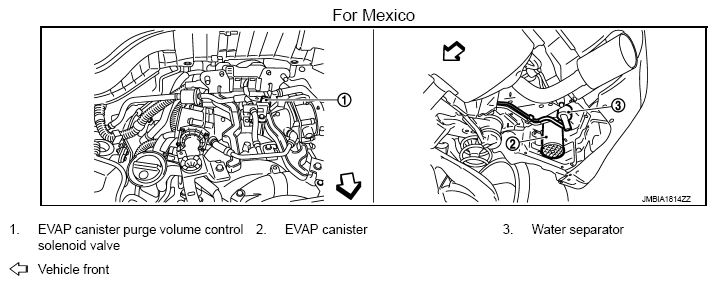

Fig 18: Fuel Pump Control Module Components Location (18 Of 25)

G09001289

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Fuel Pump Control Module Components Location (19 Of 25)

G09001290

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Fuel Pump Control Module Components Location (20 Of 25)

G09001291

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Fuel Pump Control Module Components Location (21 Of 25)

G09001292

Courtesy of NISSAN NORTH AMERICA, INC.

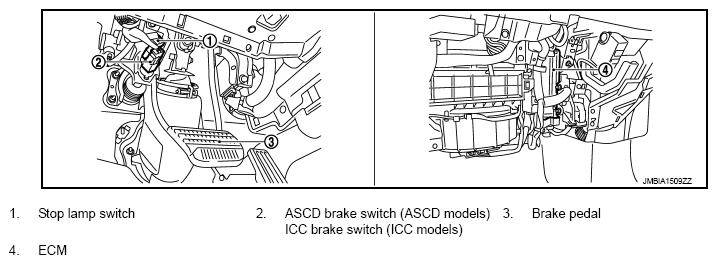

Fig 22: Fuel Pump Control Module Components Location (22 Of 25)

G09001293

Courtesy of NISSAN NORTH AMERICA, INC.

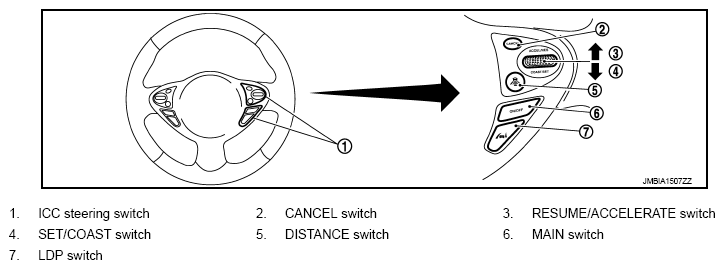

Fig 23: Fuel Pump Control Module Components Location (23 Of 25)

G09001294

Courtesy of NISSAN NORTH AMERICA, INC.

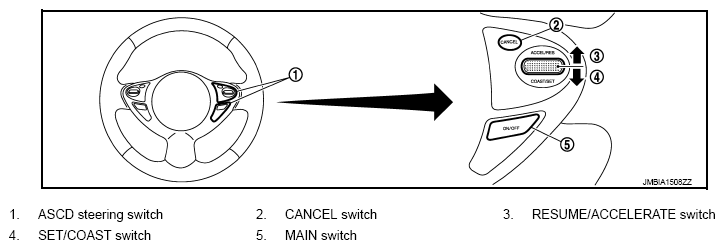

Fig 24: Fuel Pump Control Module Components Location (24 Of 25)

G09001295

Courtesy of NISSAN NORTH AMERICA, INC.

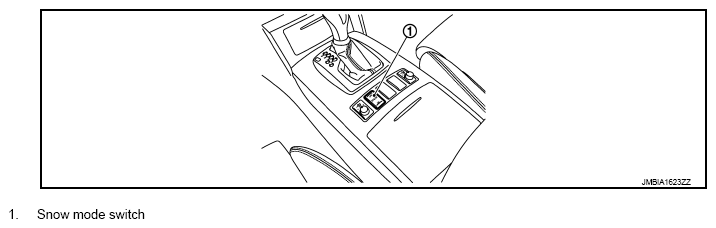

Fig 25: Fuel Pump Control Module Components Location (25 Of 25)

G09001296

Courtesy of NISSAN NORTH AMERICA, INC.
