Component Parts Location

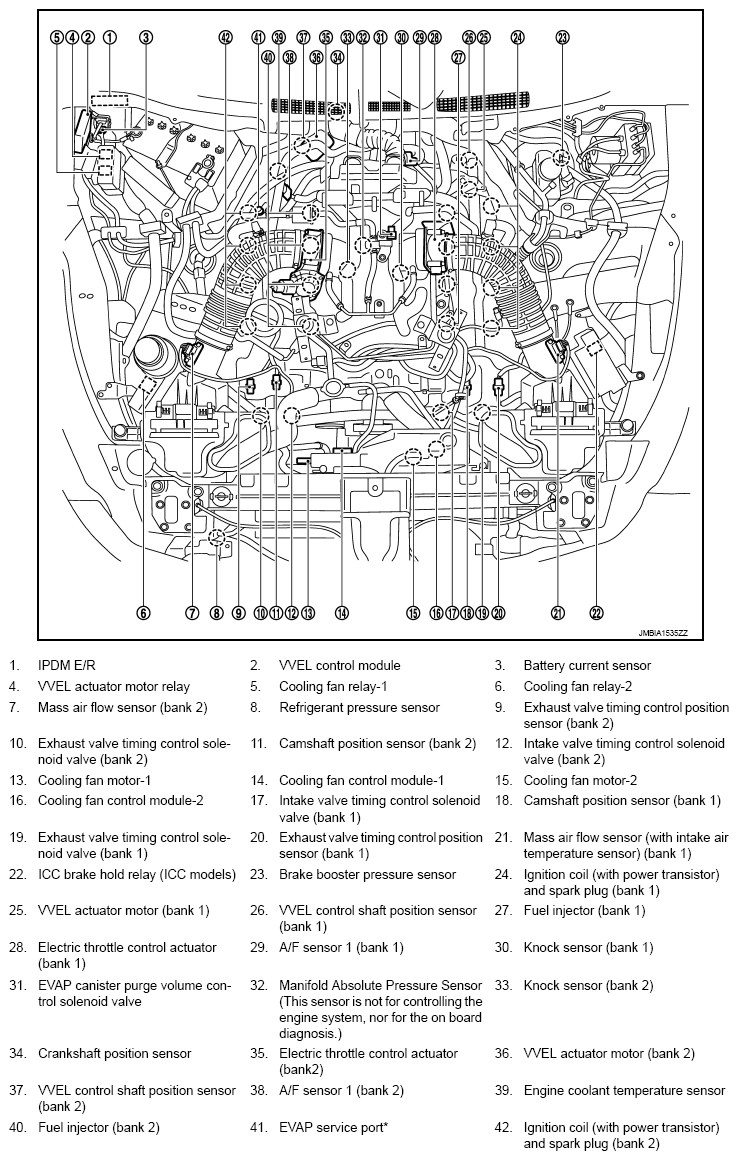

Fig 1: Intake Valve Timing Control Components Location (1 Of 25)

G09001299

Courtesy of NISSAN NORTH AMERICA, INC.

*: Except for Mexico

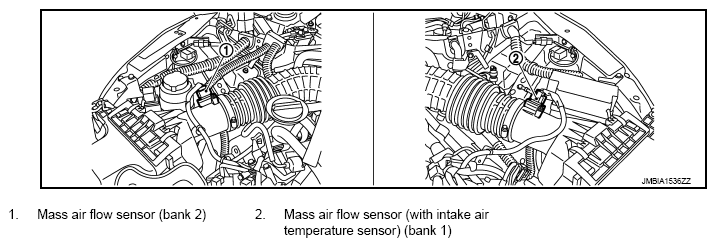

Fig 2: Intake Valve Timing Control Components Location (2 Of 25)

G09001300

Courtesy of NISSAN NORTH AMERICA, INC.

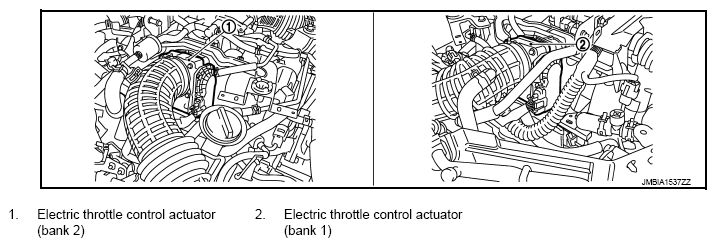

Fig 3: Intake Valve Timing Control Components Location (3 Of 25)

G09001301

Courtesy of NISSAN NORTH AMERICA, INC.

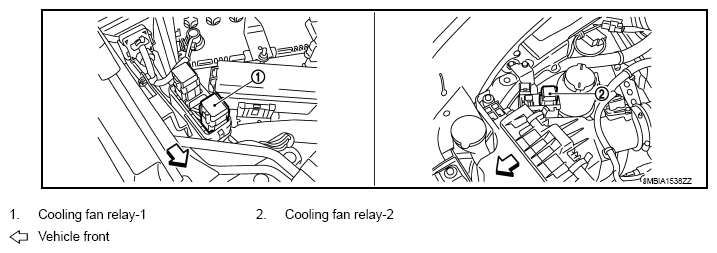

Fig 4: Intake Valve Timing Control Components Location (4 Of 25)

G09001302

Courtesy of NISSAN NORTH AMERICA, INC.

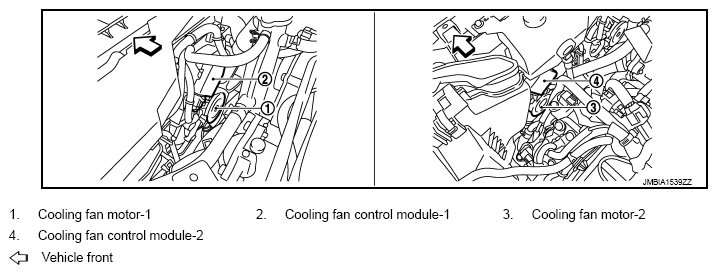

Fig 5: Intake Valve Timing Control Components Location (5 Of 25)

G09001303

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Intake Valve Timing Control Components Location (6 Of 25)

G09001304

Courtesy of NISSAN NORTH AMERICA, INC.

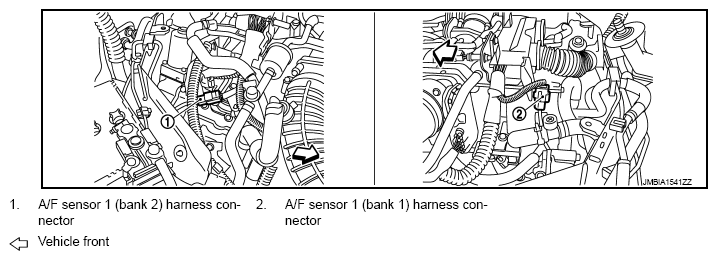

Fig 7: Intake Valve Timing Control Components Location (7 Of 25)

G09001305

Courtesy of NISSAN NORTH AMERICA, INC.

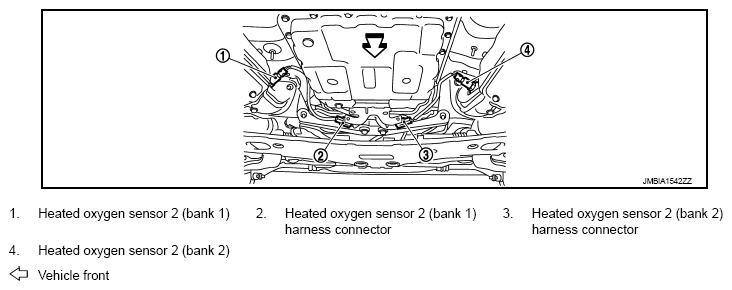

Fig 8: Intake Valve Timing Control Components Location (8 Of 25)

G09001306

Courtesy of NISSAN NORTH AMERICA, INC.

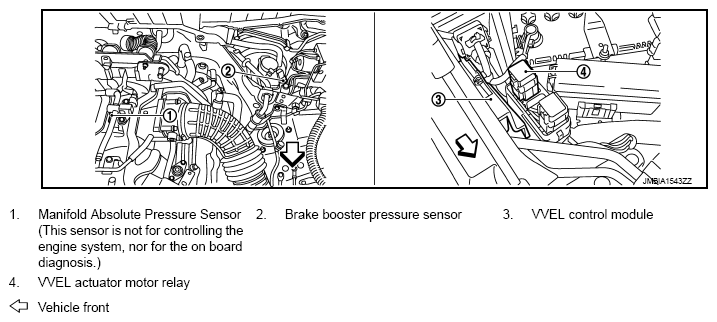

Fig 9: Intake Valve Timing Control Components Location (9 Of 25)

G09001307

Courtesy of NISSAN NORTH AMERICA, INC.

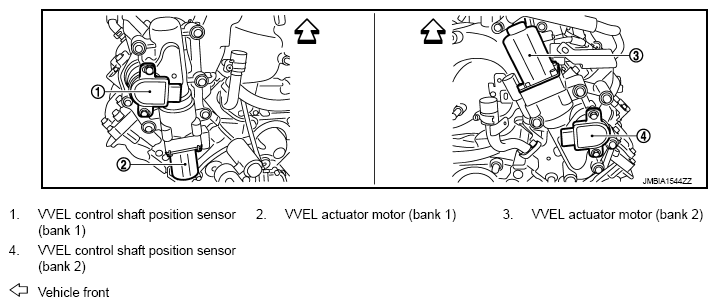

Fig 10: Intake Valve Timing Control Components Location (10 Of 25)

G09001308

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intake Valve Timing Control Components Location (11 Of 25)

G09001309

Courtesy of NISSAN NORTH AMERICA, INC.

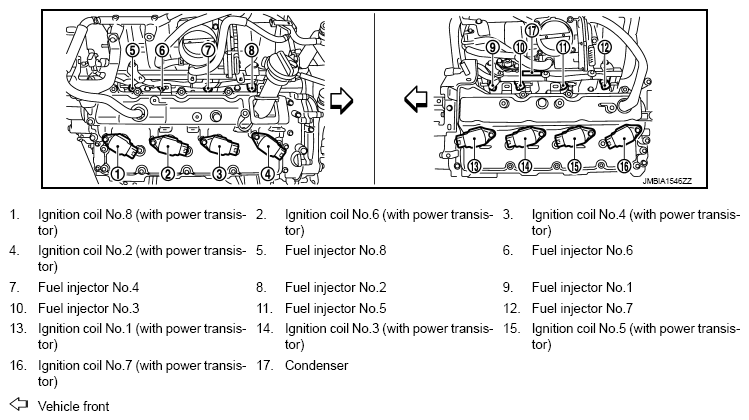

Fig 12: Intake Valve Timing Control Components Location (12 Of 25)

G09001310

Courtesy of NISSAN NORTH AMERICA, INC.

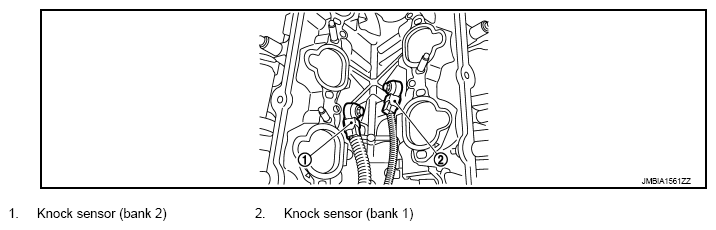

Fig 13: Intake Valve Timing Control Components Location (13 Of 25)

G09001311

Courtesy of NISSAN NORTH AMERICA, INC.

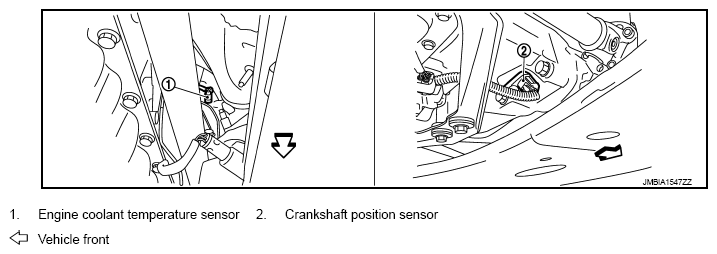

Fig 14: Intake Valve Timing Control Components Location (14 Of 25)

G09001312

Courtesy of NISSAN NORTH AMERICA, INC.

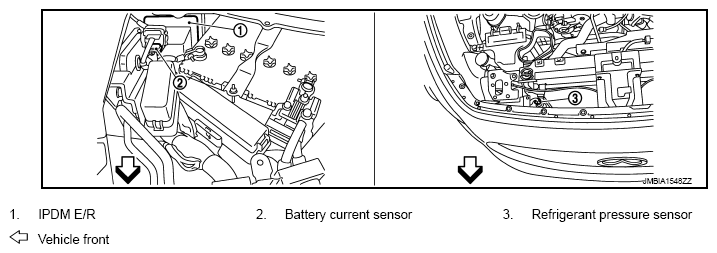

Fig 15: Intake Valve Timing Control Components Location (15 Of 25)

G09001313

Courtesy of NISSAN NORTH AMERICA, INC.

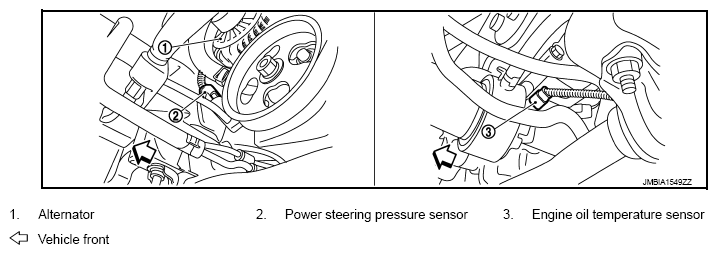

Fig 16: Intake Valve Timing Control Components Location (16 Of 25)

G09001314

Courtesy of NISSAN NORTH AMERICA, INC.

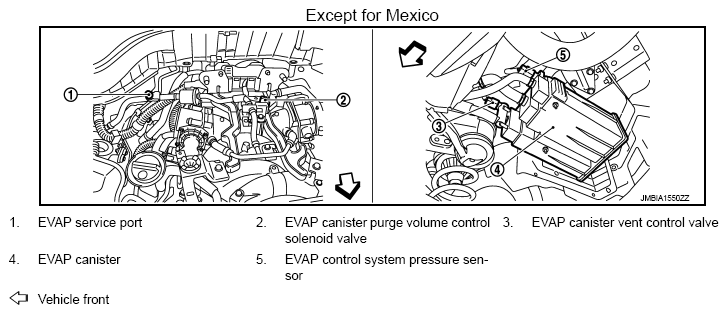

Fig 17: Intake Valve Timing Control Components Location (17 Of 25)

G09001315

Courtesy of NISSAN NORTH AMERICA, INC.

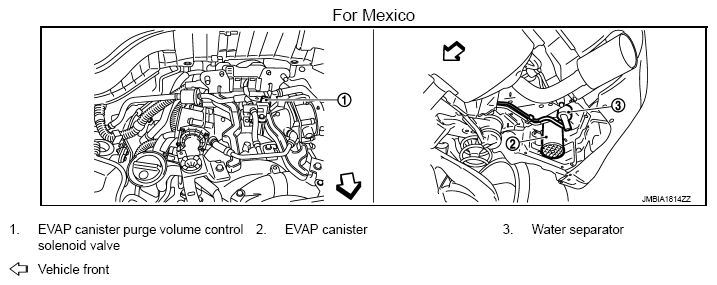

Fig 18: Intake Valve Timing Control Components Location (18 Of 25)

G09001317

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Intake Valve Timing Control Components Location (19 Of 25)

G09001318

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Intake Valve Timing Control Components Location (20 Of 25)

G09001319

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Intake Valve Timing Control Components Location (21 Of 25)

G09001320

Courtesy of NISSAN NORTH AMERICA, INC.

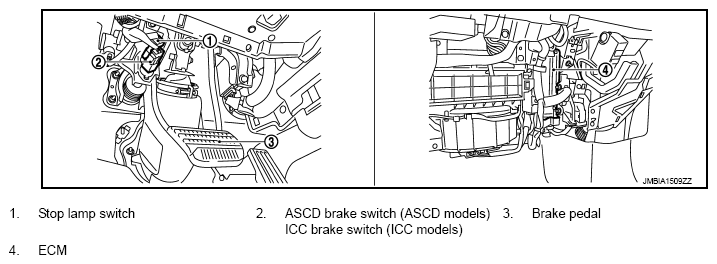

Fig 22: Intake Valve Timing Control Components Location (22 Of 25)

G09001321

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 23: Intake Valve Timing Control Components Location (23 Of 25)

G09001322

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 24: Intake Valve Timing Control Components Location (24 Of 25)

G09001323

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 25: Intake Valve Timing Control Components Location (25 Of 25)

G09001324

Courtesy of NISSAN NORTH AMERICA, INC.
