DTC P1220: Fuel Pump Control Module (FPCM): Description

When driving conditions demand a decrease in fuel supply, the fuel pump control module (FPCM) reduces the supply voltage to the fuel pump. When driving conditions demand an increase in fuel supply (during engine start, low engine coolant temperature or high load), the supply voltage to the fuel pump is increased.

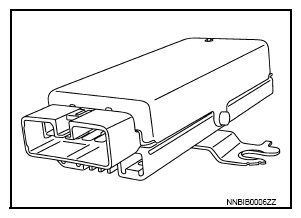

Fig 1: Identifying Fuel Pump Control Module
G09001499Courtesy of NISSAN NORTH AMERICA, INC.
