Wiring Diagram - ENGINE CONTROL SYSTEM

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

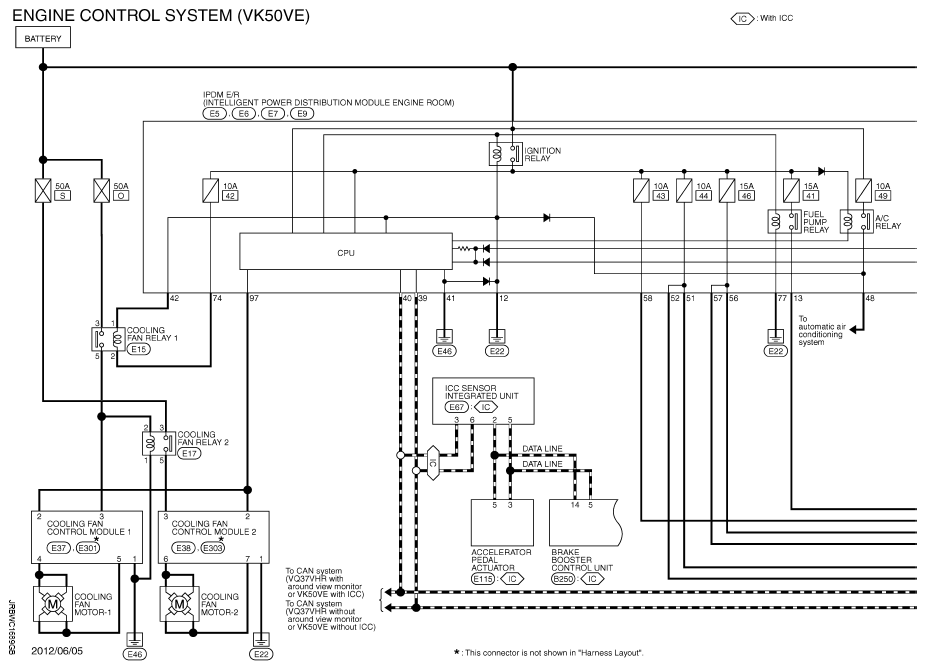

Fig 1: Engine Control System (VK50VE) Wiring Diagram (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

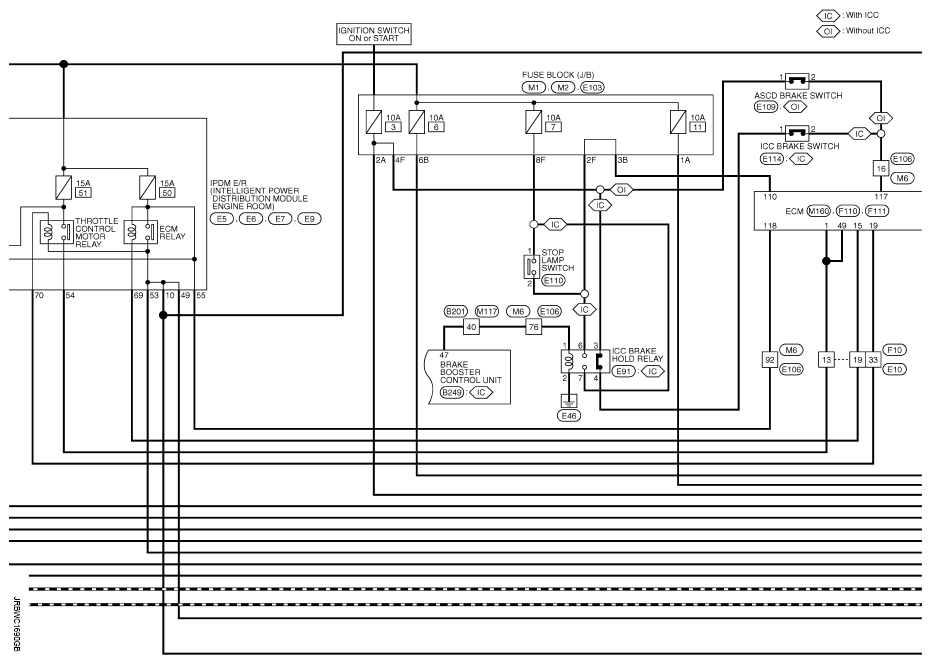

Fig 2: Engine Control System (VK50VE) Wiring Diagram (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

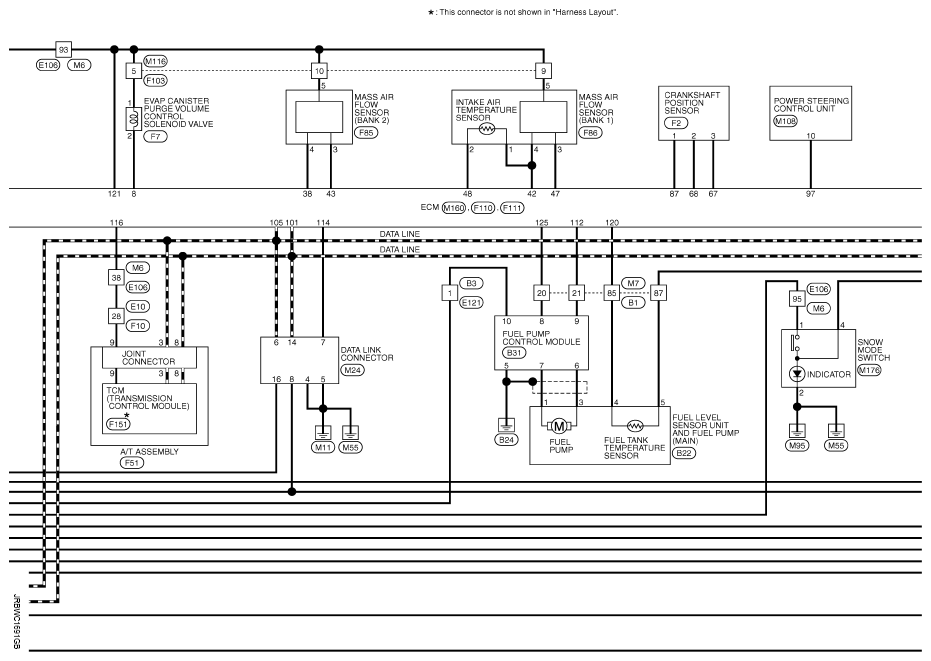

Fig 3: Engine Control System (VK50VE) Wiring Diagram (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

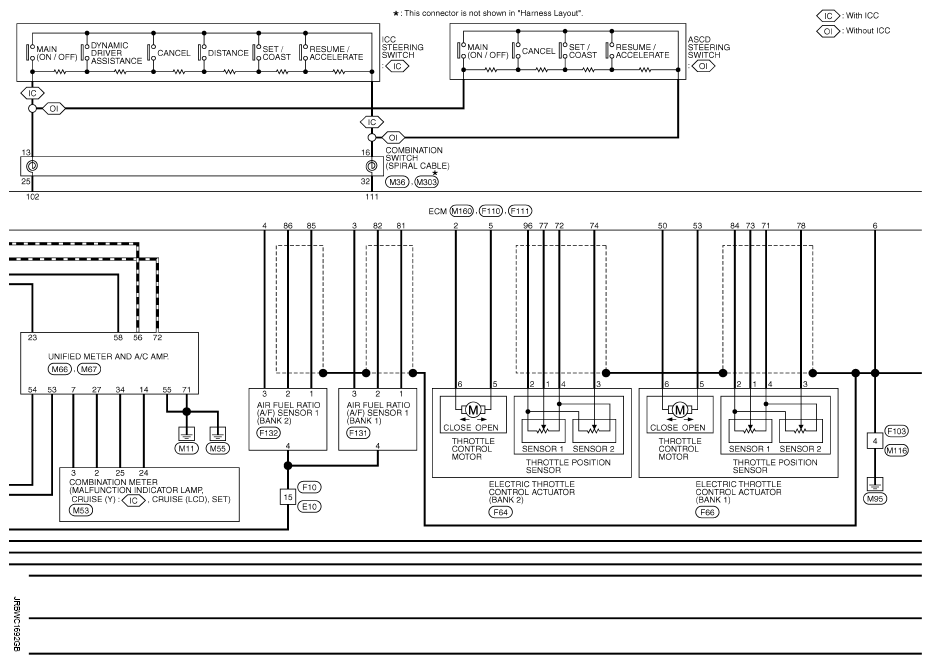

Fig 4: Engine Control System (VK50VE) Wiring Diagram (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

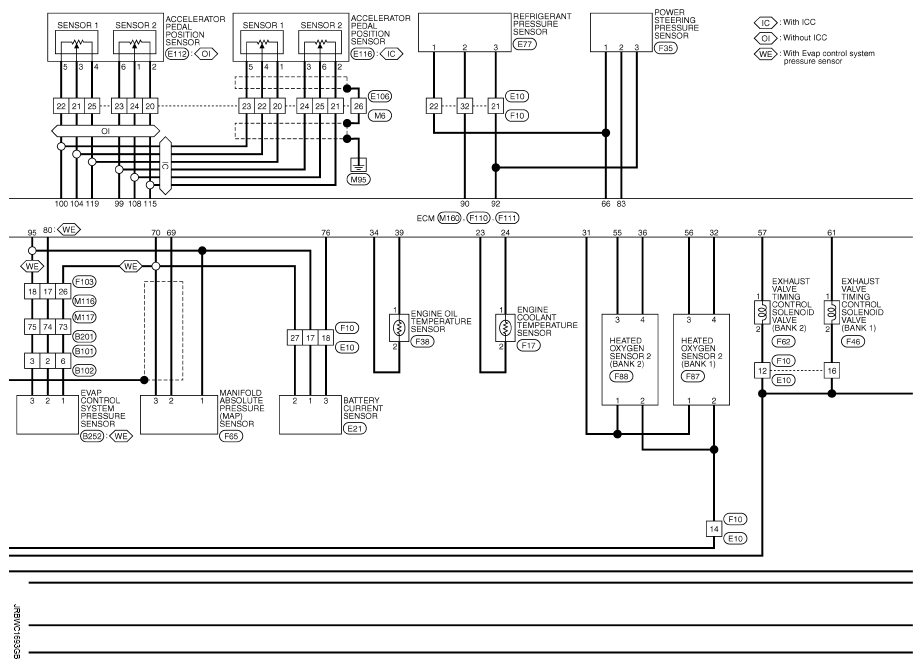

Fig 5: Engine Control System (VK50VE) Wiring Diagram (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

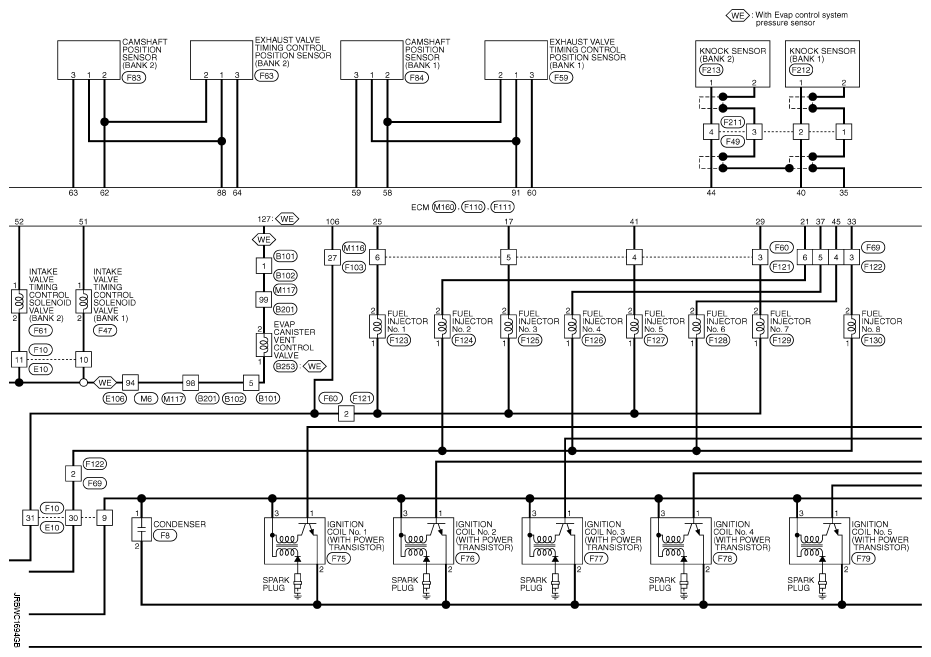

Fig 6: Engine Control System (VK50VE) Wiring Diagram (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

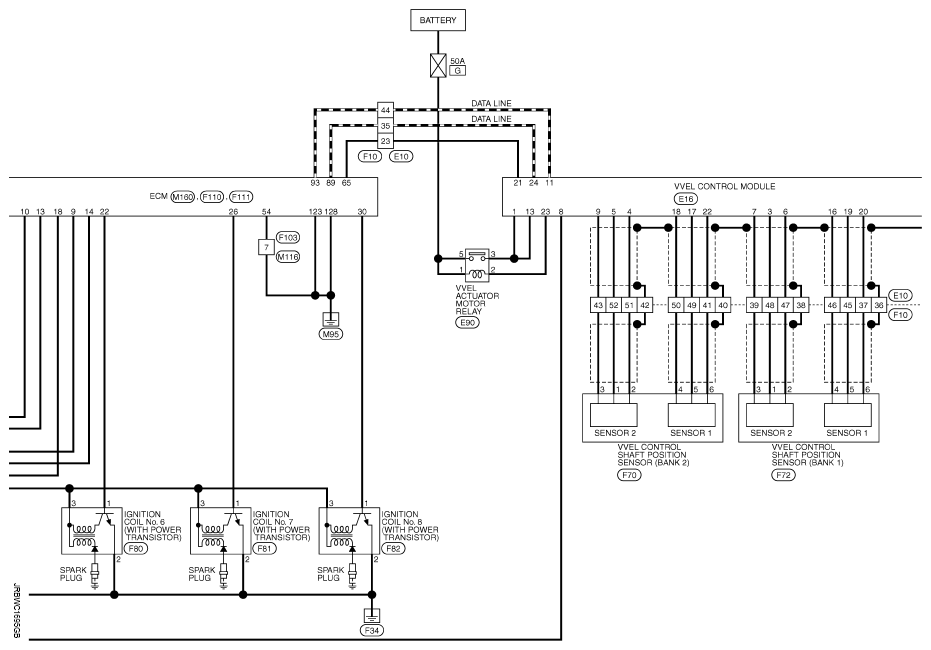

Fig 7: Engine Control System (VK50VE) Wiring Diagram (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

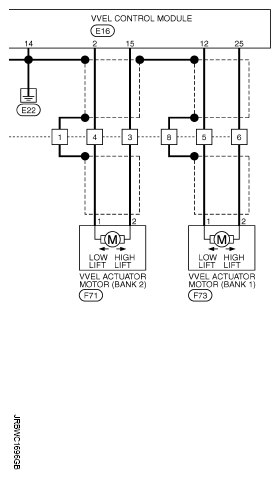

Fig 8: Engine Control System (VK50VE) Wiring Diagram (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
