Component Parts Location

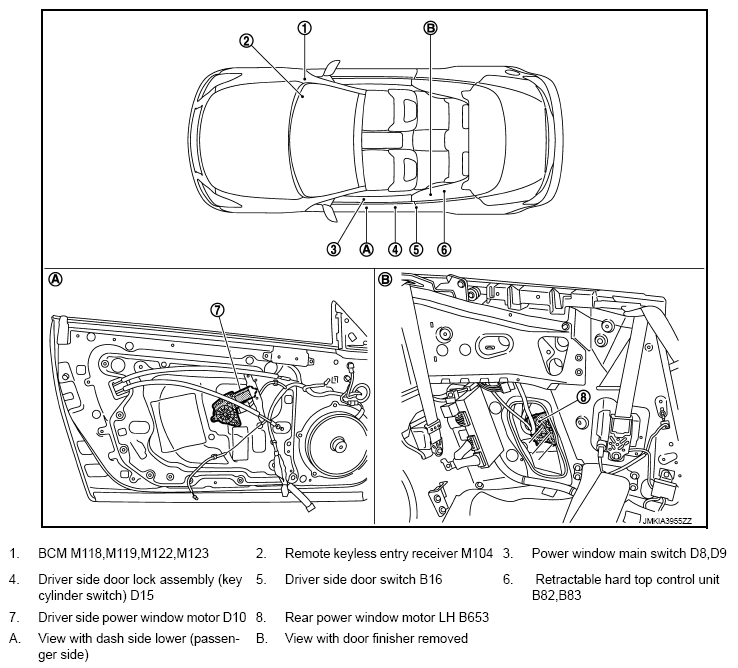

Fig 1: Identifying Power Window System Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
