Exploded View

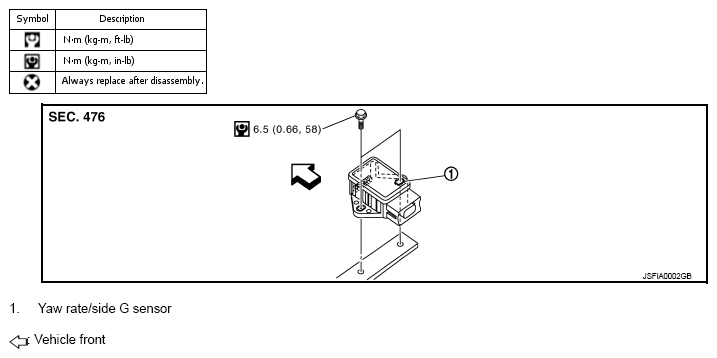

Fig 1: Yaw Rate/Side G Sensor With Torque Specification
G08736872Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
