Component Parts Location

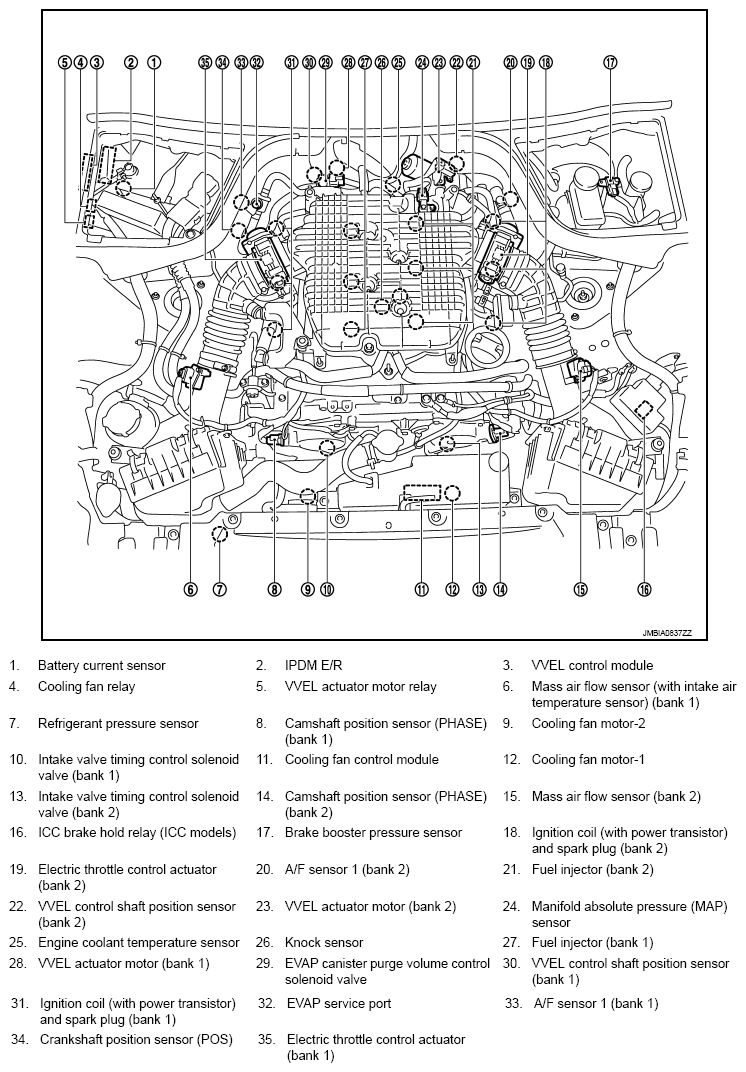

Fig 1: Identifying Cooling Fan Control Components (1 Of 21)

G08739693

Courtesy of NISSAN NORTH AMERICA, INC.

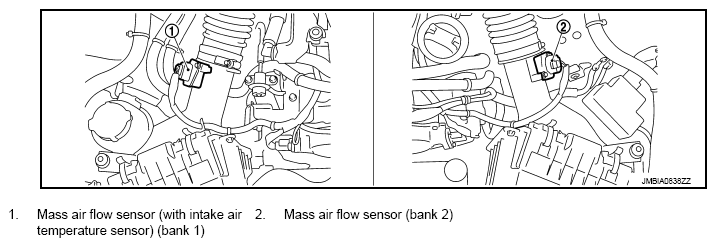

Fig 2: Identifying Cooling Fan Control Components (2 Of 21)

G08739694

Courtesy of NISSAN NORTH AMERICA, INC.

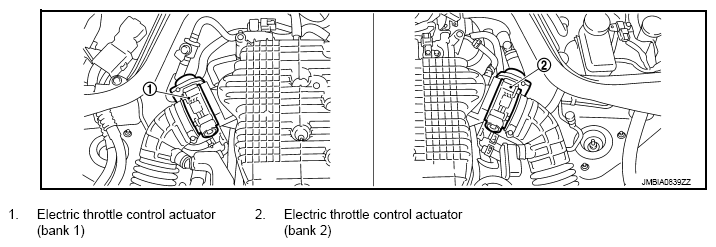

Fig 3: Identifying Cooling Fan Control Components (3 Of 21)

G08739695

Courtesy of NISSAN NORTH AMERICA, INC.

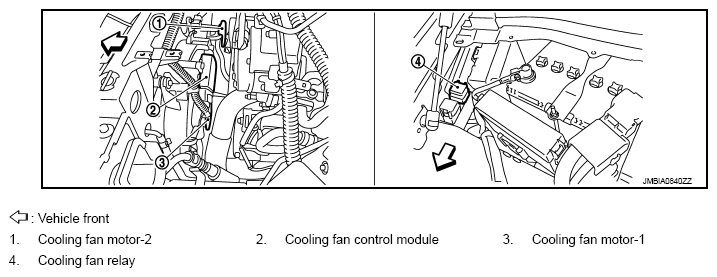

Fig 4: Identifying Cooling Fan Control Components (4 Of 21)

G08739696

Courtesy of NISSAN NORTH AMERICA, INC.

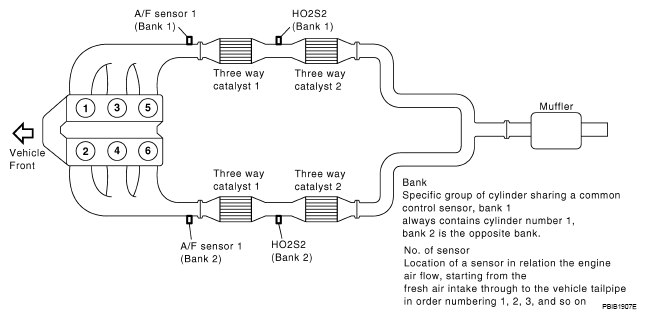

Fig 5: Identifying Cooling Fan Control Components (5 Of 21)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

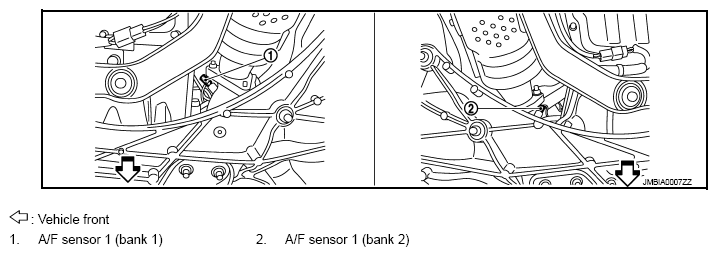

Fig 6: Identifying Cooling Fan Control Components (6 Of 21)

G08739698

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Cooling Fan Control Components (7 Of 21)

G08739699

Courtesy of NISSAN NORTH AMERICA, INC.

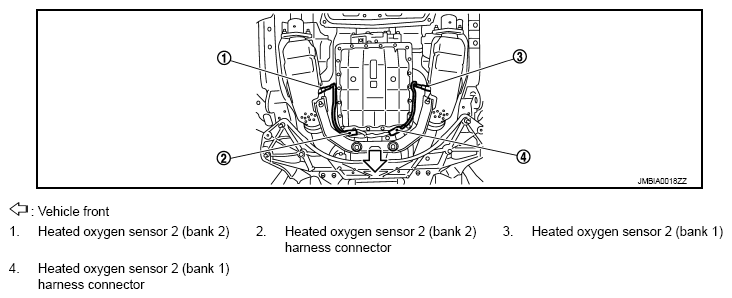

Fig 8: Identifying Cooling Fan Control Components (8 Of 21)

G08739700

Courtesy of NISSAN NORTH AMERICA, INC.

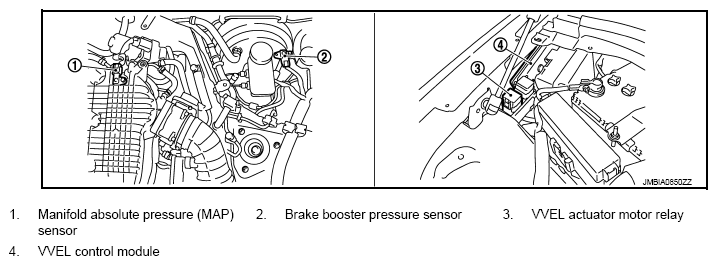

Fig 9: Identifying Cooling Fan Control Components (9 Of 21)

G08739701

Courtesy of NISSAN NORTH AMERICA, INC.

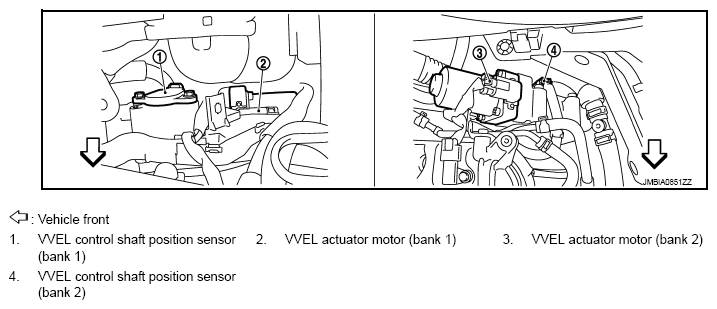

Fig 10: Identifying Cooling Fan Control Components (10 Of 21)

G08739702

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Cooling Fan Control Components (11 Of 21)

G08739703

Courtesy of NISSAN NORTH AMERICA, INC.

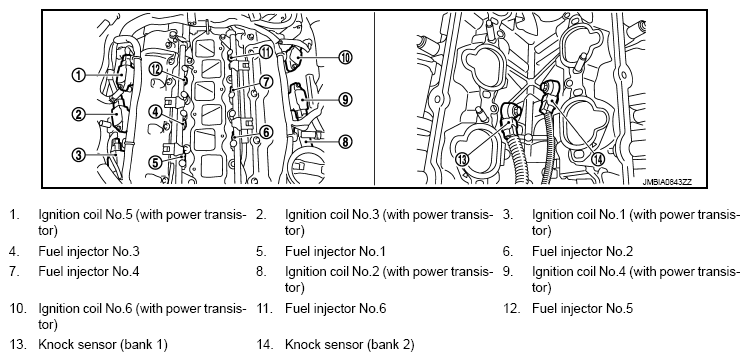

Fig 12: Identifying Cooling Fan Control Components (12 Of 21)

G08739704

Courtesy of NISSAN NORTH AMERICA, INC.

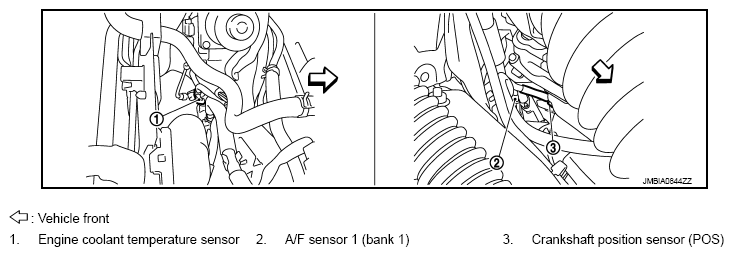

Fig 13: Identifying Cooling Fan Control Components (13 Of 21)

G08739705

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Cooling Fan Control Components (14 Of 21)

G08739706

Courtesy of NISSAN NORTH AMERICA, INC.

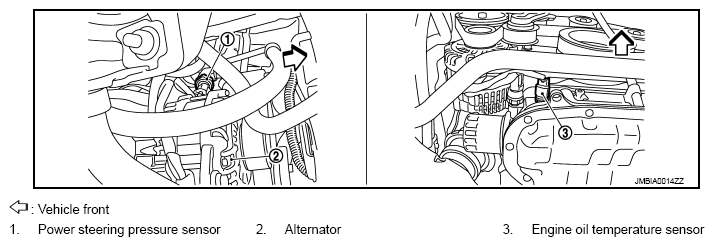

Fig 15: Identifying Cooling Fan Control Components (15 Of 21)

G08739707

Courtesy of NISSAN NORTH AMERICA, INC.

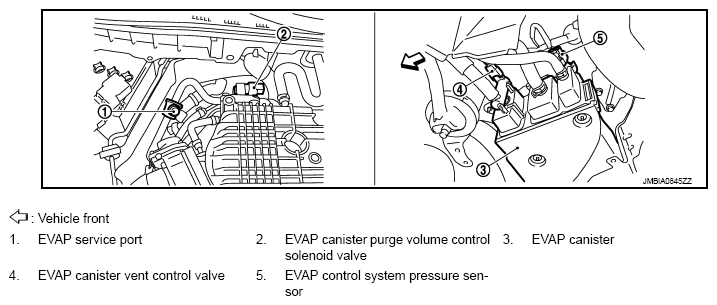

Fig 16: Identifying Cooling Fan Control Components (16 Of 21)

G08739708

Courtesy of NISSAN NORTH AMERICA, INC.

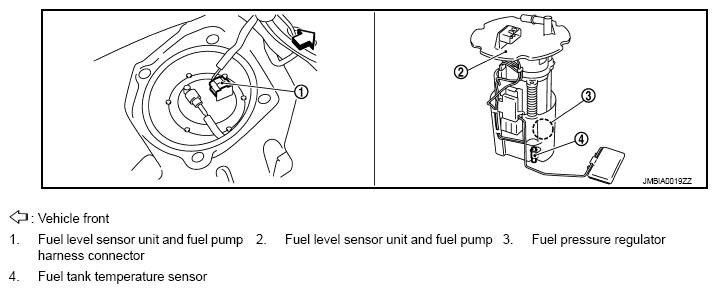

Fig 17: Identifying Cooling Fan Control Components (17 Of 21)

G08739709

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Cooling Fan Control Components (18 Of 21)

G08739710

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Cooling Fan Control Components (19 Of 21)

G08739711

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Cooling Fan Control Components (20 Of 21)

G08739712

Courtesy of NISSAN NORTH AMERICA, INC.

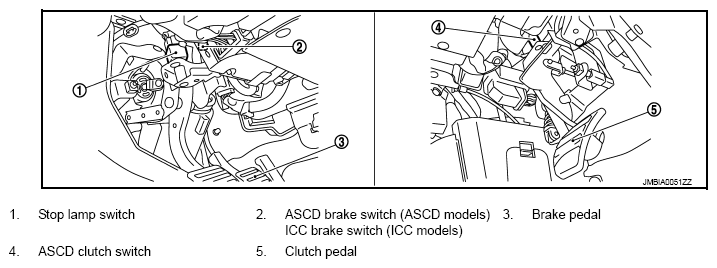

Fig 21: Identifying Cooling Fan Control Components (21 Of 21)

G08739713

Courtesy of NISSAN NORTH AMERICA, INC.
