Component Parts Location

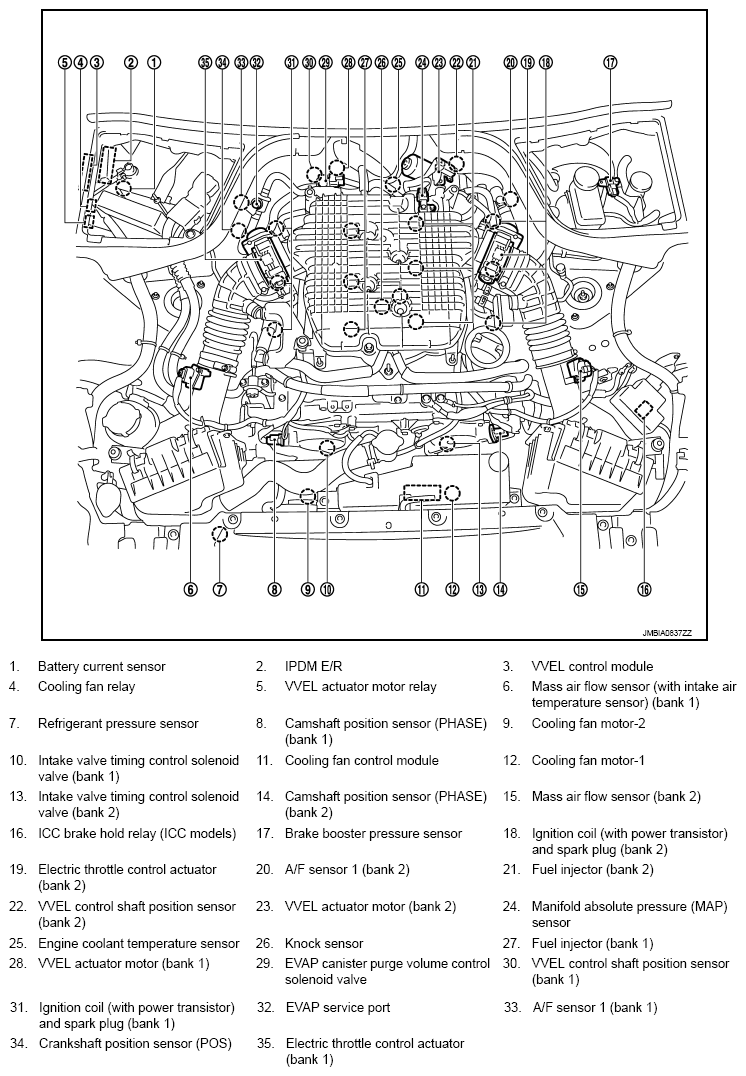

Fig 1: Identifying Electric Ignition System Components Location (1 Of 21)

G08739627

Courtesy of NISSAN NORTH AMERICA, INC.

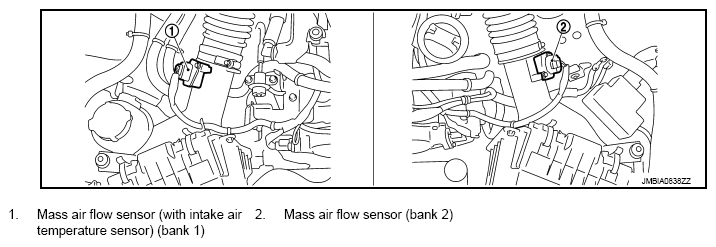

Fig 2: Identifying Electric Ignition System Components Location (2 Of 21)

G08739628

Courtesy of NISSAN NORTH AMERICA, INC.

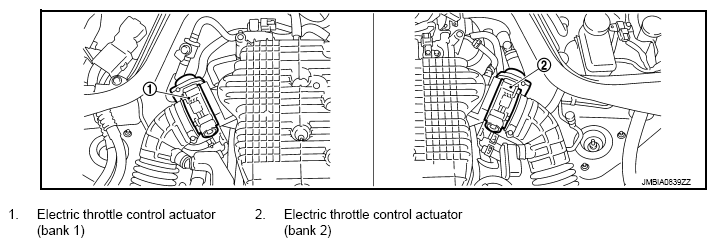

Fig 3: Identifying Electric Ignition System Components Location (3 Of 21)

G08739629

Courtesy of NISSAN NORTH AMERICA, INC.

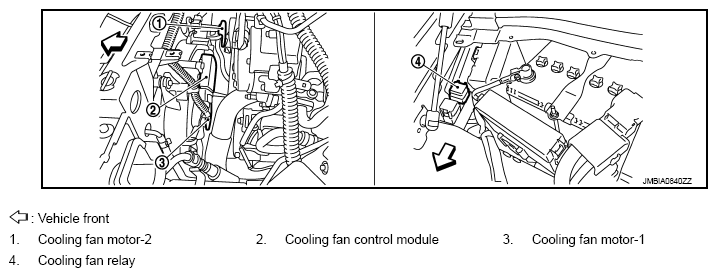

Fig 4: Identifying Electric Ignition System Components Location (4 Of 21)

G08739630

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Electric Ignition System Components Location (5 Of 21)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

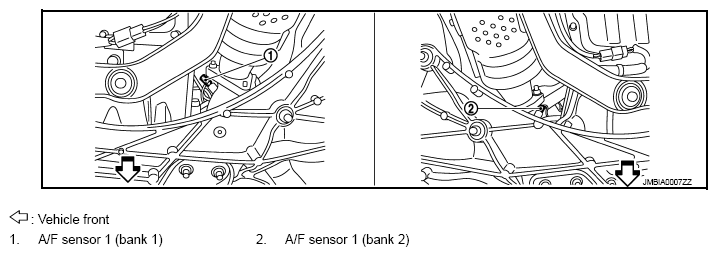

Fig 6: Identifying Electric Ignition System Components Location (6 Of 21)

G08739632

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Electric Ignition System Components Location (7 Of 21)

G08739633

Courtesy of NISSAN NORTH AMERICA, INC.

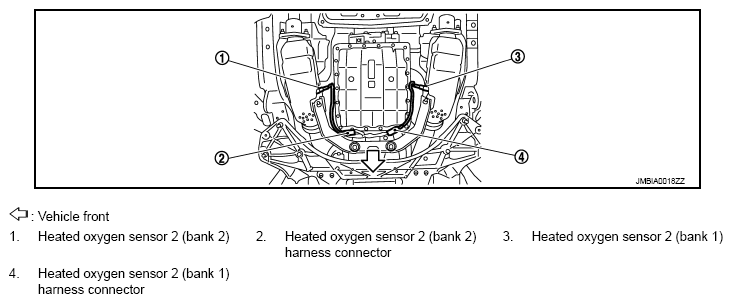

Fig 8: Identifying Electric Ignition System Components Location (8 Of 21)

G08739634

Courtesy of NISSAN NORTH AMERICA, INC.

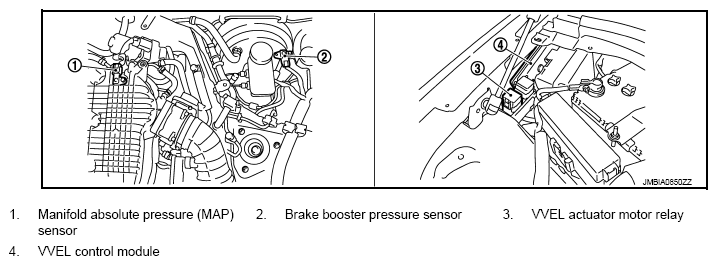

Fig 9: Identifying Electric Ignition System Components Location (9 Of 21)

G08739635

Courtesy of NISSAN NORTH AMERICA, INC.

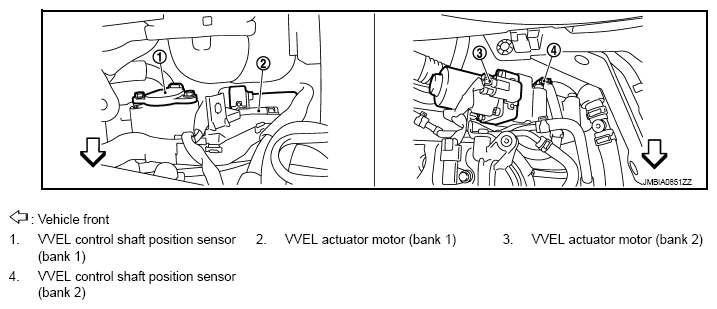

Fig 10: Identifying Electric Ignition System Components Location (10 Of 21)

G08739636

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Electric Ignition System Components Location (11 Of 21)

G08739637

Courtesy of NISSAN NORTH AMERICA, INC.

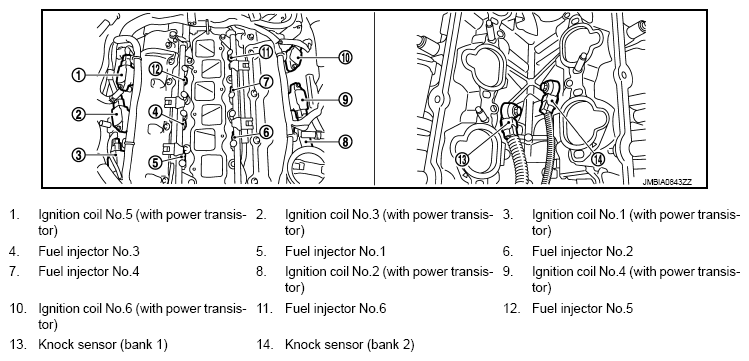

Fig 12: Identifying Electric Ignition System Components Location (12 Of 21)

G08739638

Courtesy of NISSAN NORTH AMERICA, INC.

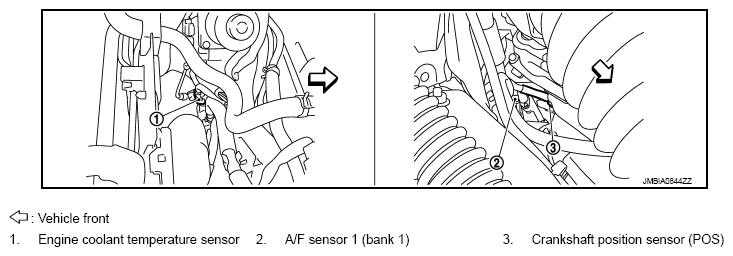

Fig 13: Identifying Electric Ignition System Components Location (13 Of 21)

G08739639

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Electric Ignition System Components Location (14 Of 21)

G08739640

Courtesy of NISSAN NORTH AMERICA, INC.

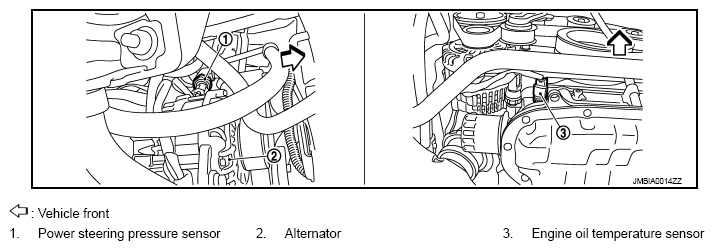

Fig 15: Identifying Electric Ignition System Components Location (15 Of 21)

G08739641

Courtesy of NISSAN NORTH AMERICA, INC.

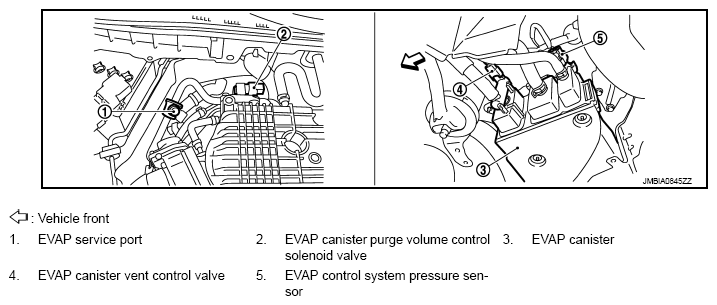

Fig 16: Identifying Electric Ignition System Components Location (16 Of 21)

G08739642

Courtesy of NISSAN NORTH AMERICA, INC.

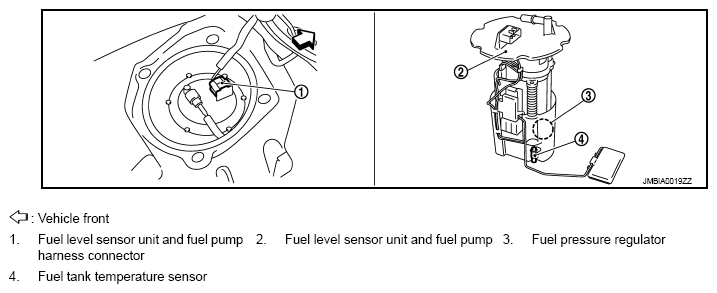

Fig 17: Identifying Electric Ignition System Components Location (17 Of 21)

G08739643

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Electric Ignition System Components Location (18 Of 21)

G08739644

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Electric Ignition System Components Location (19 Of 21)

G08739645

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Electric Ignition System Components Location (20 Of 21)

G08739646

Courtesy of NISSAN NORTH AMERICA, INC.

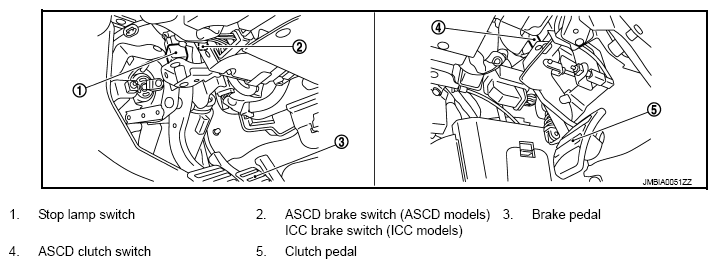

Fig 21: Identifying Electric Ignition System Components Location (21 Of 21)

G08739647

Courtesy of NISSAN NORTH AMERICA, INC.
