Component Parts Location

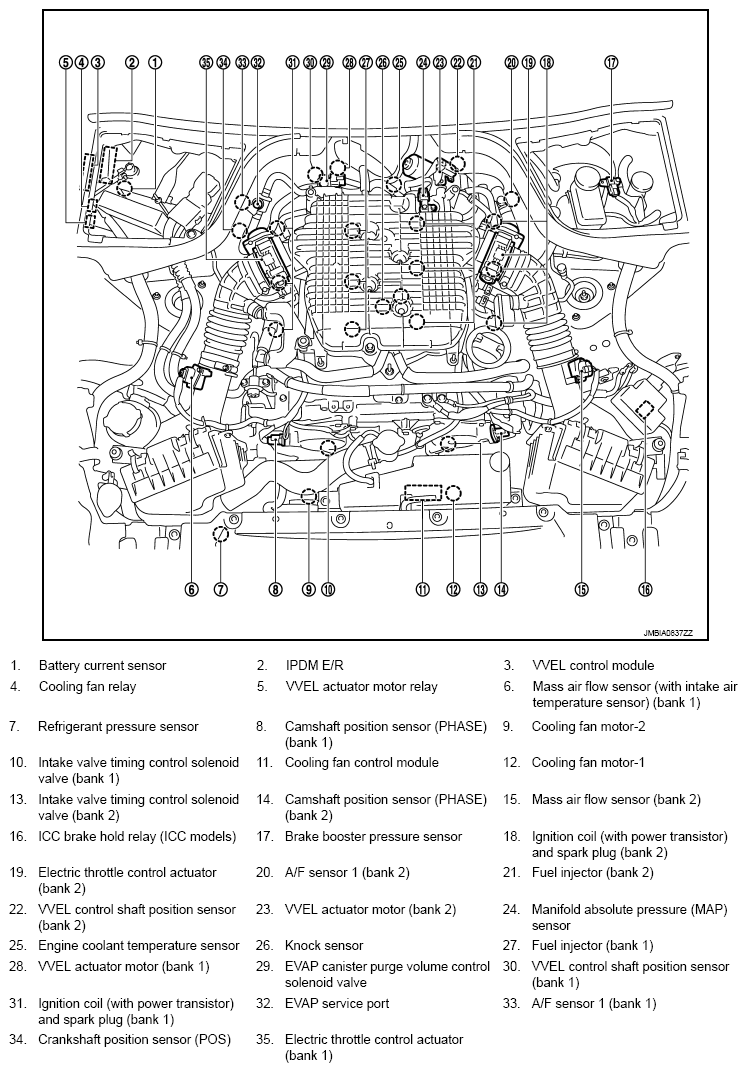

Fig 1: Identifying ECM Components (1 Of 21)

G08739581

Courtesy of NISSAN NORTH AMERICA, INC.

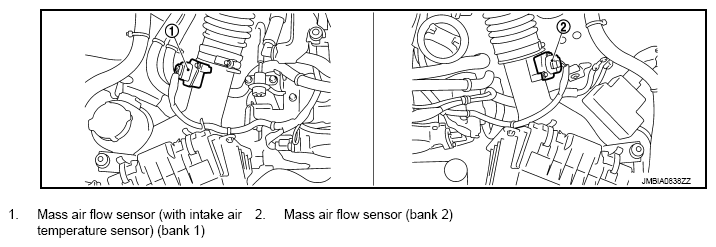

Fig 2: Identifying ECM Components (2 Of 21)

G08739582

Courtesy of NISSAN NORTH AMERICA, INC.

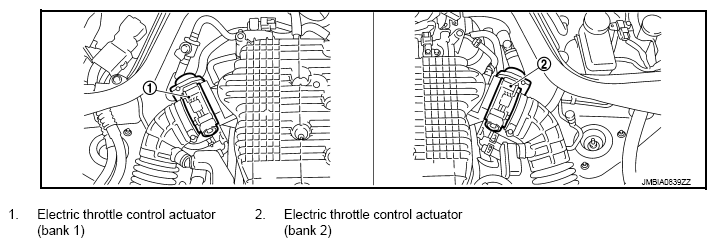

Fig 3: Identifying ECM Components (3 Of 21)

G08739583

Courtesy of NISSAN NORTH AMERICA, INC.

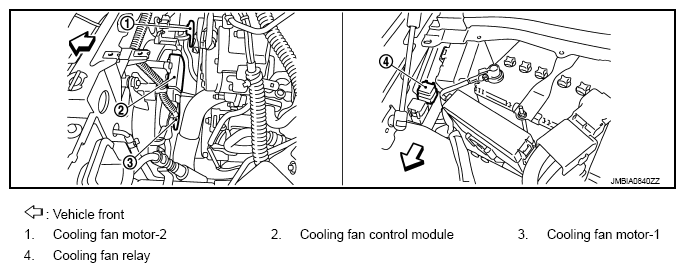

Fig 4: Identifying ECM Components (4 Of 21)

G08739584

Courtesy of NISSAN NORTH AMERICA, INC.

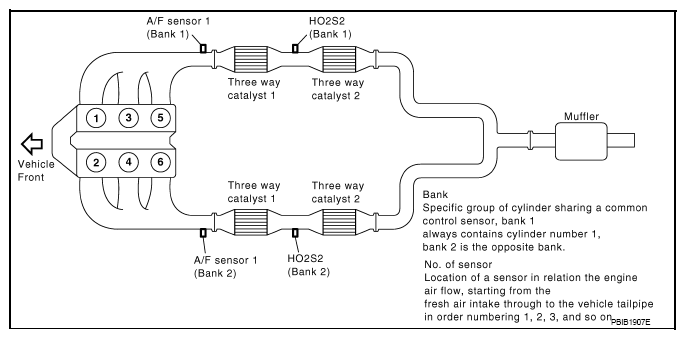

Fig 5: Identifying ECM Components (5 Of 21)

G08739585

Courtesy of NISSAN NORTH AMERICA, INC.

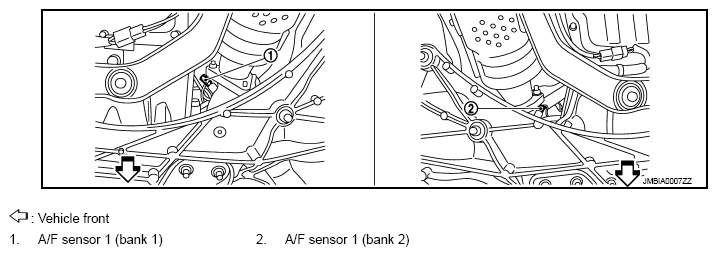

Fig 6: Identifying ECM Components (6 Of 21)

G08739586

Courtesy of NISSAN NORTH AMERICA, INC.

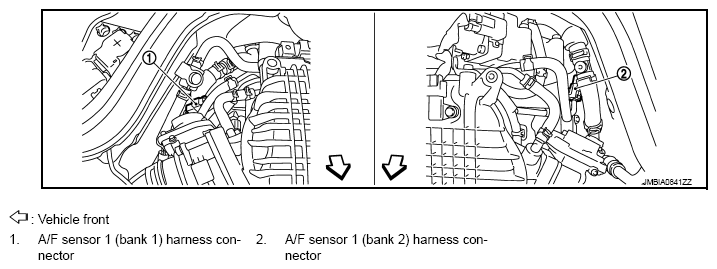

Fig 7: Identifying ECM Components (7 Of 21)

G08739587

Courtesy of NISSAN NORTH AMERICA, INC.

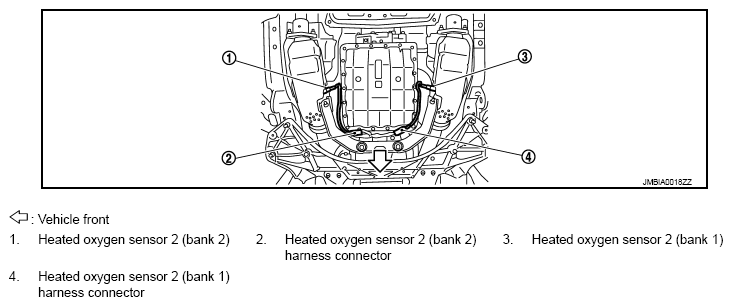

Fig 8: Identifying ECM Components (8 Of 21)

G08739588

Courtesy of NISSAN NORTH AMERICA, INC.

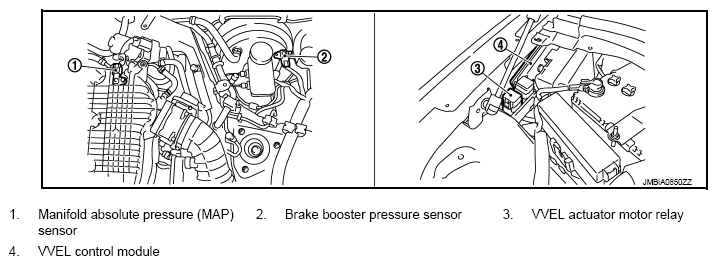

Fig 9: Identifying ECM Components (9 Of 21)

G08739589

Courtesy of NISSAN NORTH AMERICA, INC.

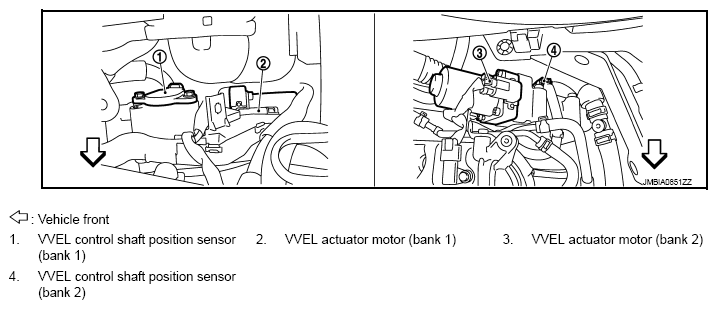

Fig 10: Identifying ECM Components (10 Of 21)

G08739590

Courtesy of NISSAN NORTH AMERICA, INC.

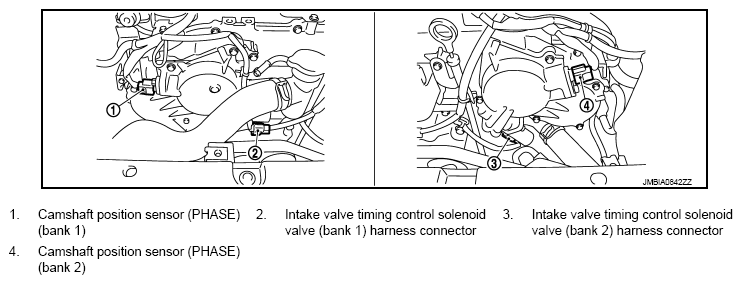

Fig 11: Identifying ECM Components (11 Of 21)

G08739591

Courtesy of NISSAN NORTH AMERICA, INC.

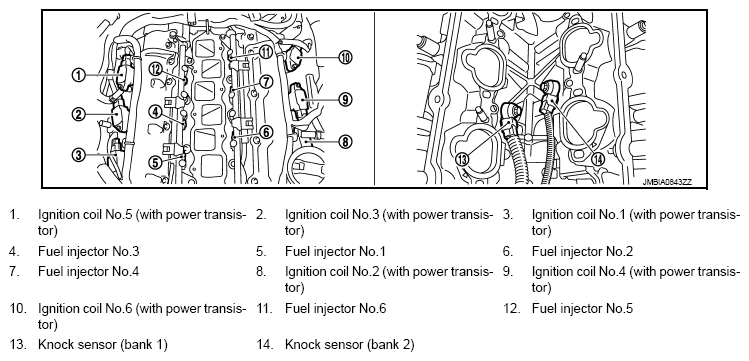

Fig 12: Identifying ECM Components (12 Of 21)

G08739592

Courtesy of NISSAN NORTH AMERICA, INC.

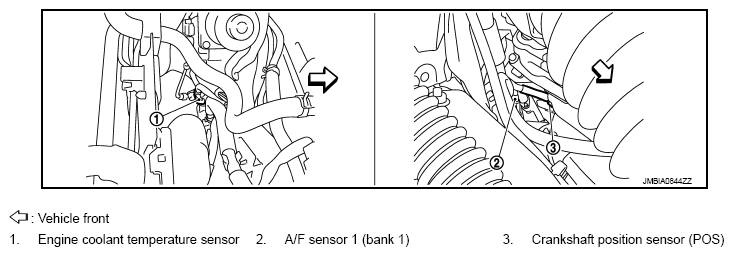

Fig 13: Identifying ECM Components (13 Of 21)

G08739593

Courtesy of NISSAN NORTH AMERICA, INC.

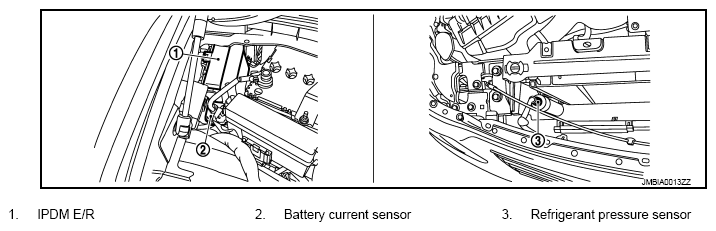

Fig 14: Identifying ECM Components (14 Of 21)

G08739594

Courtesy of NISSAN NORTH AMERICA, INC.

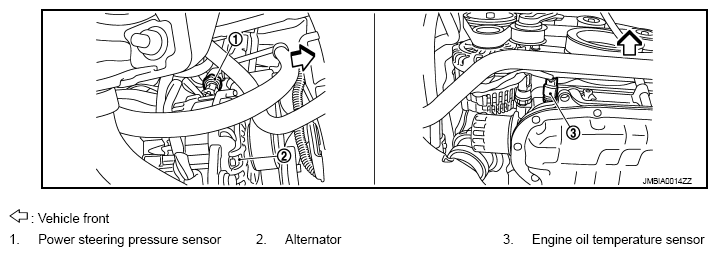

Fig 15: Identifying ECM Components (15 Of 21)

G08739595

Courtesy of NISSAN NORTH AMERICA, INC.

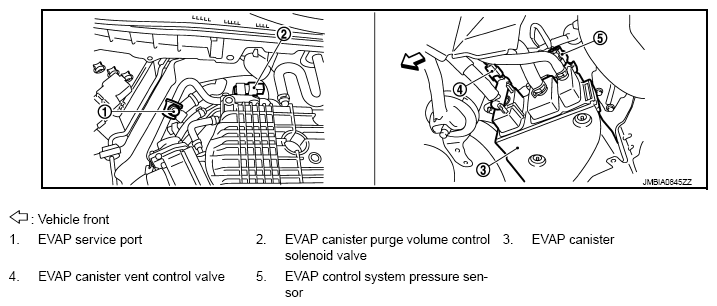

Fig 16: Identifying ECM Components (16 Of 21)

G08739596

Courtesy of NISSAN NORTH AMERICA, INC.

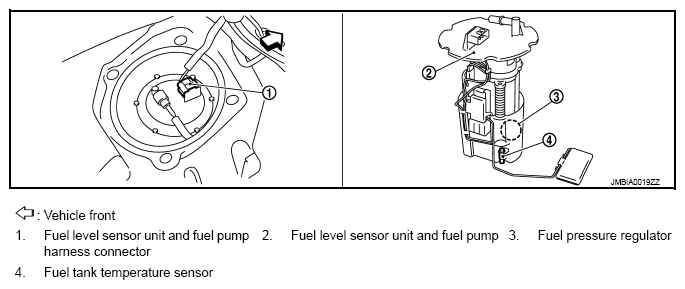

Fig 17: Identifying ECM Components (17 Of 21)

G08739597

Courtesy of NISSAN NORTH AMERICA, INC.

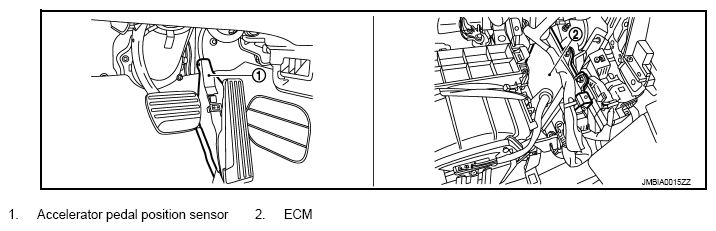

Fig 18: Identifying ECM Components (18 Of 21)

G08739598

Courtesy of NISSAN NORTH AMERICA, INC.

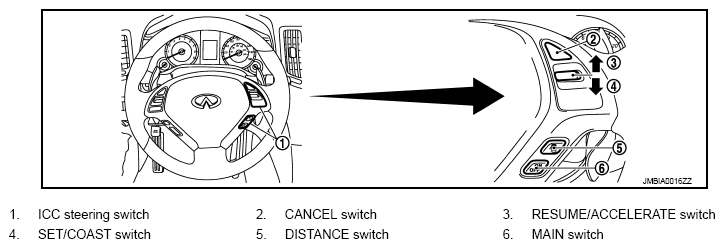

Fig 19: Identifying ECM Components (19 Of 21)

G08739599

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying ECM Components (20 Of 21)

G08739600

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying ECM Components (21 Of 21)

G08739601

Courtesy of NISSAN NORTH AMERICA, INC.
