Component Parts Location

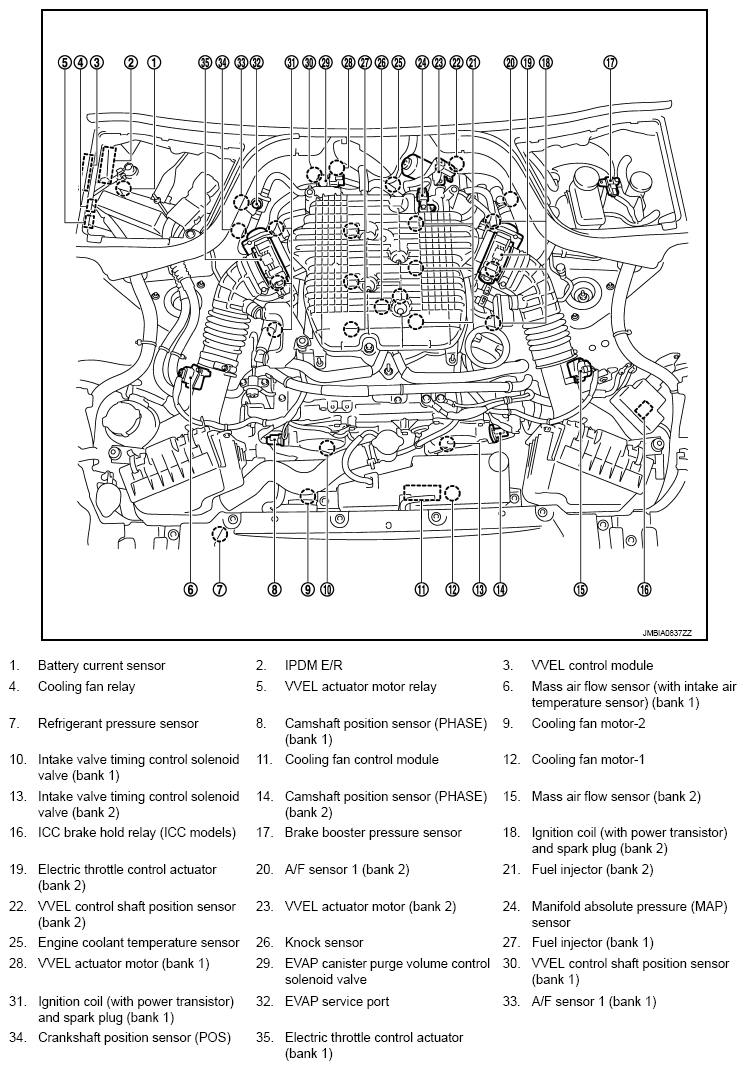

Fig 1: Identifying Intake Valve Timing Control Components (1 Of 21)

G08739763

Courtesy of NISSAN NORTH AMERICA, INC.

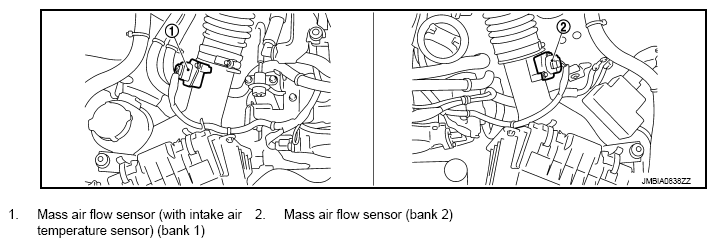

Fig 2: Identifying Intake Valve Timing Control Components (2 Of 21)

G08739764

Courtesy of NISSAN NORTH AMERICA, INC.

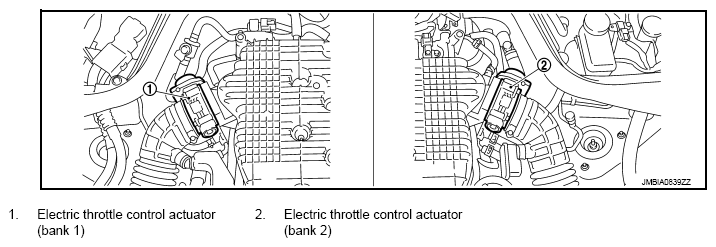

Fig 3: Identifying Intake Valve Timing Control Components (3 Of 21)

G08739765

Courtesy of NISSAN NORTH AMERICA, INC.

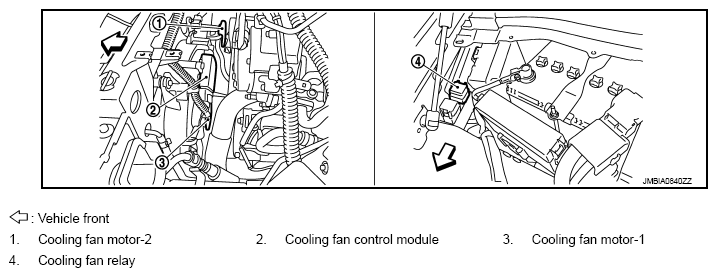

Fig 4: Identifying Intake Valve Timing Control Components (4 Of 21)

G08739766

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Intake Valve Timing Control Components (5 Of 21)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

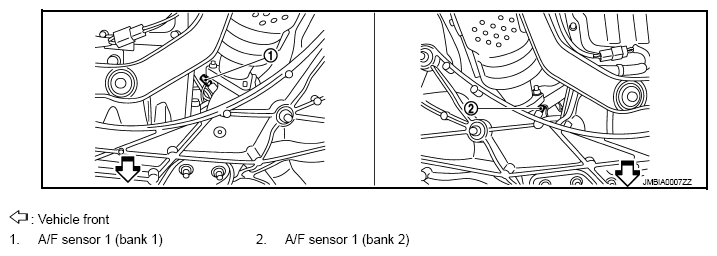

Fig 6: Identifying Intake Valve Timing Control Components (6 Of 21)

G08739768

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Intake Valve Timing Control Components (7 Of 21)

G08739769

Courtesy of NISSAN NORTH AMERICA, INC.

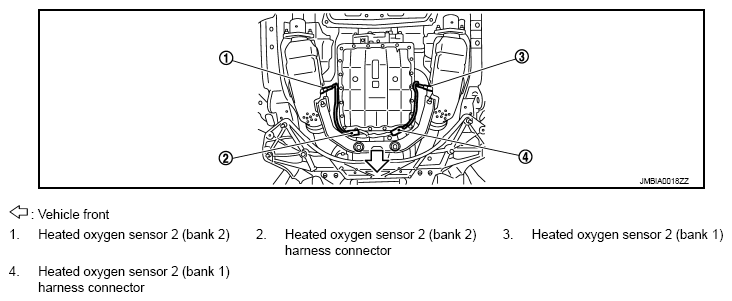

Fig 8: Identifying Intake Valve Timing Control Components (8 Of 21)

G08739770

Courtesy of NISSAN NORTH AMERICA, INC.

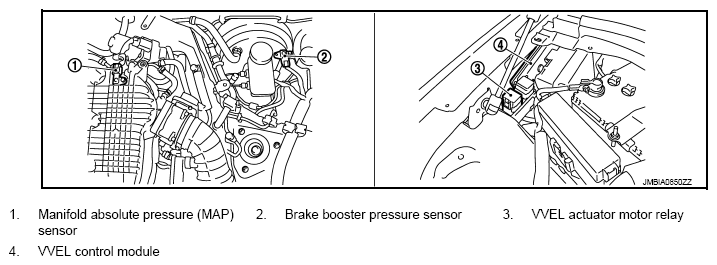

Fig 9: Identifying Intake Valve Timing Control Components (9 Of 21)

G08739771

Courtesy of NISSAN NORTH AMERICA, INC.

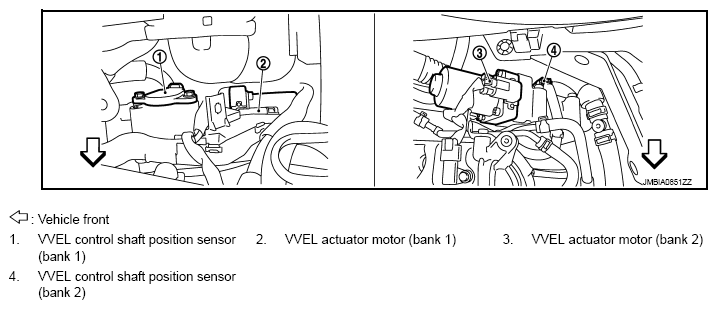

Fig 10: Identifying Intake Valve Timing Control Components (10 Of 21)

G08739772

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Intake Valve Timing Control Components (11 Of 21)

G08739773

Courtesy of NISSAN NORTH AMERICA, INC.

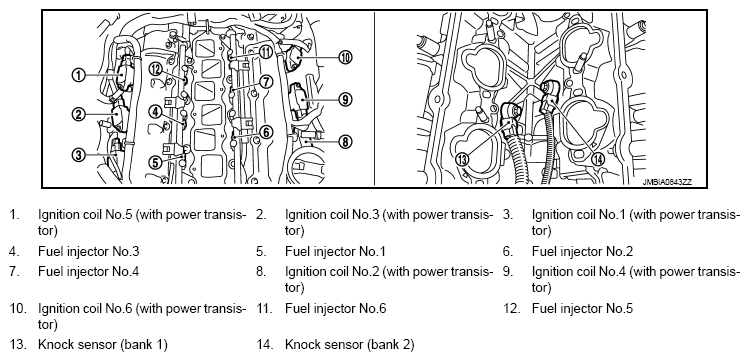

Fig 12: Identifying Intake Valve Timing Control Components (12 Of 21)

G08739774

Courtesy of NISSAN NORTH AMERICA, INC.

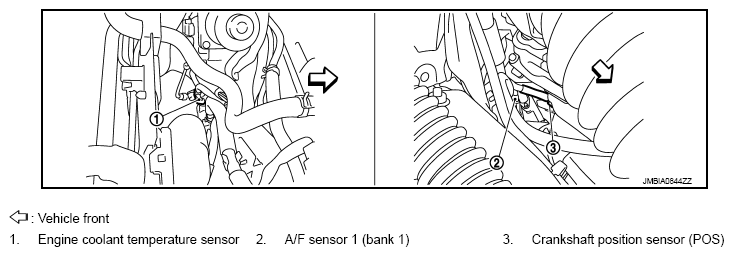

Fig 13: Identifying Intake Valve Timing Control Components (13 Of 21)

G08739775

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Intake Valve Timing Control Components (14 Of 21)

G08739776

Courtesy of NISSAN NORTH AMERICA, INC.

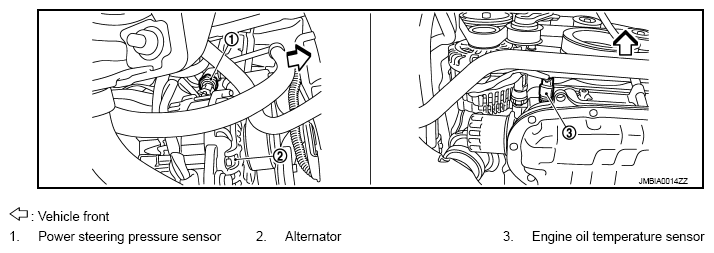

Fig 15: Identifying Intake Valve Timing Control Components (15 Of 21)

G08739777

Courtesy of NISSAN NORTH AMERICA, INC.

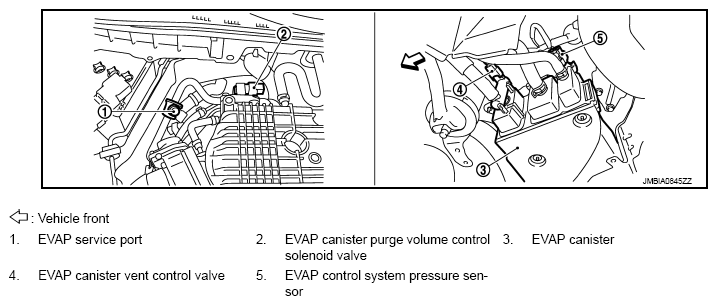

Fig 16: Identifying Intake Valve Timing Control Components (16 Of 21)

G08739778

Courtesy of NISSAN NORTH AMERICA, INC.

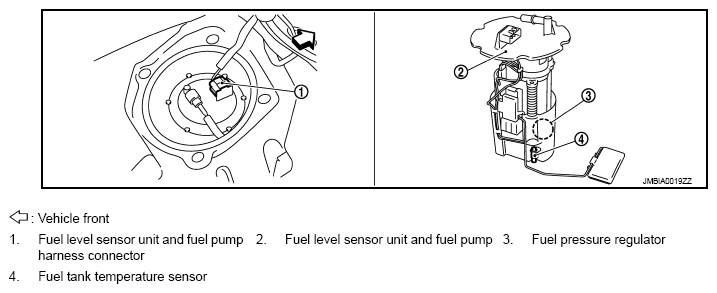

Fig 17: Identifying Intake Valve Timing Control Components (17 Of 21)

G08739779

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Intake Valve Timing Control Components (18 Of 21)

G08739780

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Intake Valve Timing Control Components (19 Of 21)

G08739781

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Intake Valve Timing Control Components (20 Of 21)

G08739782

Courtesy of NISSAN NORTH AMERICA, INC.

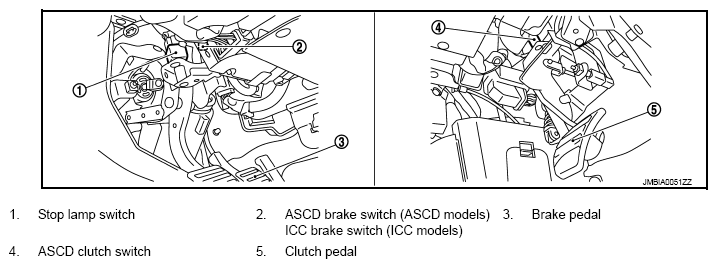

Fig 21: Identifying Intake Valve Timing Control Components (21 Of 21)

G08739783

Courtesy of NISSAN NORTH AMERICA, INC.
