Component Parts Location

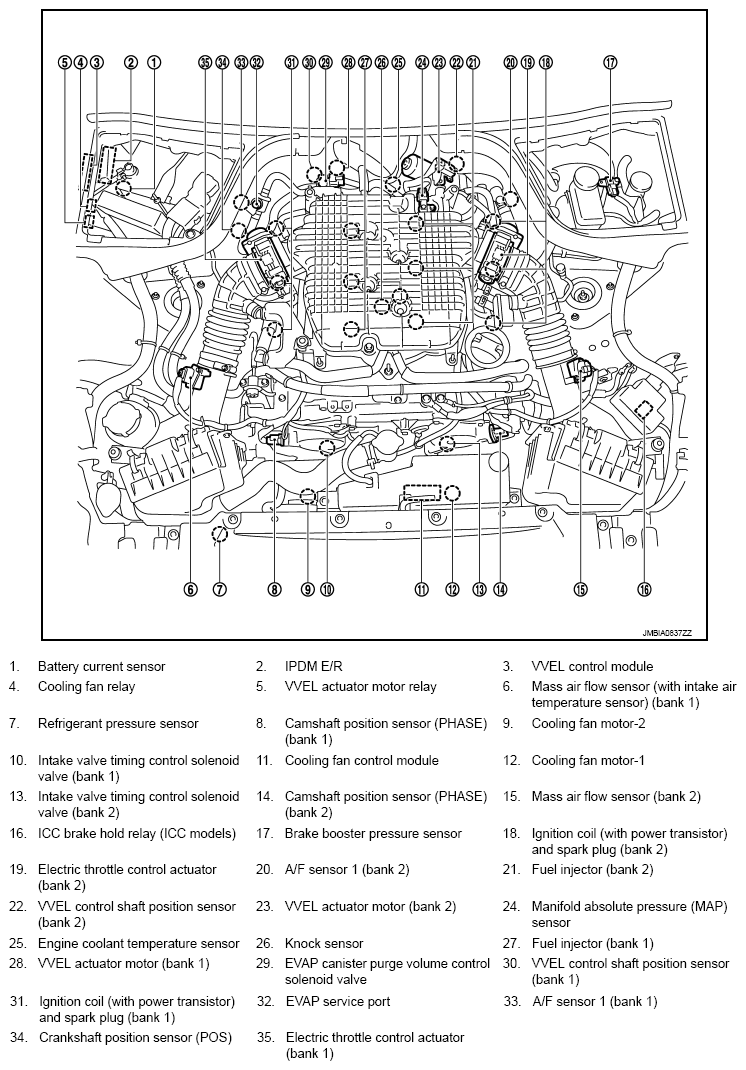

Fig 1: Identifying VVEL System Components Location (1 Of 21)

G08739786

Courtesy of NISSAN NORTH AMERICA, INC.

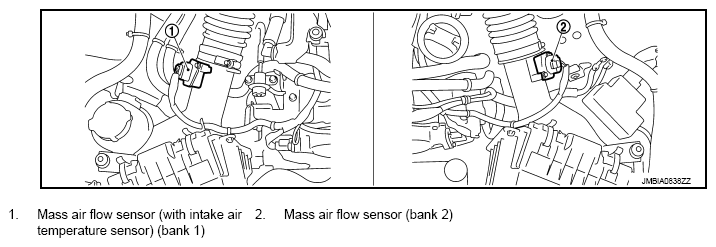

Fig 2: Identifying VVEL System Components Location (2 Of 21)

G08739787

Courtesy of NISSAN NORTH AMERICA, INC.

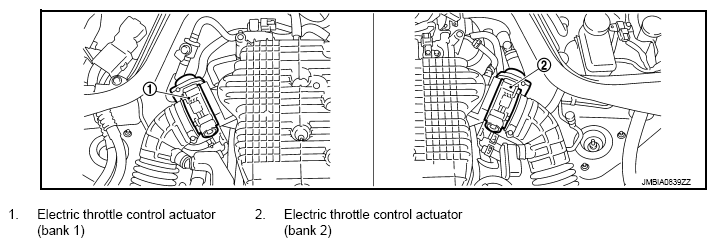

Fig 3: Identifying VVEL System Components Location (3 Of 21)

G08739788

Courtesy of NISSAN NORTH AMERICA, INC.

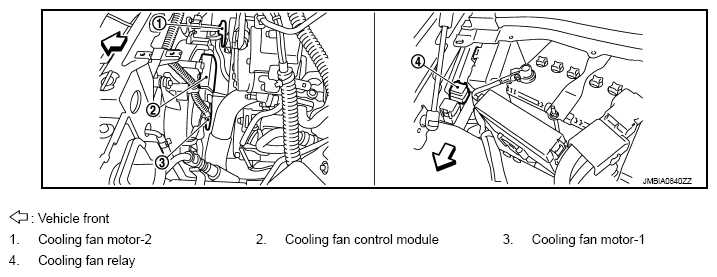

Fig 4: Identifying VVEL System Components Location (4 Of 21)

G08739789

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying VVEL System Components Location (5 Of 21)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

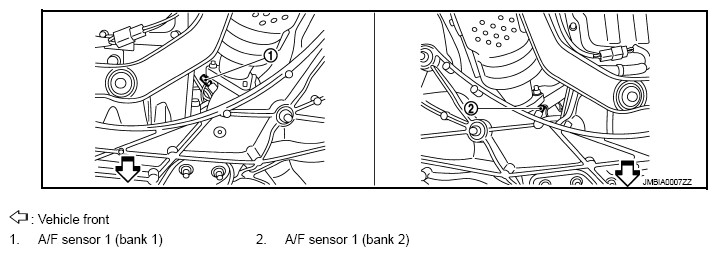

Fig 6: Identifying VVEL System Components Location (6 Of 21)

G08739791

Courtesy of NISSAN NORTH AMERICA, INC.

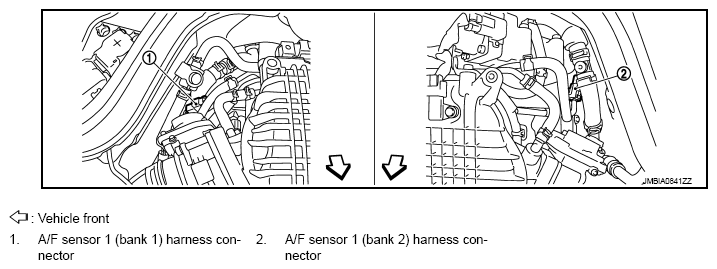

Fig 7: Identifying VVEL System Components Location (7 Of 21)

G08739792

Courtesy of NISSAN NORTH AMERICA, INC.

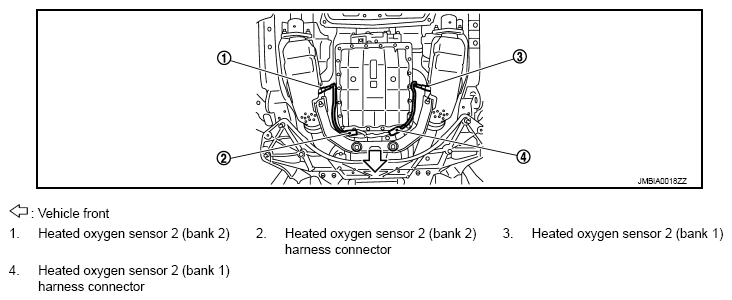

Fig 8: Identifying VVEL System Components Location (8 Of 21)

G08739793

Courtesy of NISSAN NORTH AMERICA, INC.

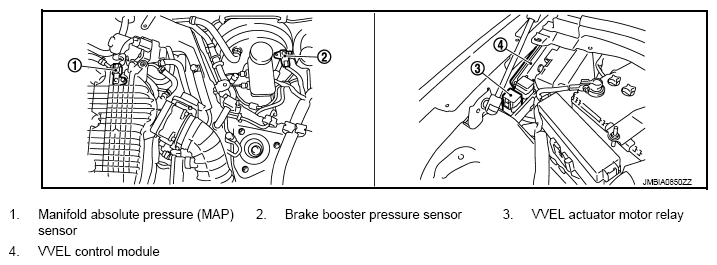

Fig 9: Identifying VVEL System Components Location (9 Of 21)

G08739794

Courtesy of NISSAN NORTH AMERICA, INC.

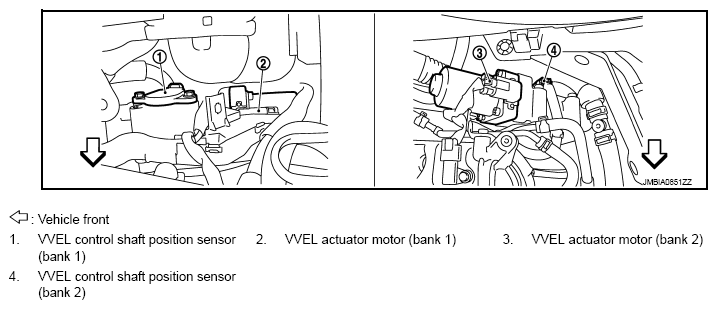

Fig 10: Identifying VVEL System Components Location (10 Of 21)

G08739795

Courtesy of NISSAN NORTH AMERICA, INC.

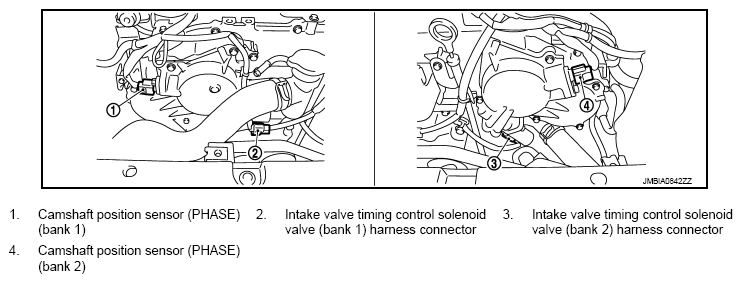

Fig 11: Identifying VVEL System Components Location (11 Of 21)

G08739796

Courtesy of NISSAN NORTH AMERICA, INC.

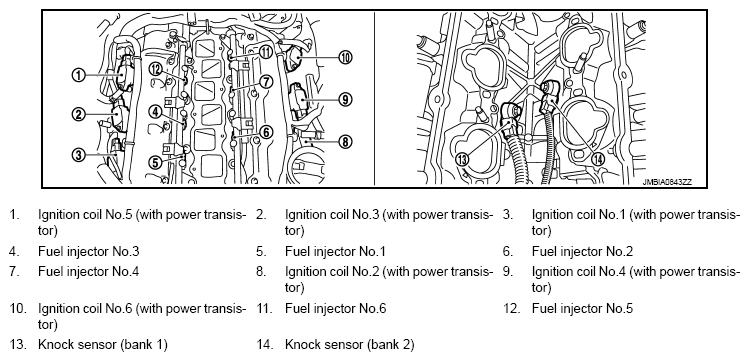

Fig 12: Identifying VVEL System Components Location (12 Of 21)

G08739797

Courtesy of NISSAN NORTH AMERICA, INC.

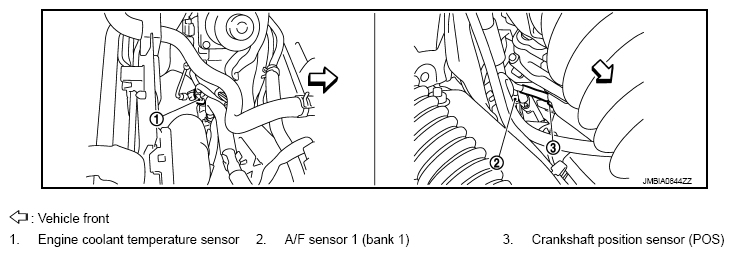

Fig 13: Identifying VVEL System Components Location (13 Of 21)

G08739798

Courtesy of NISSAN NORTH AMERICA, INC.

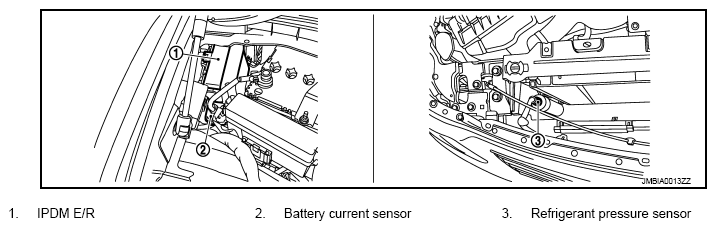

Fig 14: Identifying VVEL System Components Location (14 Of 21)

G08739799

Courtesy of NISSAN NORTH AMERICA, INC.

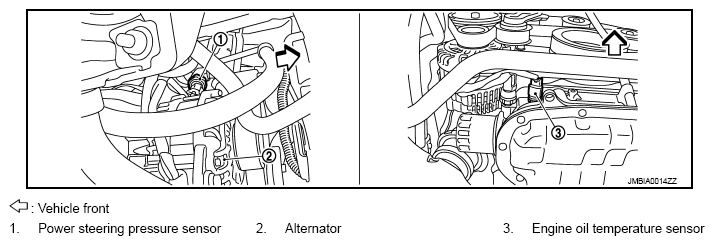

Fig 15: Identifying VVEL System Components Location (15 Of 21)

G08739800

Courtesy of NISSAN NORTH AMERICA, INC.

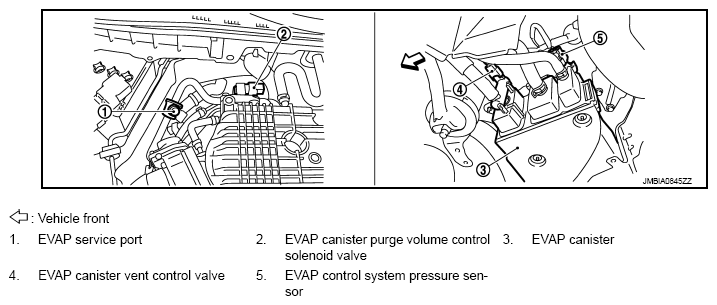

Fig 16: Identifying VVEL System Components Location (16 Of 21)

G08739801

Courtesy of NISSAN NORTH AMERICA, INC.

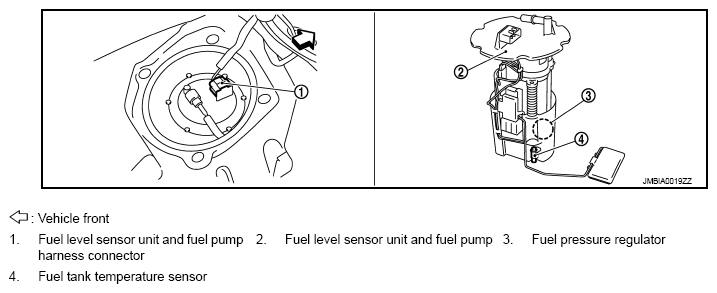

Fig 17: Identifying VVEL System Components Location (17 Of 21)

G08739802

Courtesy of NISSAN NORTH AMERICA, INC.

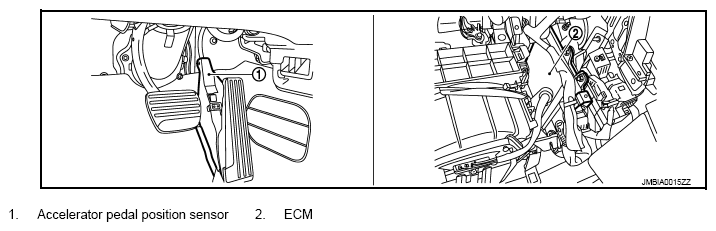

Fig 18: Identifying VVEL System Components Location (18 Of 21)

G08739803

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying VVEL System Components Location (19 Of 21)

G08739804

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying VVEL System Components Location (20 Of 21)

G08739805

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying VVEL System Components Location (21 Of 21)

G08739806

Courtesy of NISSAN NORTH AMERICA, INC.
