Removal and Installation: Removal

  1. Remove the front door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1).

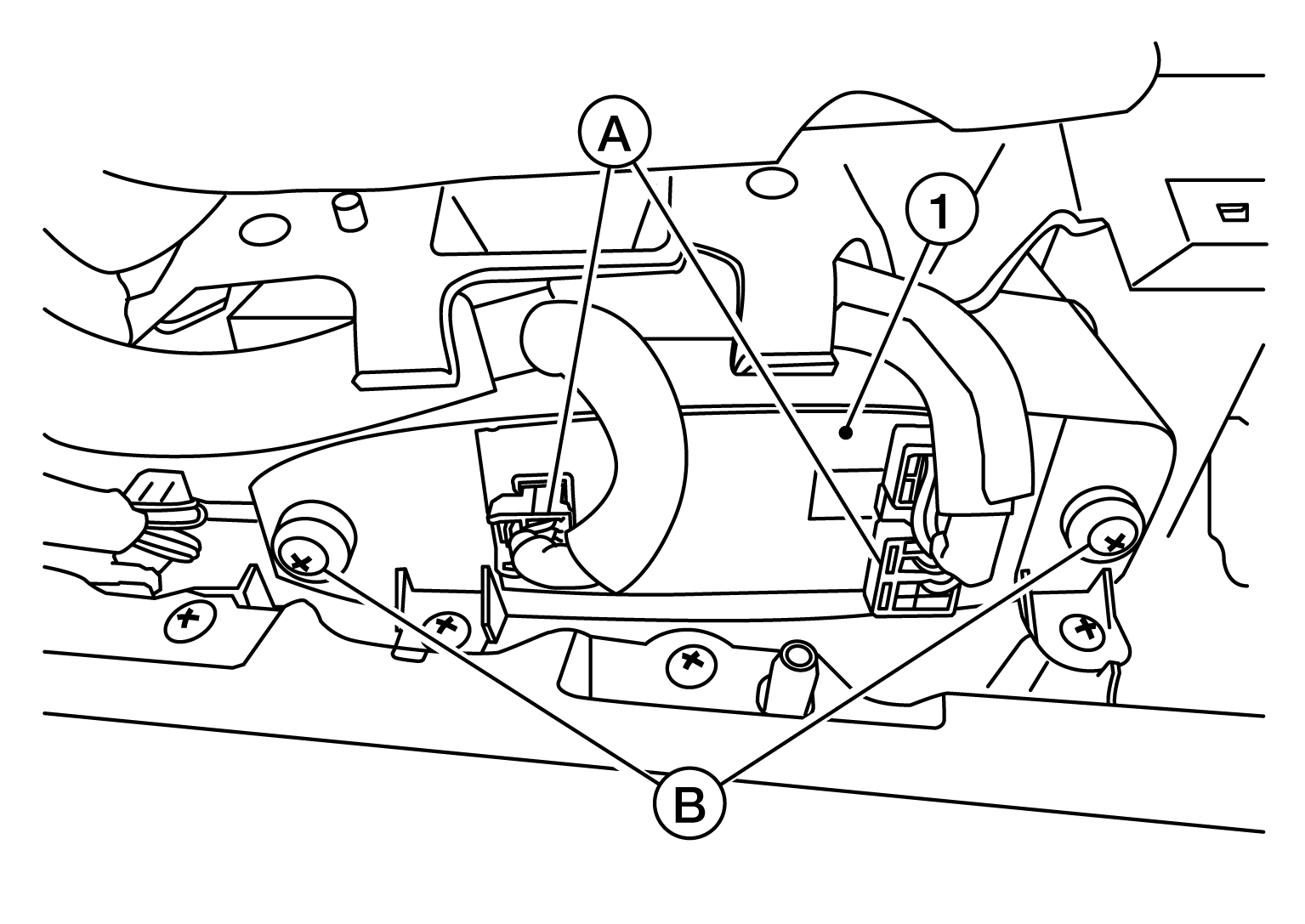

    Fig 1: Locating Main Power Window And Door Lock/Unlock Switch, Connectors And Screws
    G08852141Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove two screws (B) and remove main power window and door lock/unlock switch (1) and finisher as an assembly.
  4. Release pawls then separate main power window and door lock/unlock switch from switch finisher.
