Fuel Pressure Release

With CONSULT

1. Turn ignition switch ON.
2. Perform "FUEL PRESSURE RELEASE " in "WORK SUPPORT" mode with CONSULT.
3. Start engine.
4. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
5. Turn ignition switch OFF.

Without CONSULT

1. Remove fuel pump fuse (2) located in IPDM E/R (1).

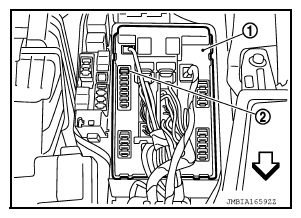

   Fig 1: Locating Fuel Pump Fuse And IPDM E/R

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Start engine.
3. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
