INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram

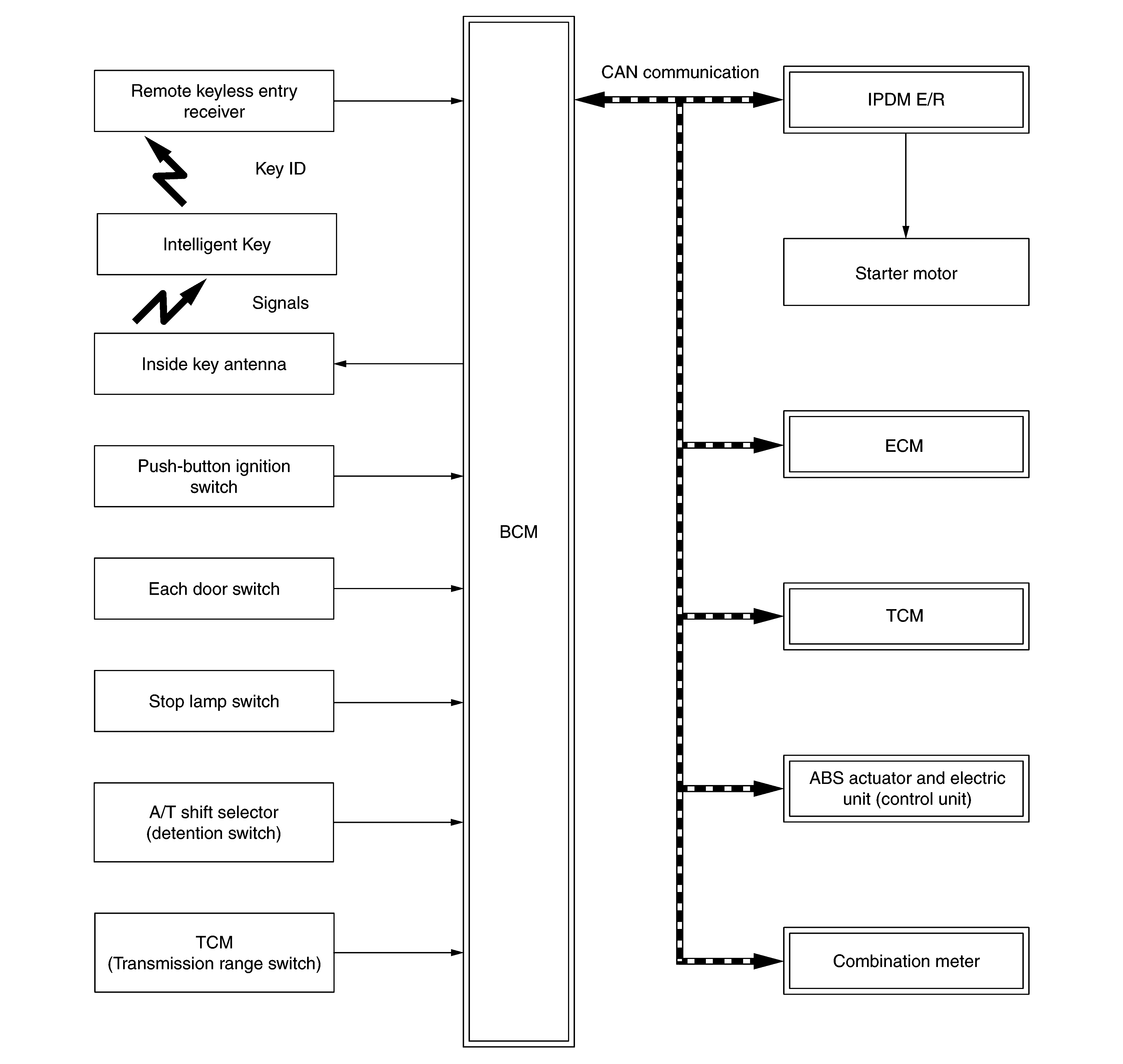

Fig 1: Intelligent Key System/Engine Start Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
