Body Compartment

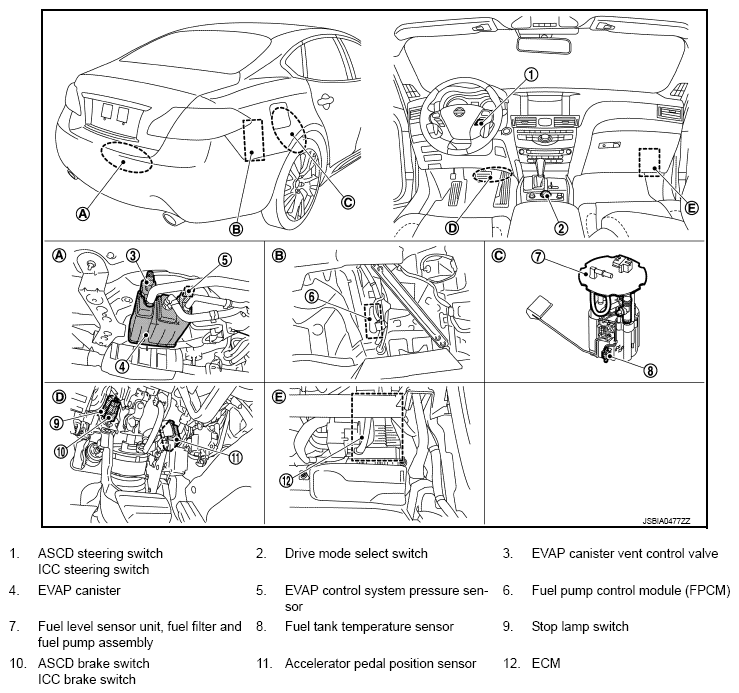

Fig 1: Identifying Body Compartment Components
G08896962Courtesy of NISSAN NORTH AMERICA, INC.
