ENGINE CONTROL SYSTEM: Component Parts Location
>>
Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment

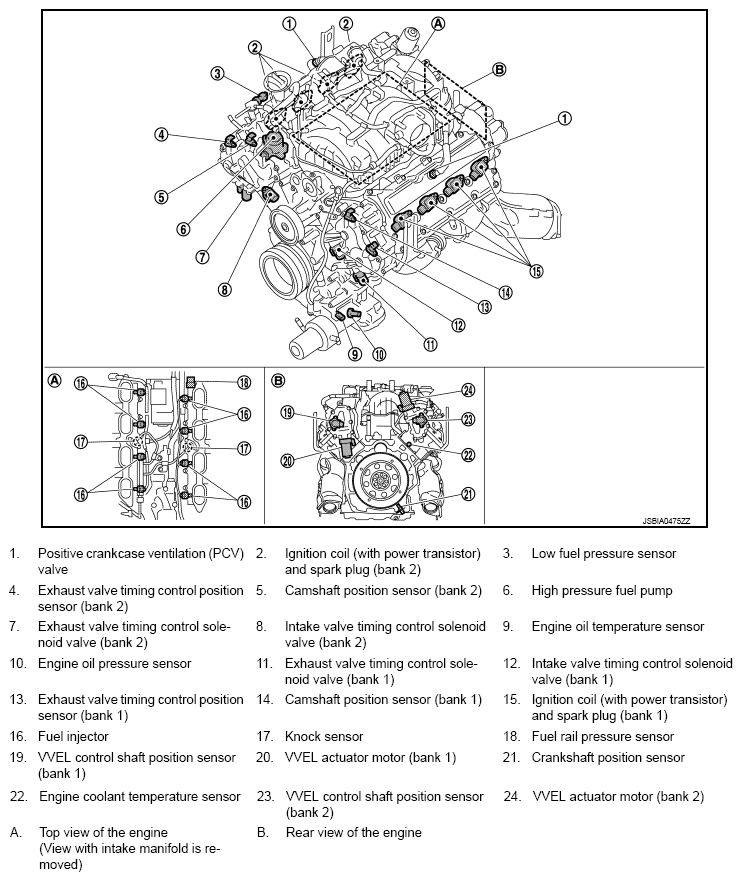

Fig 1: Identifying Engine Compartment Components
Courtesy of NISSAN NORTH AMERICA, INC.
