Engine Control System (Introduction)
>>
System Description
>>
Component Parts
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: Component Parts Location
>>
Engine Room Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Room Compartment

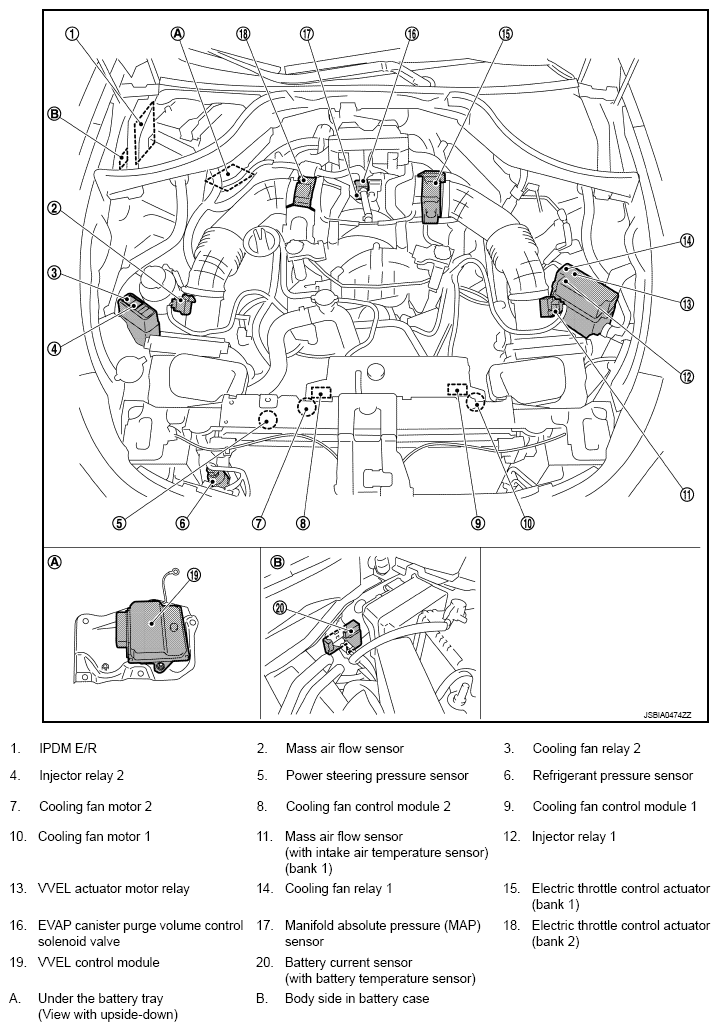

Fig 1: Identifying Engine Room Compartment Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
