Exhaust Compartment

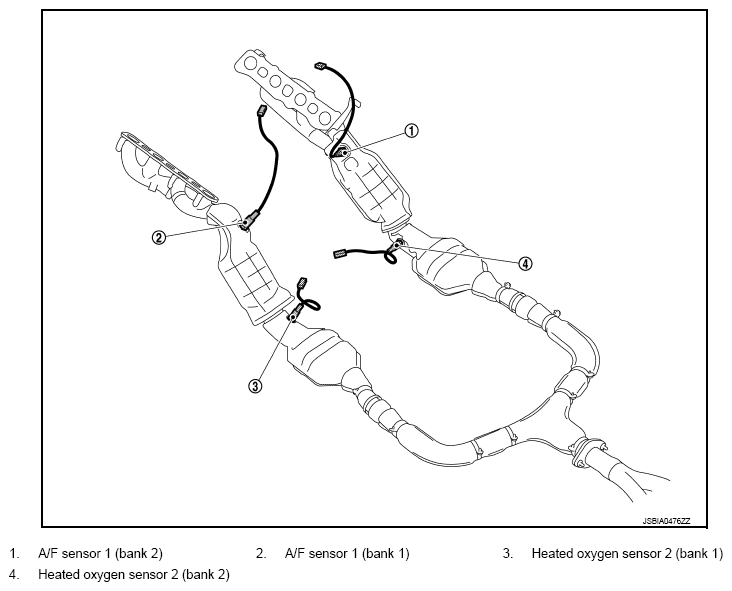

Fig 1: Identifying Exhaust Compartment Components
G08896961Courtesy of NISSAN NORTH AMERICA, INC.
