Fuel Injector

For the fuel injector, a high pressure fuel injector is used and this enables a high-pressure fuel injection at a high voltage within a short time. The ECM is equipped with an injector driver unit and actuates the fuel injector at a high voltage (approximately 65 V at the maximum).

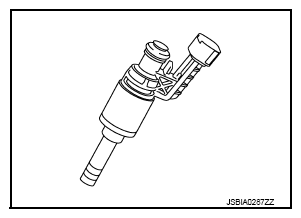

Fig 1: Identifying Fuel Injector
G08896985Courtesy of NISSAN NORTH AMERICA, INC.
