Component Function Check

Turn ignition switch to START.

Are any cylinders ignited?

YES: GO TO 2.

NO: Proceed to "DIAGNOSIS PROCEDURE ".

WITH CONSULT

1. Start engine.
2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
3. Check that each circuit produces a momentary engine speed drop.

WITHOUT CONSULT

1. Start engine.
2. Listen to each fuel injector operating sound.

   Clicking sound should be heard.

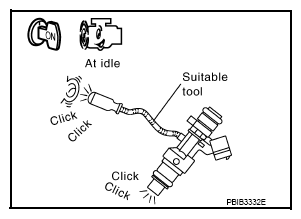

   Fig 1: Checking Fuel Injector

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: Proceed to "DIAGNOSIS PROCEDURE ".
