With Consult

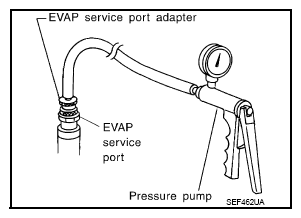

- To locate the EVAP leak, install EVAP service port adapter (commercial service tool) and pressure pump to EVAP service port.
- Turn ignition switch ON.
- Select the "EVAP SYSTEM CLOSE" of "WORK SUPPORT" mode with CONSULT.
- Touch "START". A bar graph (Pressure indicating display) will appear on the screen.
- Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar graph.
- Remove EVAP service port adapter (commercial service tool) and hose with pressure pump.

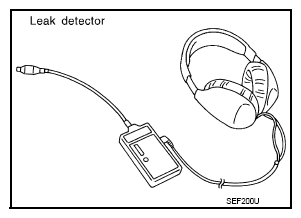

- Locate the leak using a leak detector (commercial service tool). Refer to
"EVAPORATIVE EMISSION SYSTEM: SYSTEM DIAGRAM
".
