Removal and Installation: Removal

  1. Remove hoodledge cover (RH) and cowl top cover (RH). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the battery and battery tray. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove VVEL control module bracket bolts (A).
  4. Remove the ground harness fix bolt (B).
  5. Remove VVEL control module bracket (1).

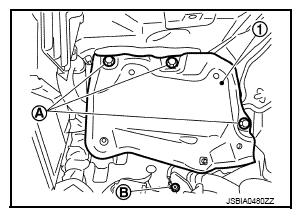

    Fig 1: Identifying VVEL Control Module Bracket And Mounting Bolts
    G08897236Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect VVEL control module harness connector.
  7. Remove the fix bolts (A). And then separate VVEL control module (1), ground harness (2) and VVEL control module bracket (3).

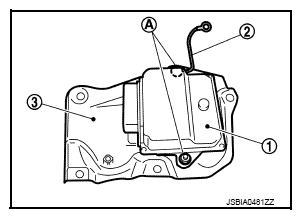

    Fig 2: Identifying VVEL Control Module, Bracket And Mounting Bolts
    G08897237Courtesy of NISSAN NORTH AMERICA, INC.
