Fuel Injection Timing

Sequential Direct Injection Gasoline System

Fuel is injected into each cylinder during each engine cycle according to the ignition order.

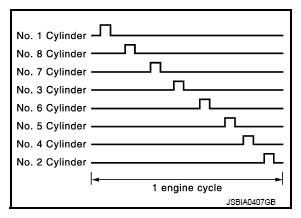

Fig 1: Fuel Injection Timing Pattern

Courtesy of NISSAN NORTH AMERICA, INC.
