Component Parts Location

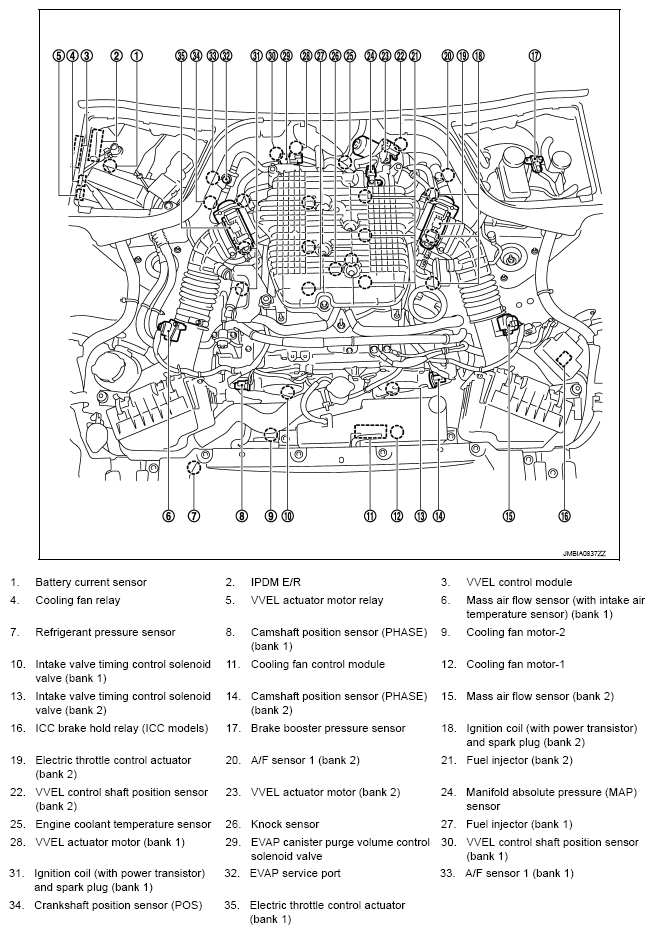

Fig 1: Air Conditioning Cut Control System Component Parts Location (1 Of 20)

G09465200

Courtesy of NISSAN NORTH AMERICA, INC.

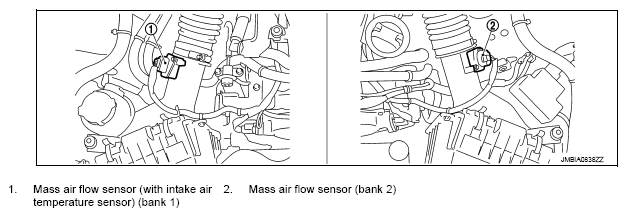

Fig 2: Air Conditioning Cut Control System Component Parts Location (2 Of 20)

G09465201

Courtesy of NISSAN NORTH AMERICA, INC.

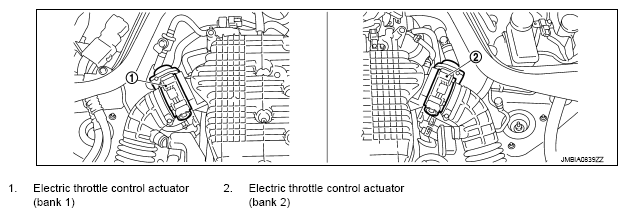

Fig 3: Air Conditioning Cut Control System Component Parts Location (3 Of 20)

G09465202

Courtesy of NISSAN NORTH AMERICA, INC.

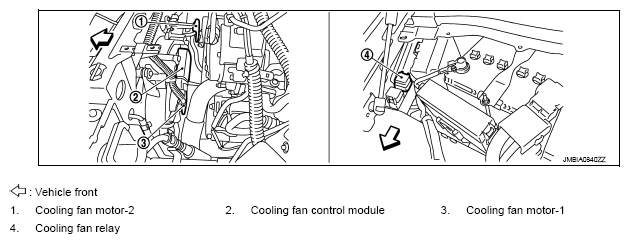

Fig 4: Air Conditioning Cut Control System Component Parts Location (4 Of 20)

G09465203

Courtesy of NISSAN NORTH AMERICA, INC.

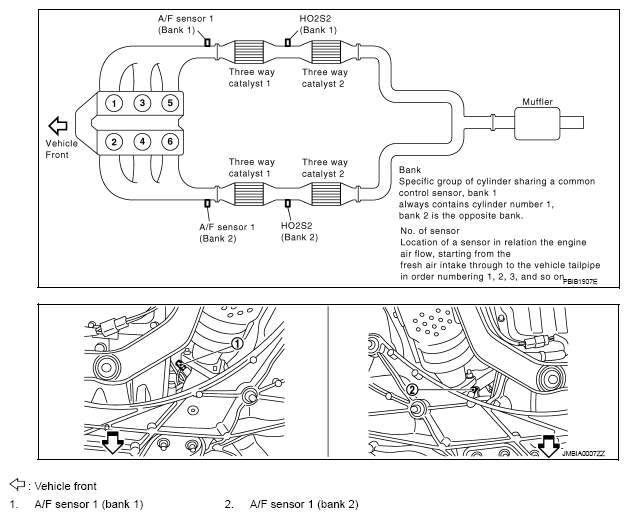

Fig 5: Air Conditioning Cut Control System Component Parts Location (5 Of 20)

G09465204

Courtesy of NISSAN NORTH AMERICA, INC.

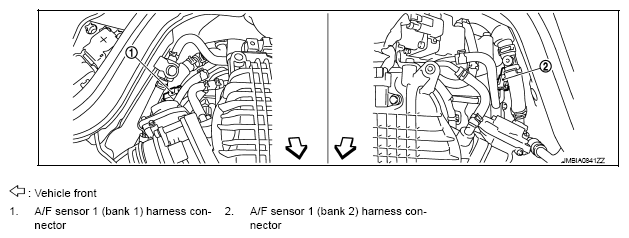

Fig 6: Air Conditioning Cut Control System Component Parts Location (6 Of 20)

G09465205

Courtesy of NISSAN NORTH AMERICA, INC.

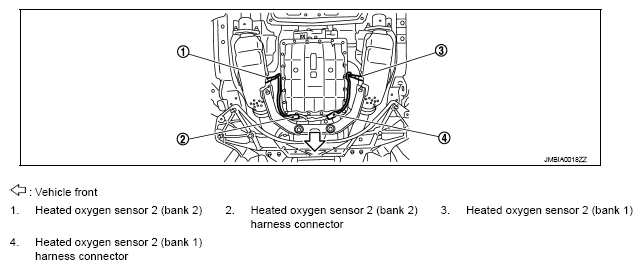

Fig 7: Air Conditioning Cut Control System Component Parts Location (7 Of 20)

G09465206

Courtesy of NISSAN NORTH AMERICA, INC.

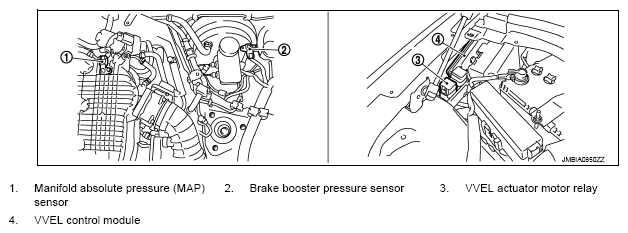

Fig 8: Air Conditioning Cut Control System Component Parts Location (8 Of 20)

G09465207

Courtesy of NISSAN NORTH AMERICA, INC.

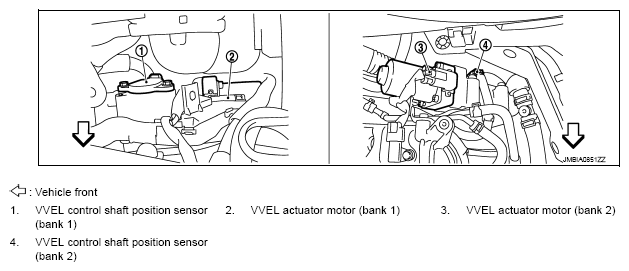

Fig 9: Air Conditioning Cut Control System Component Parts Location (9 Of 20)

G09465208

Courtesy of NISSAN NORTH AMERICA, INC.

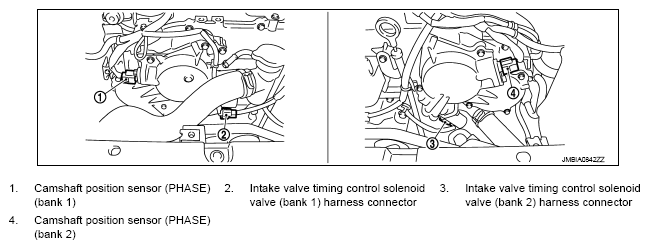

Fig 10: Air Conditioning Cut Control System Component Parts Location (10 Of 20)

G09465209

Courtesy of NISSAN NORTH AMERICA, INC.

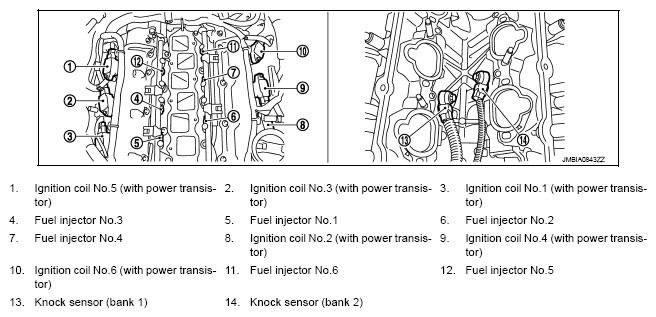

Fig 11: Air Conditioning Cut Control System Component Parts Location (11 Of 20)

G09465210

Courtesy of NISSAN NORTH AMERICA, INC.

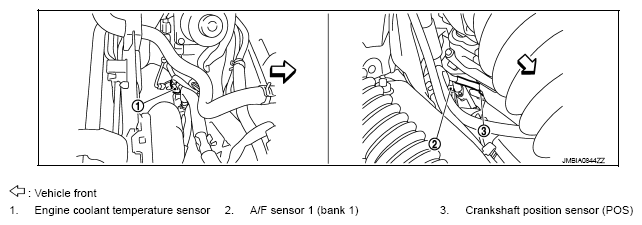

Fig 12: Air Conditioning Cut Control System Component Parts Location (12 Of 20)

G09465211

Courtesy of NISSAN NORTH AMERICA, INC.

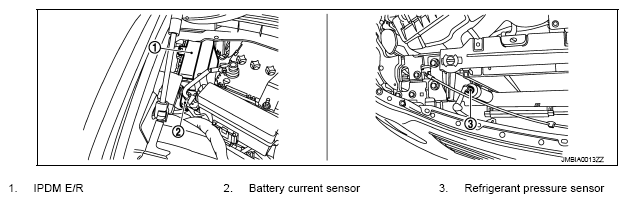

Fig 13: Air Conditioning Cut Control System Component Parts Location (13 Of 20)

G09465212

Courtesy of NISSAN NORTH AMERICA, INC.

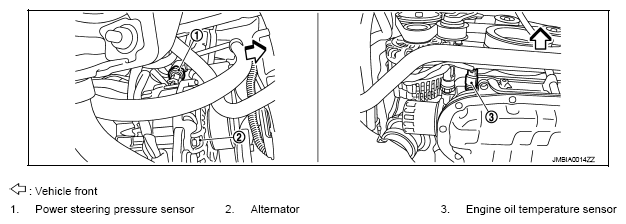

Fig 14: Air Conditioning Cut Control System Component Parts Location (14 Of 20)

G09465213

Courtesy of NISSAN NORTH AMERICA, INC.

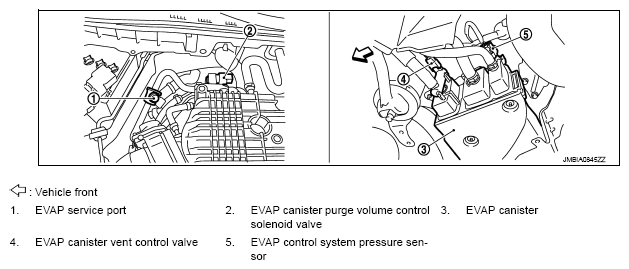

Fig 15: Air Conditioning Cut Control System Component Parts Location (15 Of 20)

G09465214

Courtesy of NISSAN NORTH AMERICA, INC.

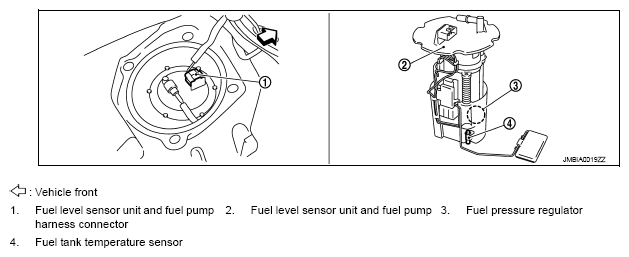

Fig 16: Air Conditioning Cut Control System Component Parts Location (16 Of 20)

G09465215

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Air Conditioning Cut Control System Component Parts Location (17 Of 20)

G09465216

Courtesy of NISSAN NORTH AMERICA, INC.

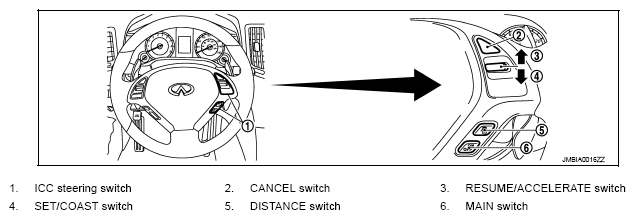

Fig 18: Air Conditioning Cut Control System Component Parts Location (18 Of 20)

G09465217

Courtesy of NISSAN NORTH AMERICA, INC.

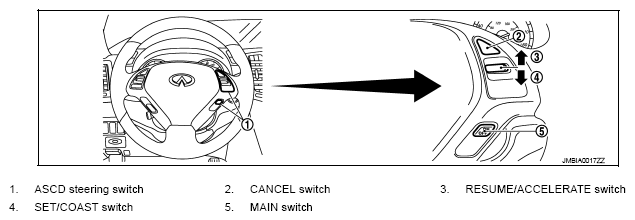

Fig 19: Air Conditioning Cut Control System Component Parts Location (19 Of 20)

G09465218

Courtesy of NISSAN NORTH AMERICA, INC.

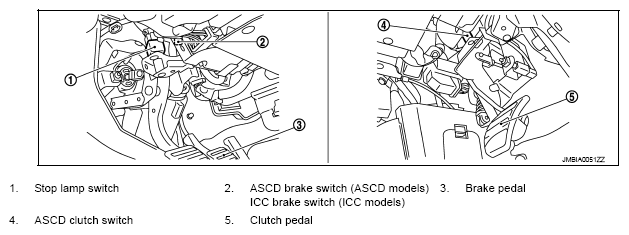

Fig 20: Air Conditioning Cut Control System Component Parts Location (20 Of 20)

G09465219

Courtesy of NISSAN NORTH AMERICA, INC.
